PG-PON82 FTTH Fiber optic equipment power meter test 1310/1490/1550nm with vfl
Product Parameters
|
PG-PON82 Handheld PON Optical Power Meter Cable Tester |
|||
|
PON module |
1310 upstream measurement |
1490 downstream measurement |
1550 downstream measurement |
|
Pass Zone(nm) |
1260nm~1360nm |
1470nm~1505nm |
1535nm~1570nm |
|
MeasurementRange(dBm) |
-40dBm~+8dBm |
-40dBm~+12dBm |
-40dBm~+20dBm |
|
Output power(max) |
15dBm |
15dBm |
25dBm |
|
Isolation |
>40dB |
>40dB |
>40dB |
|
Burst mode measurement error |
<±0.5dB |
||
|
Measurement Accuracy |
|||
|
Connatural uncertainty(dB) |
±0.5dB |
||
|
Linearity(dB) |
±0.1dB |
||
|
Passing through insertion Loss(dB) |
<1.5dB |
||
|
General Information |
|||
|
Detector Type |
InGaAs |
||
|
Optical Connector |
FC/SC/ST Interchangeable/2.5 universal adapter |
||
|
Fiber Type |
SM 9/125um |
||
|
Measurement Unit |
dB/dBm/xW |
||
|
Resolution (dB) |
|||
|
DC 3.3V~5.5V |
|||
|

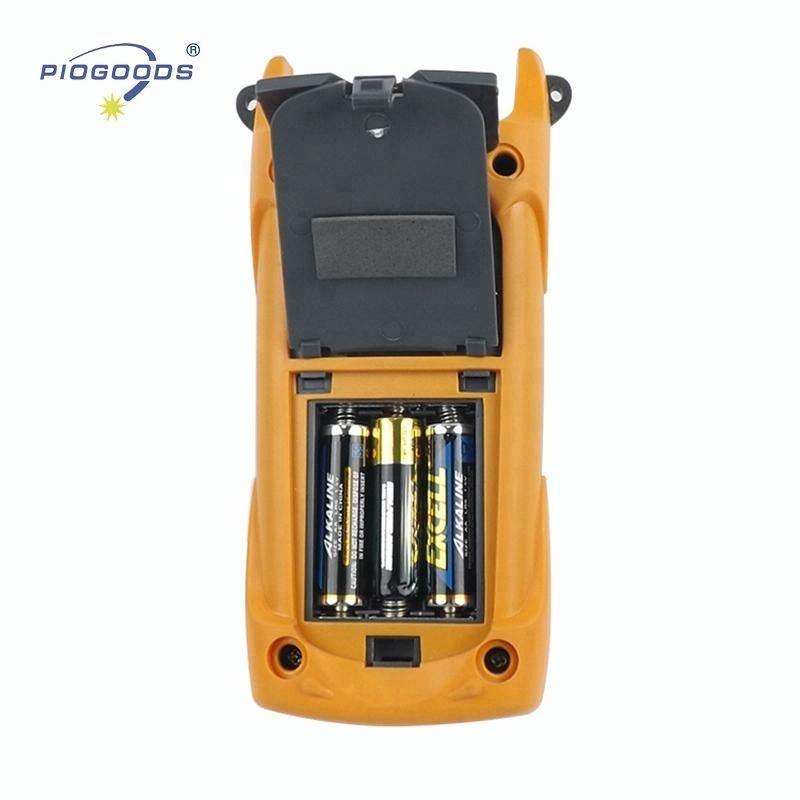

Power Supply |
|||
|
Continuously Operation time (h) |
PON:90h |
||
|
Operation Temperature(℃) |
-10℃~60℃ |
||
|
Storage temperature(℃) |
-25℃~70℃ |
||
|
Weight(kg) |
423g |
||
Product Selling Points
Comfortable Dust-Proof Button
Lightness, Comfort, Dustproof, Durable…
PG-PON82 PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.
Features:
1. It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
2. Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm ).
3. Used in Burst mode measurement of 1310nm upstream.
4. Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
5. USB communication port enables data transfer to a PC.1000 measurement item.
can be saved in PG-PON82 PON power meter or computer for data review.
6. With optical power meter modual, With visual fault locator modual.
7. Optional Chinese/English display.
8. Offers up to 10 different threshold sets in total. Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
9. 10 minutes Auto-off function can be activated or deactivated .
10. Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
11. Different models corresponding to different function, according to own use to choose.
