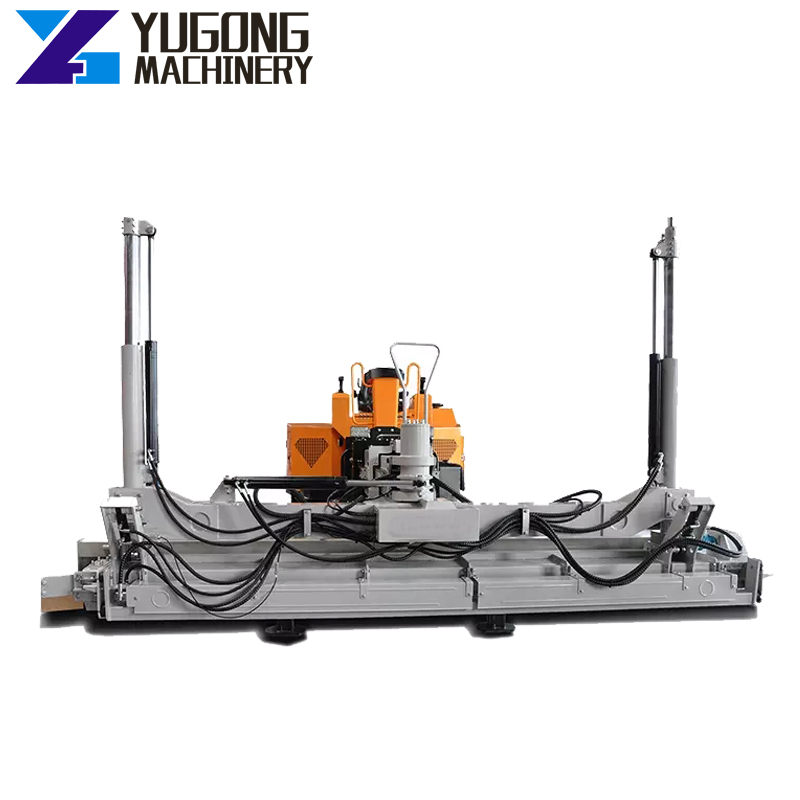

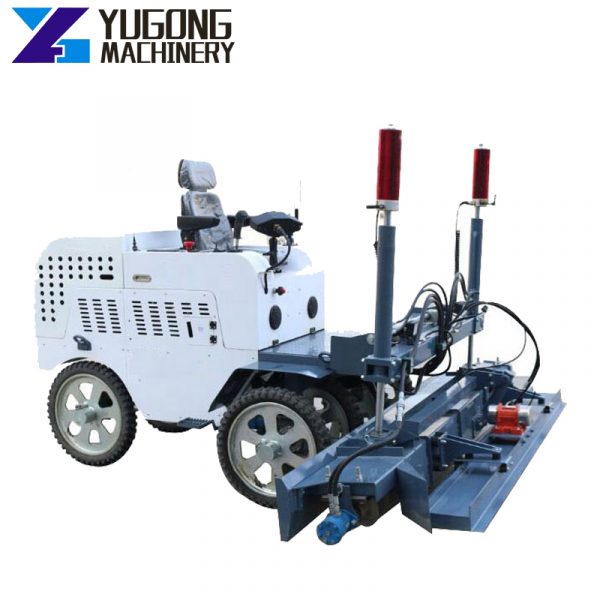

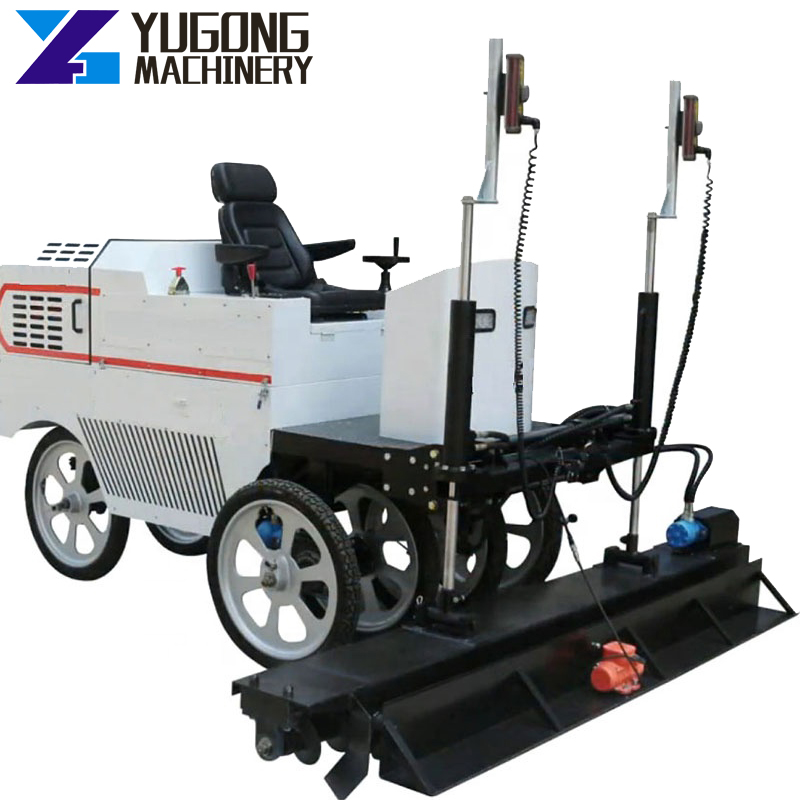

Description Laser Concrete Leveling Machine

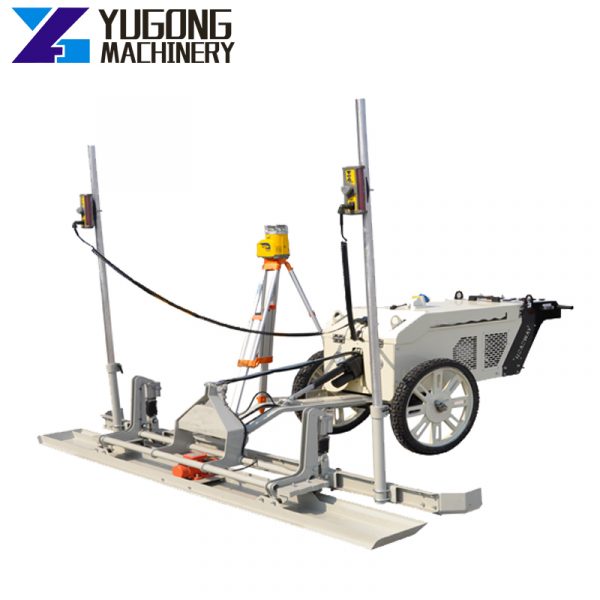

Laser screed series could greatly improve the concrete smoothness and compaction.as well as prolong the service life of concrete floor. Walk-behind two wheels concrete laser leveling machine, mainly used in large area concrete construction, such as workshop, supermarket, warehouse, airport, playground and so on. This laser screed can satisfy the construction requirment of large area and high planeness and levelness.
Features of Laser Concrete Leveling Machine
1. Use high accuracy laser device, close loop control technology and precision integrated hydraulic system, and microcomputer automatic control.
2. Screed assembly is hydraulic controlled. Integrated with laser system and computer control system, the machine will self-level and finish the screeding work with high efficiency.
3. The Laser transmitter which measures the elevation is independent, located, so there is no worry about the accumulative error. Compared with the traditional way, the construction joints will be greatly reduced, so the maintenance cost and slab use will be down greatly.
4. The flat and dual slope can be fully automatic controlled by the transmitter. For the complex floor which has high requirement for drainage, the 3-D floor processing system can be used.
5. The forward-seated operation can widen operator vision, reduce the labor intensity and improve working efficiency
6. Steering, forward and reverse of the machine are all controlled by the integrated handles. Operation buttons and controller which are located on the one side of the seat, is user-friendly.
7. The machine with solid puncture-proof tire can do the screeding on the mat reinforcement.
8. The high-pressure cleaning system, can easily remove the concrete on the machine to insure the normal use and prolong the service life.
Technical Parameter Of Concrete Leveing Machine
|
Model |
YGJX31 |
YGJX32 | YGJX33 | YGJX34 |
|
Engine |
||||
|
Model |
generator set |
GX390 Electric start |
GX390 Electric start |
GX390 Electric start |
|
Power |
2.0kW |
13hp/3600rpm |
13hp/3600rpm |
13hp/3600rpm |
|
Fuel tank (L) |
14.5 |
6.5 |
6.5 |
6.5 |
|
Running device |
||||
|
Drive |
Motor |
Hydraulic motor |
Hydraulic motor |
Hydraulic motor |
|
Running mode |
Infinitely variable speed |
Handle control, stepless speed |
Handle control, stepless speed |
Handle control, stepless speed |
|
Running speed(m/min) |
0-36 |
0-45 |
0-65 |
0-45 |
|
Suggest working speed(m/min) |
5 |
5 |
5 |
5 |
|
Screed head |
||||
|
Type |
Self-levelling |
Electric control, self-leveling |
self-leveling |
Hydraulic control, self-leveling |
|
Width |
2500mm |
2500mm |
2500mm |
2500mm |
|
Exciting force |
500N |
500N |
500N |
500N |
|
Vibration frequency |
50Hz |
50Hz |
50Hz |
50Hz |
|
Laser control system |
||||
|
Control type |
Microcomputer laser scan |
Microcomputer laser scan |
Microcomputer laser scan |
Microcomputer control |
|
Operation mode |
Walk-behind |
Walk-behind |
Walk-behind |
Walk-behind |
|
Forward and reverse |
Hand grip control, stepless speed walking |
Hydraulic control |
Hand grip control, stepless speed walking |
Hydraulic control |
|
Size and weight |
||||
|
Working size(mm) |
2758*2622*1980 |
2740×2659×1980 |
2578×2643×1980 |
2780*2622*1980 |
|
Weight(kg) |
295 |
365 |
380 |
410 |
Details of Laser Concrete Leveling Mahcine
The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high flatness and levelness.
Packaging Details
1. Out package: Standard marine export plwywood cases;
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Delivery Time
Within one week
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
