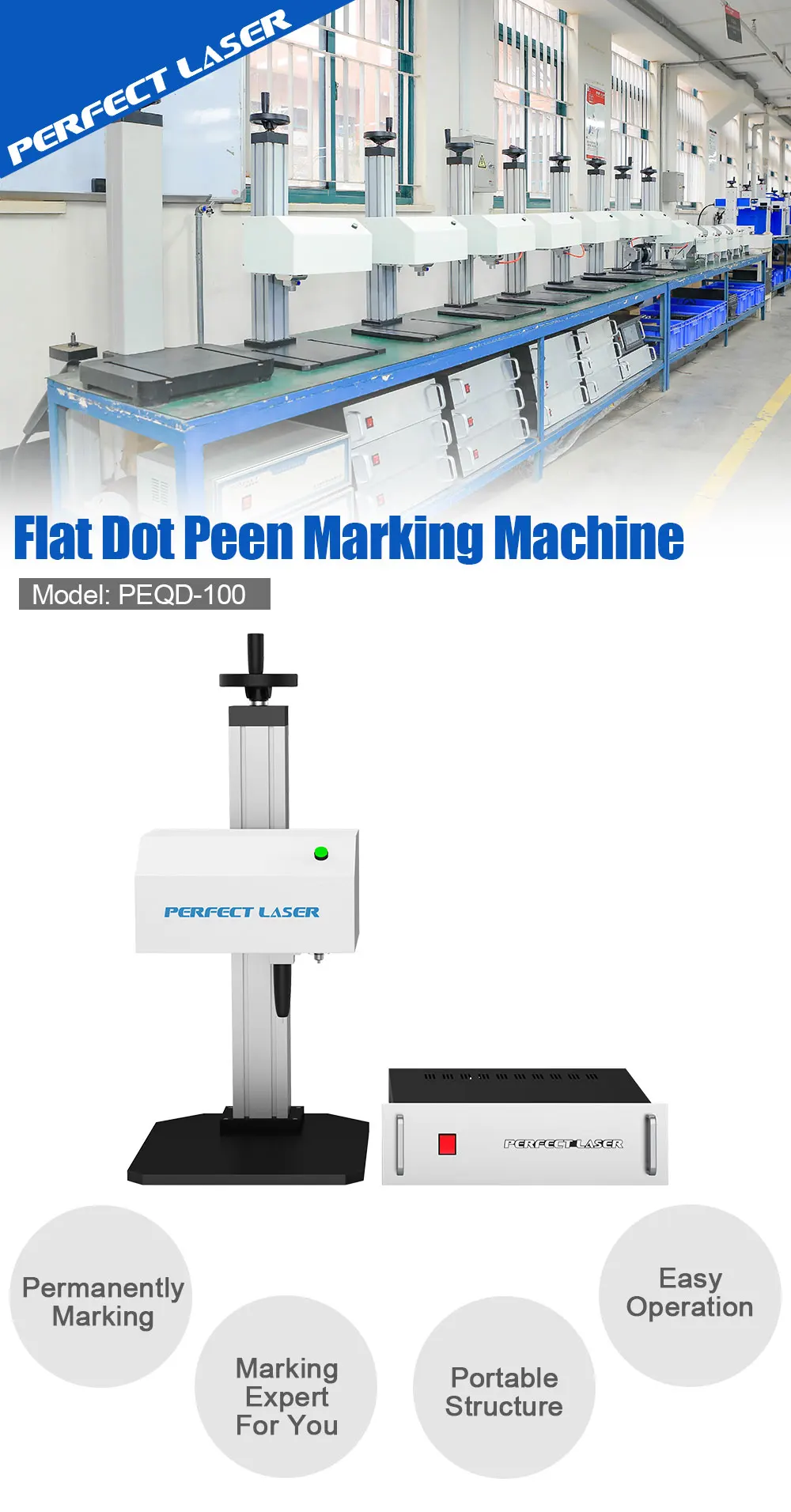

Perfect laser-Vin Code Dot Peen Pen Pin CNC Portable Handheld Pneumatic Marking Machine
(Model: PEQD-100)
Contact: Anny
MP /Whatsapp: 0086 13659896178 Email: sales03@perfectlaser.net
MP /Whatsapp: 0086 13659896178 Email: sales03@perfectlaser.net
Product Description
Our PEQD-100 Pneumatic Dot Peen Marking Machine is suitable for flat marking on metals and some hard plastics . The Pneumatic Dot Peen Marking Machine is an industrial marking machine which can make permanently logo,letters,numbers,graph and date on workpiece with direct part marking.

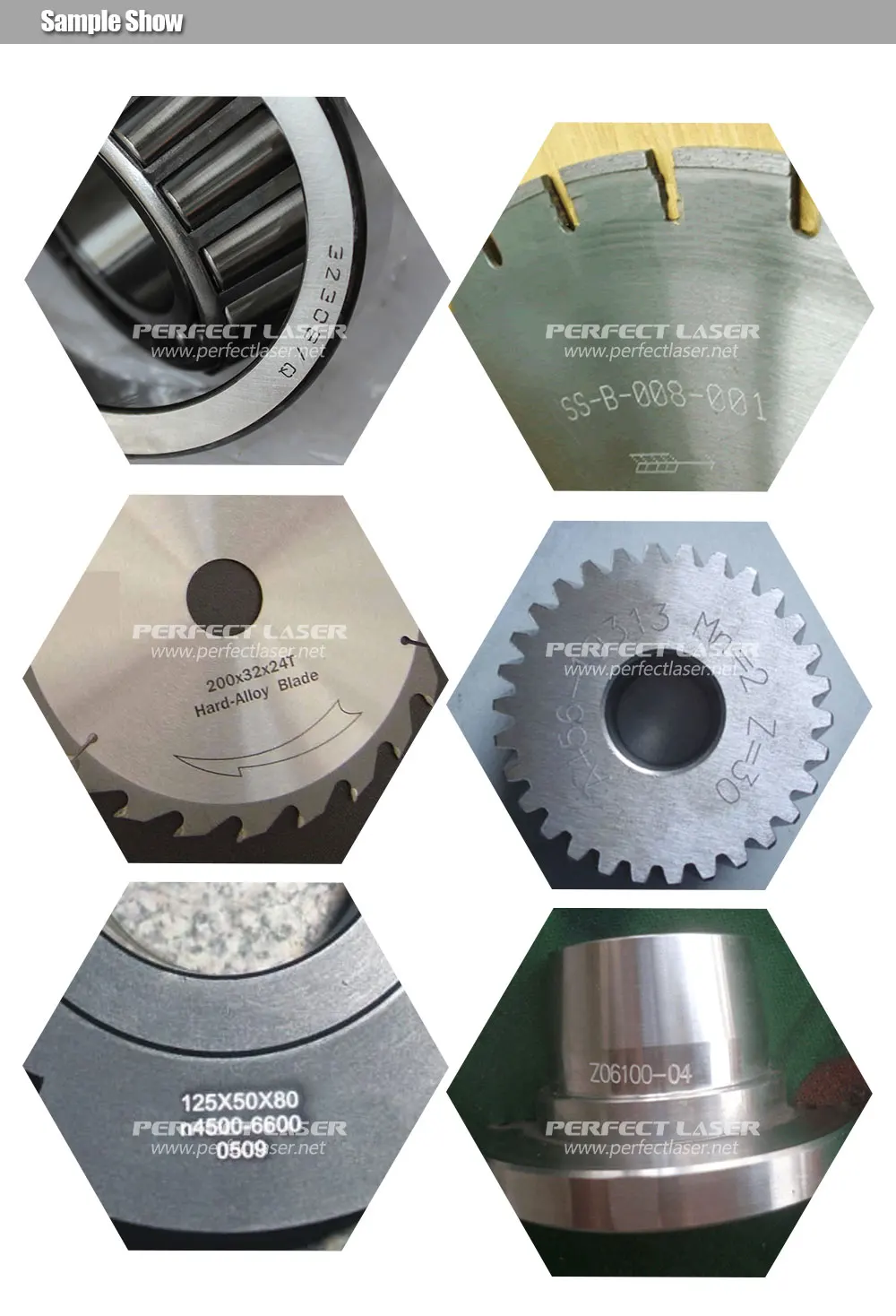

Marking Samples
Direct part mark Can be used for connecting rods, engines, various mechanical parts, machine tools, hardware products, various metal signs, metal pipe fittings, gears, pumps, valves, solid parts and a variety of hard plastic products surface numbering, name, trademark logo etc.
Features
1.This machine takes complete LCD control; system, integrates PC, and control system into one unit, no need to connect computer, with smaller size which can save space, easier to operate and high efficiency.
2.The processed letters, words, or graphics can be saved in a U disk, then input to the machine, and the machine can work offline without computer, more convenient to operate and working efficiency much enhanced.
3.Applying the most widely used up-down lifting structure to realize multi-functions.
The software is with powerful edit function, can layout any kind of character and graphics, and is compatible with AutoCAD software.
4.It can mark any logo ( Character, letter and graph, date code, series number, VIN code, engine number) automatically, support logos and graphs designed in DXF format from AutoCAD, CorelDraw, and multi-kinds font such as MG font , SHX Font in AutoCAD CHR in Borland, and TTF in Windows
5.It can be used online to share the database and date transmission without any equipment, such as match with electronic scales, bar code machines, leak detectors and other equipment
6.Easy to maintenance, widely adaptability, can work in any environment, widely used in many fields.
2.The processed letters, words, or graphics can be saved in a U disk, then input to the machine, and the machine can work offline without computer, more convenient to operate and working efficiency much enhanced.
3.Applying the most widely used up-down lifting structure to realize multi-functions.
The software is with powerful edit function, can layout any kind of character and graphics, and is compatible with AutoCAD software.
4.It can mark any logo ( Character, letter and graph, date code, series number, VIN code, engine number) automatically, support logos and graphs designed in DXF format from AutoCAD, CorelDraw, and multi-kinds font such as MG font , SHX Font in AutoCAD CHR in Borland, and TTF in Windows
5.It can be used online to share the database and date transmission without any equipment, such as match with electronic scales, bar code machines, leak detectors and other equipment
6.Easy to maintenance, widely adaptability, can work in any environment, widely used in many fields.

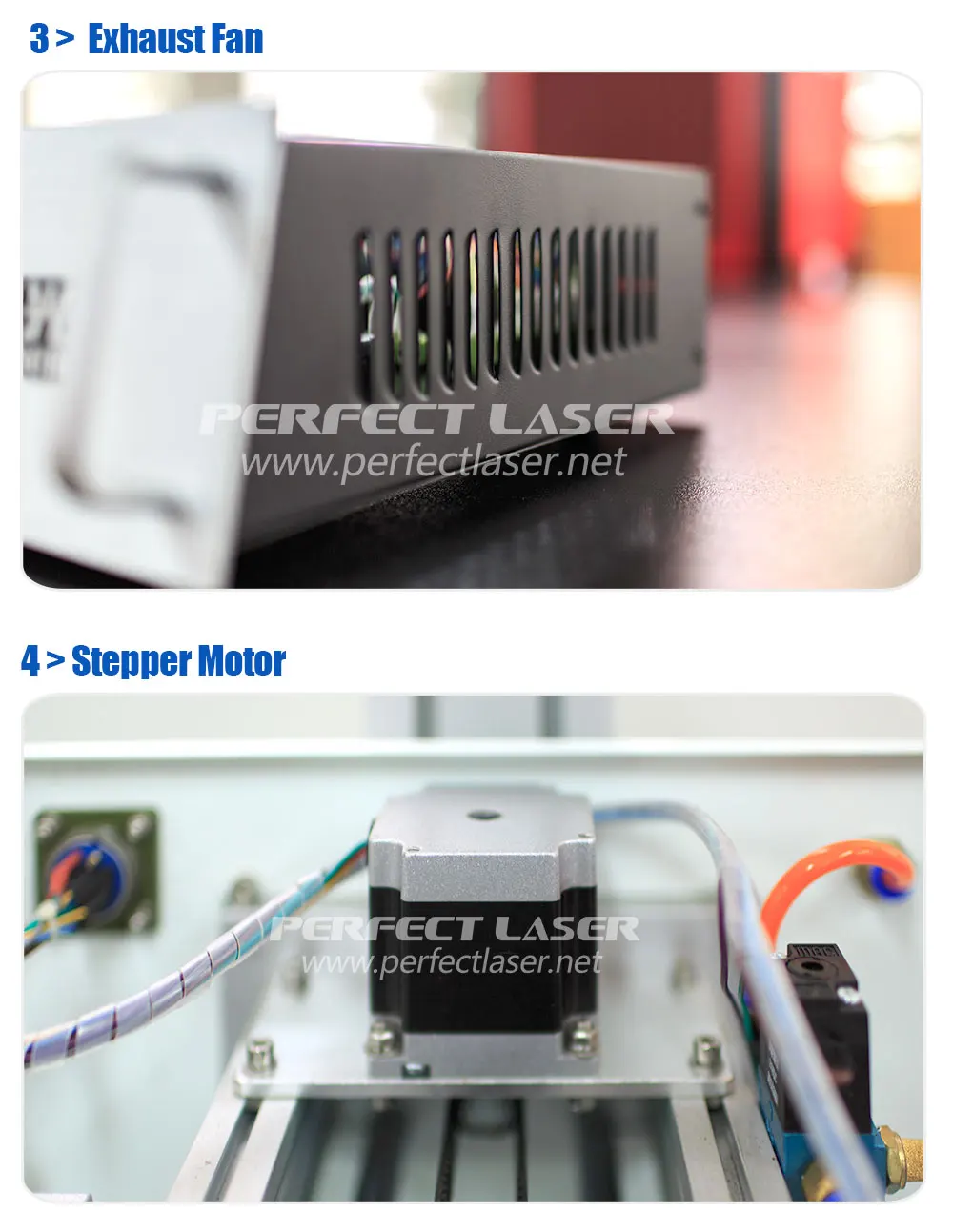

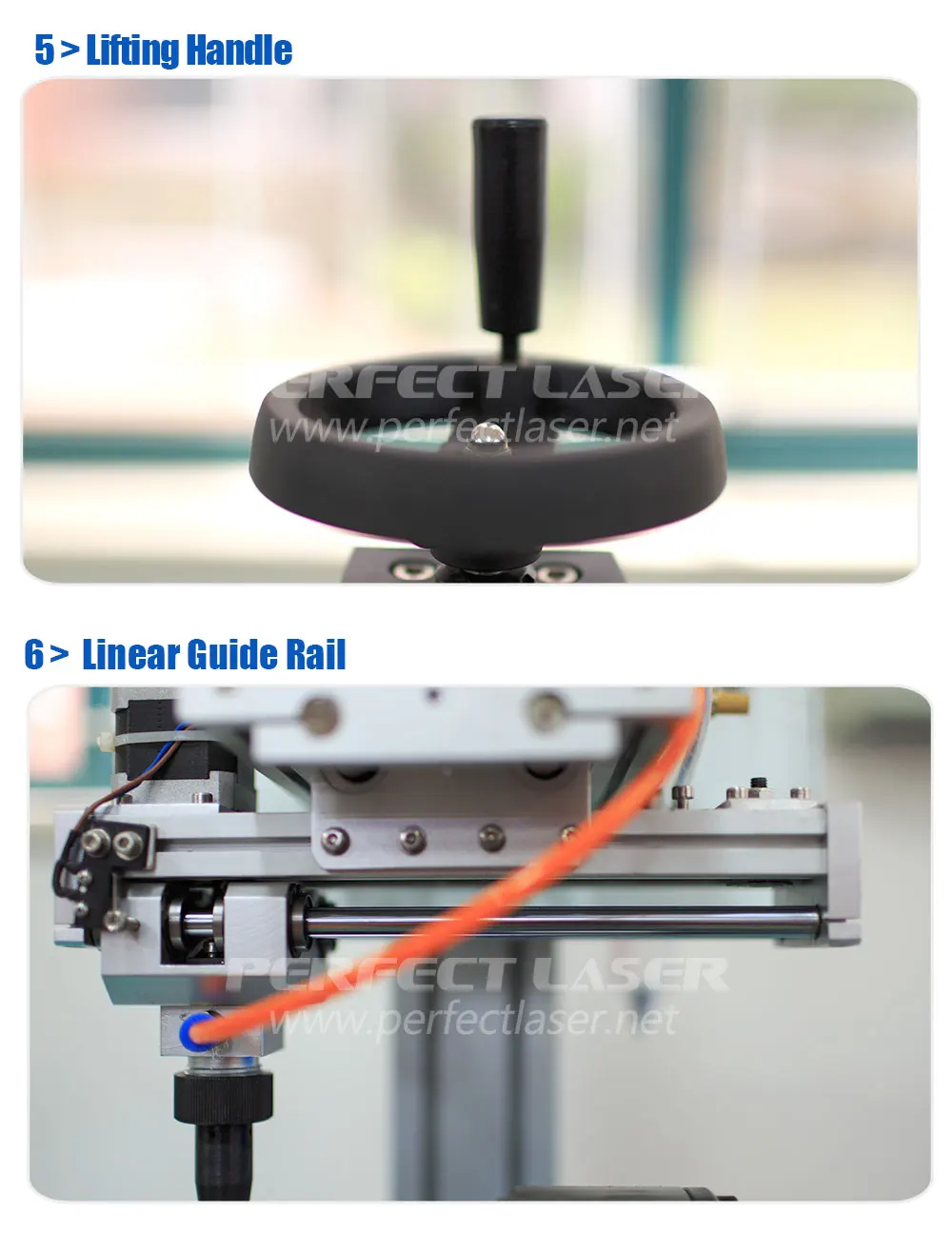

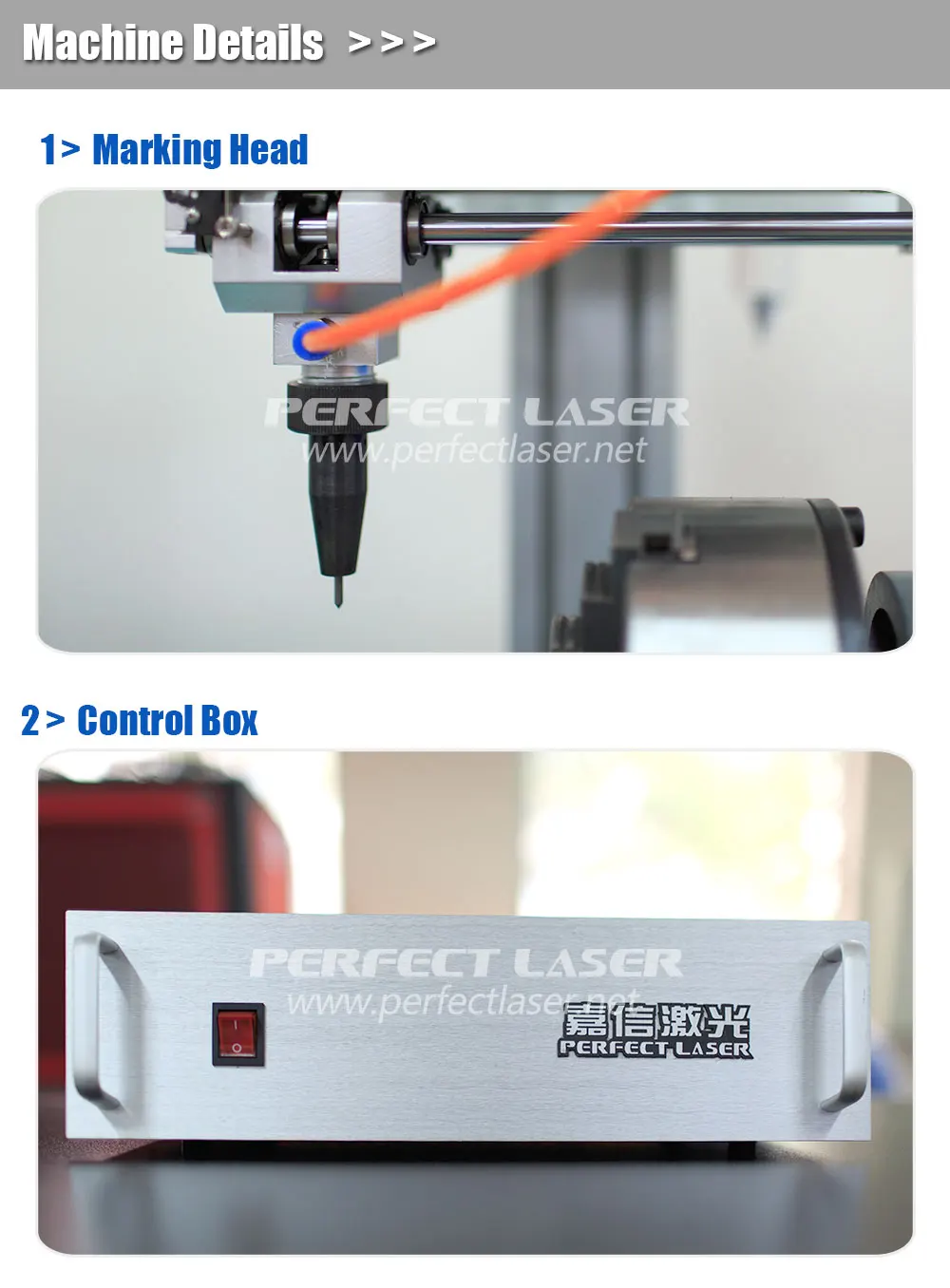

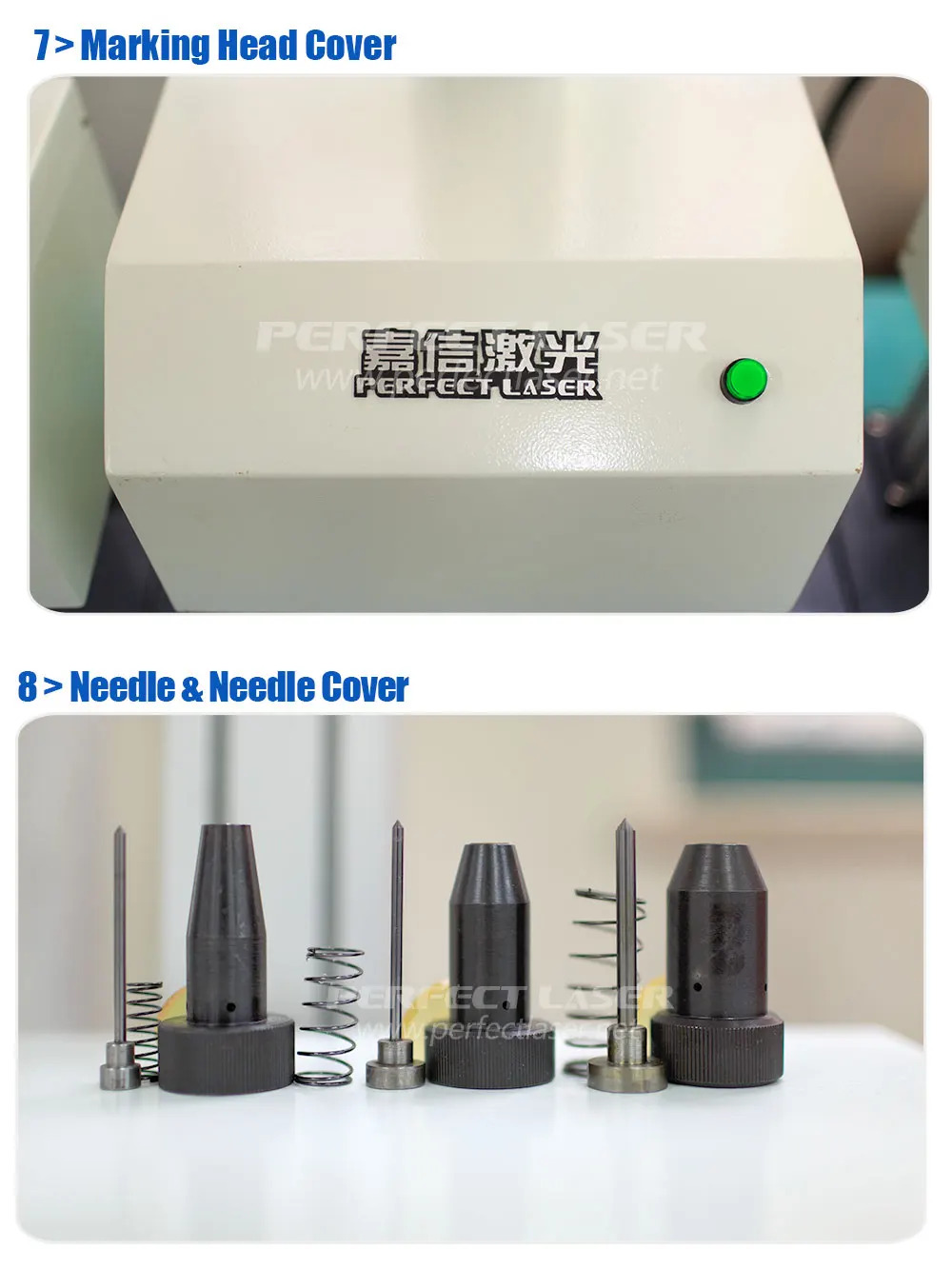

Detailed Images
Technical Parameters
|
Item
|
Industrial dot peen marking machine
|
|
Model
|
PEQD-100
|
|
Marking Area
|
150x100mm
|
|
Marking Depth
|
0.01~2mm
|
|
Marking Speed
|
≤50mm/s (for characters height of 3mm / 3-4 numbers /second)
|
|
Air Pressure
|
0.2-0.6Mpa
|
|
Z Axis Lifting Range
|
0-300 mm or customized
|
|
Marking Accuracy
|
0.01mm
|
|
Pin Hardness
|
HRC 73
|
|
Power Supply
|
220V±10%, 50HZ
|
|
Air Pressure
|
0.2-0.6 Mpa
|
|
Machine Power
|
≤400 W
|
|
Working Environment
|
-5~40 °C
|
|
Whole Machine Weight
|
50KGS
|
|
Measurement
|
0.21CBM
|
