Peeling Multi-core 310 Gas-electric Wire Stripping Machine

ر.س6,202.16

Qty:


Thick cable stripping machine Stripping diameter 15mm

YH-310 Manufacturer wholesale affordable electric pneumatic peeling machine

 FEATURE:

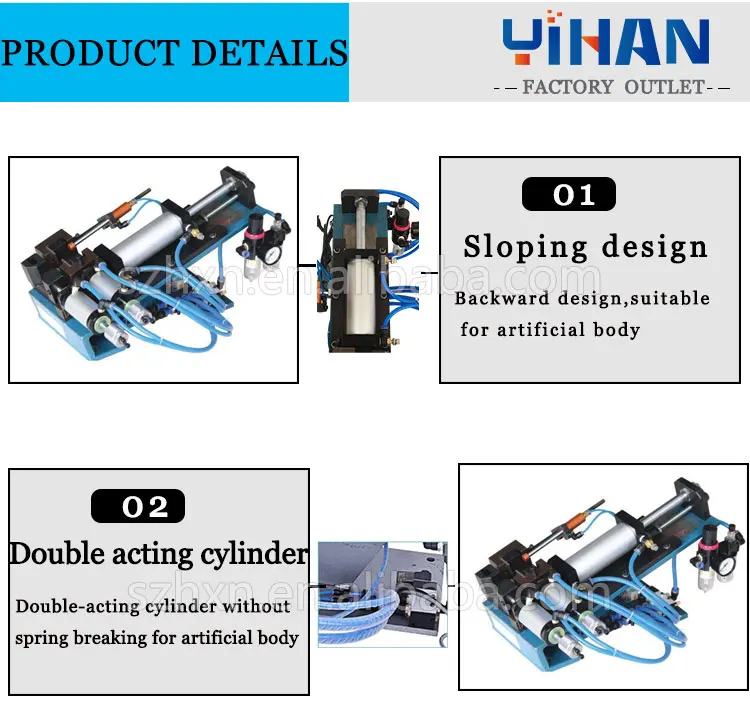

1. oblique back design, conform to the ergonomics.
2. double moving cylinder, free of spring breakage.

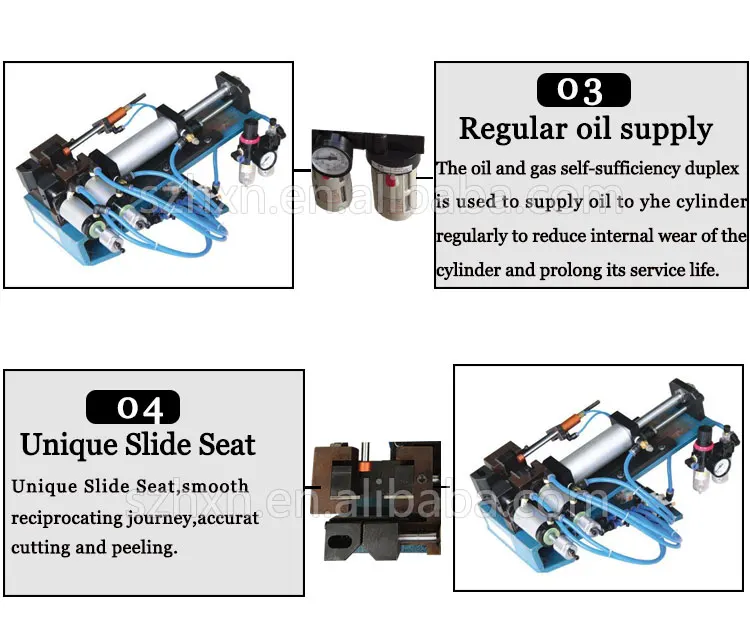

3. the two cylinders of oil and gas self supply provide regular oil supply to cylinder, reduce internal wear and      prolong service life.
4. Unique slide seat, stable reciprocating stroke, accurate cutting and stripping.
5. pneumatic control, light and agile, easy to operate.
6. Debug structure, adjust the thickness of the line of sight.

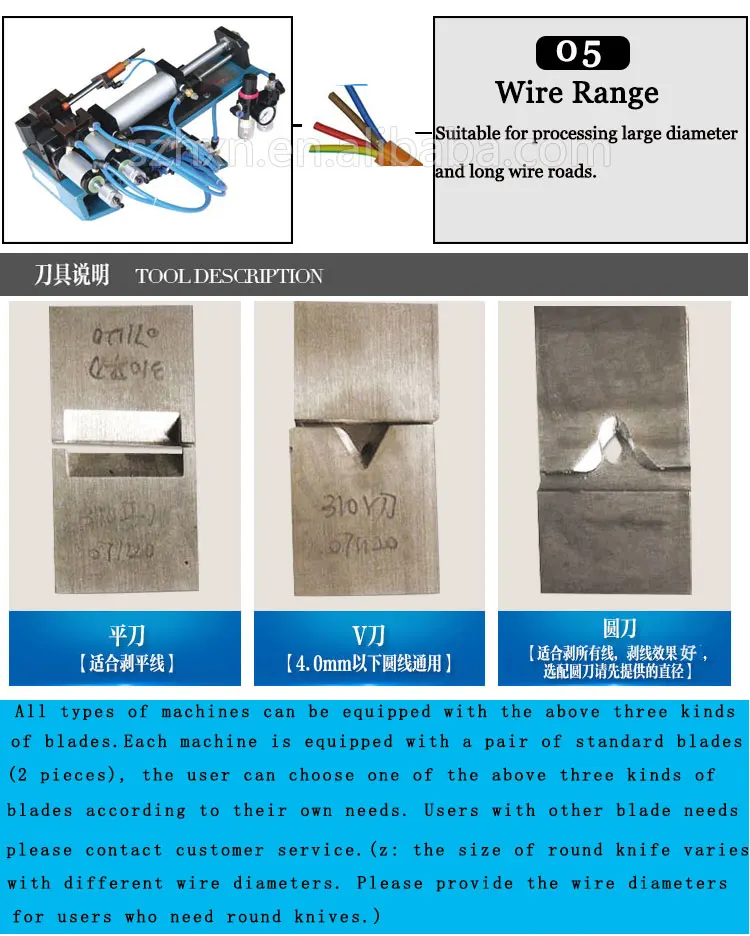

7. It is suitable for the processing of large and small wires and long and short wires. Such as AC/DC, power      cord, sheath wire, computer wire, electronic wire, multi-core wire, cable, flat line, etc.;

Product Description
Model
YH-310wire stripping machine
Power supply
AC220V / 50HZ / 60HZ
Air pressure
3-7kgcm2
Stripping length
0 . 1-100mm
Wire diameter
Max 15mm
Machine weight
28kg
Machine dimension
480 * 330 * 280mm

2_01.jpg1_02.jpg1_03.jpg1_04.jpg8.jpg2

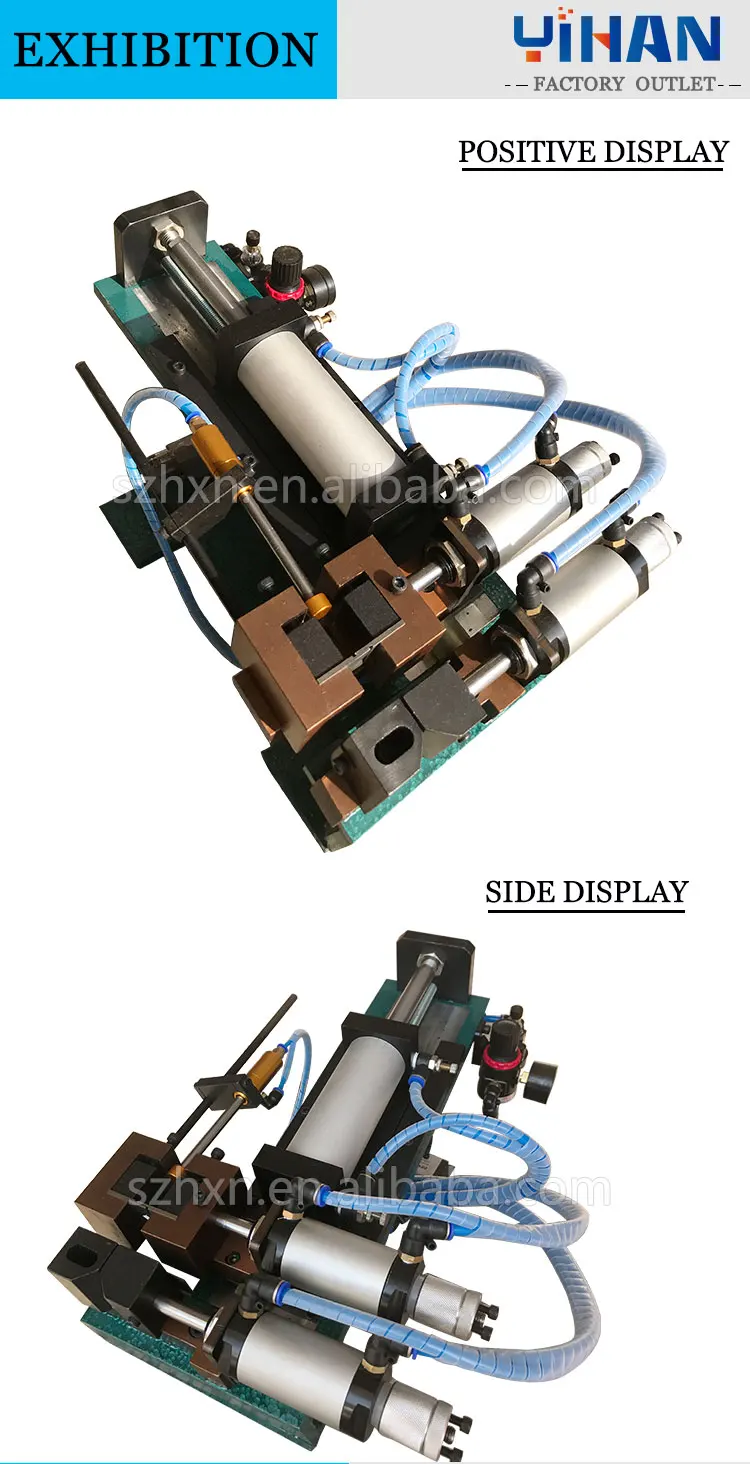

Product Show


]
