- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Skycom/ OEM
- Model Number: T-307
- Product Type: fiber optical equipment
- Applicable Fibers: SM, MM, NZ-DS, EDF , Pigtail,
- Average Splice Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
- Fiber image magnification: Simultaneous X and Y views with 200 times magnification
- Typical splicing & heating time: 6 & 15 seconds
- Tension Test & Return Loss: 2.0N(200gf)(Standard) & ≥60dB
- Protection Sleeve Length: 20mm, 40mm, 60mm
- Operating Conditions: -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
- Power Supply: Inner lithium battery: 11.1V, 6AH
- P Packaging Details: Custom-made Professional tool kit(case) with anti-shock sponge inside + Export-standard Carton Box with PEEEEPE Foam inside;side; SKYCOM T-307 Optical Fusion Splicer for fiber cable
- D Delivery Time: Shipped in 3 days after payment in receipt.
SKYCOM T-307 Optical Fusion Splicer for fiber cable
Please watch the video from the follwing link:
> CE SGS CSI ISO9001 compliance
> Over 8-Year Experience in the field
> 5 patents for optical fiber fusion splicer machine
> OEM Service, Custom Make To Order
> Distributors Abroad Wanted
> Skycom Patented Optical Fiber Fusion Splicer Series
Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself. > We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SKYCOM T- 307 are our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.
> Product Features of Optical Fiber Fusion Splicer
1> Quick splicing time: 6 seconds
2> Quick heating time: 15 seconds
3> More Portable design
> Product Parameters of Optical Fiber Fusion Splicer
|
Applicable Fibers |
SM, MM, NZ-DS, EDF , Pigtail, Cable,( Rubber-insulated wire SC/LC/FC connector (optional function) |
|
Average Splice Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
|
Return Loss |
≥60dB |
|
Tension Test |
2.0N(200gf)(Standard) |
|
Typical splicing time |
6 seconds |
|
Typical heating tim |
15 seconds |
|
Splicing Program |
50 groups |
|
Protection Sleeve Length |
20mm, 40mm, 60mm |
|
Operating Language |
Chinese, English, French, Portuguese, Spanish, Italian |
|
Operating Conditions |
-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
|
Power Supply |
AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) / 12V 8AH lithium battery |
|
Monitor |
4.3 inches high resolution colorful LCD display |
|
Fiber image magnification |
Simultaneous X and Y views with 400 times magnification |
|
Storage of splice result |
6,000 groups of latest splice results |
|
Splicing Model |
Auto & Manual&Full-Auto |
|
Optical Fiber Fixture |
3-in-1 cutting fixture; Multipurpose 1+N fixture (Optional for SC/LC/FC connector) |
|
Dimensions |
|
|
Weight |
1.29kg(without battery ) |

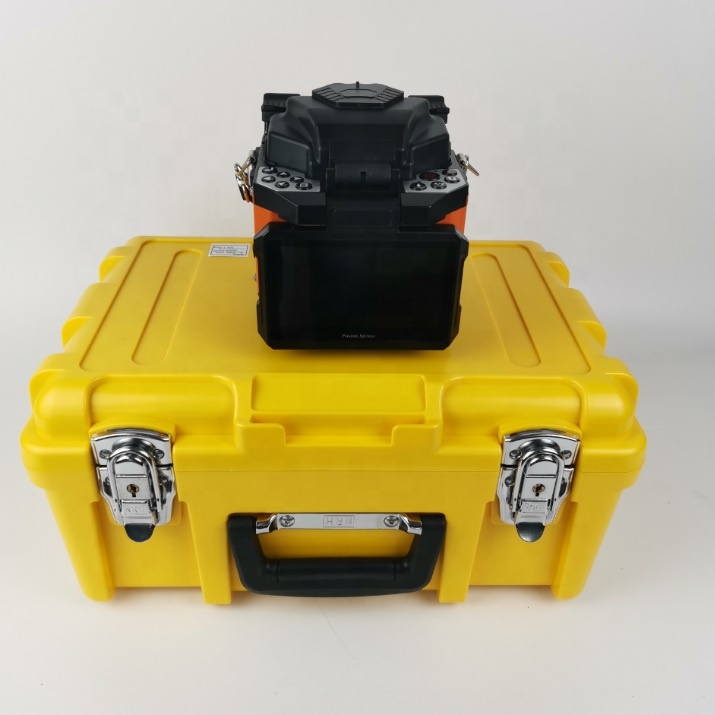

> Product Pictures of Optical Fiber Fusion Splicer
> Product Accessories of Optical Fiber Fusion Splicer
|
No. |
Item |
Quantity |
|
1 |
Machine (T-307) |
1 |
|
2 |
Fiber Cleaver |
1 |
|
3 |
Fiber Stripper |
1 |
|
4 |
AC Adaptor (Charge) |
1 |
|
5 |
Battery |
1 |
|
6 |
Spare Electrodes |
1 |
|
7 |
Cooling Tray |
1 |
|
8 |
Instruction CD |
1 |
|
9 |
Quick Reference Guide |
1 |
|
10 |
Rubber-insulated wire stripping pliers |
1 |
|
11 |
Rubber-insulated wire 3-in-1 cutting fixture |
1 |
|
12 |
Transit case with Carrying strap |
1 |
> Product Package of Optical Fiber Fusion Splicer
> Application Areas of Optical Fiber Fusion Splicer
> Telecom, Unicom, Mobile CATV, Power, Railway, Petro-chemical, Troop, Coal, College, Science & Research Agency, etc
> Company Pictures
Nanjing Tianxingtong Electronic Technology Co., Ltd. is a China leading manufacturer of Optical Fiber Fusion Splicer related products, with ultra-reliable quality, timely delivery & thoughtful service. The main products series include fusion splicer, OTDR, optical fiber cleaver, skinline cable welding machine, power meter, etc.
> We are a high-tech enterprise, located in Nanjing, Jiangsu – the most developed province in machinery industry in the East China. We has been dedicated to R&D, manufacturing fusion splicer since established in 2010.
> With excellent rich-experienced experts and well-trained marketing team, adopting modern production management system, we are expanding rapidly, and now becoming a leading supplier of fusion splicer and other related optical fiber tools and equipment in China.
>Our company adopts the scientific quality management system and advanced professional production equipment and testing instruments. Furthermore, we always take excellent quality of products and quality service as the enterprise’s life. Our company is dedicated to providing customers with high-quality products, timely technical support and thought after-sales service since founded. We have formed a “four in one” integrated system including design, manufacture, sales, and installation.
> Our products are widely applied to support the use of all kinds of optical communication engineering worldwide. After many years of exploiting market, our products are widely acknowledged and trusted by different customers around the world, such as UK, USA, France, Australia, India and Africa, etc. We sincerely welcome domestic and international customers contact and visit us for future business relationships and mutual success!
> Why Choose Us?
Certificates:
Exhibitions:
Achievements:
> Skycom fusion splicers and OTDR are widely applied to support the use of all kinds of optical communication engineering at home and abroad. Our Sales network reaches Southeast Asia, Africa and West Europe. Such as: Peru, Pakistan, Malaysia and so on.
> Skycom has won a good reputation for its ultra-reliable quality and thoughtful service for over 4 years.
Advantages:
> Professional:Specialized in manufacturing and selling optical fiber devices for more than 5 years. We are gold supplier with 5 years history, up to now, our products have been covering more than 20 countries of all over the world. OEM/ ODM, Customized service. Offer service of adding customer’s logo.
> Excellent Quality: All our products have pasted the tests by SGS, CE & CSI.
> Timely Delivery: All our goods can be delivered within 3 working days.
> Reasonable Price: We provide pretty cost-effective products. Factory Direct price must be competitive.
> Trustful: We treat our workers and clients as respectful partners. Special discount and protection of sales area provided to your distributor.
> Thoughtful Aftersales Service: Long warranty time, free and timely technical support andspecial training make you using our products without any worries.
> FAQ
Skycom sales team can provide detailed answers to your specific questions.
In order to understand us better, please kindly be noted:
> Are you the manufacturer or trading company?
We are the manufacturer and have our own workshops which more than 2000 m2.
> How’s the quality?
The quality of our fusion splicer is superior with good stability. We are professional manufacturer and R&D fusion splicer by ourselves. We created world first 3 in 1 multi-purpose fixture which makes our machine applicable for bare fiber, Rubber-insulated cable and fiber optic patch cord, each machine is high end materials and strict 3-time Quality Tests.
> What’s the MOQ?
1 set is available.
> How about use it on cables?
Yes, it is appliable to cables.
