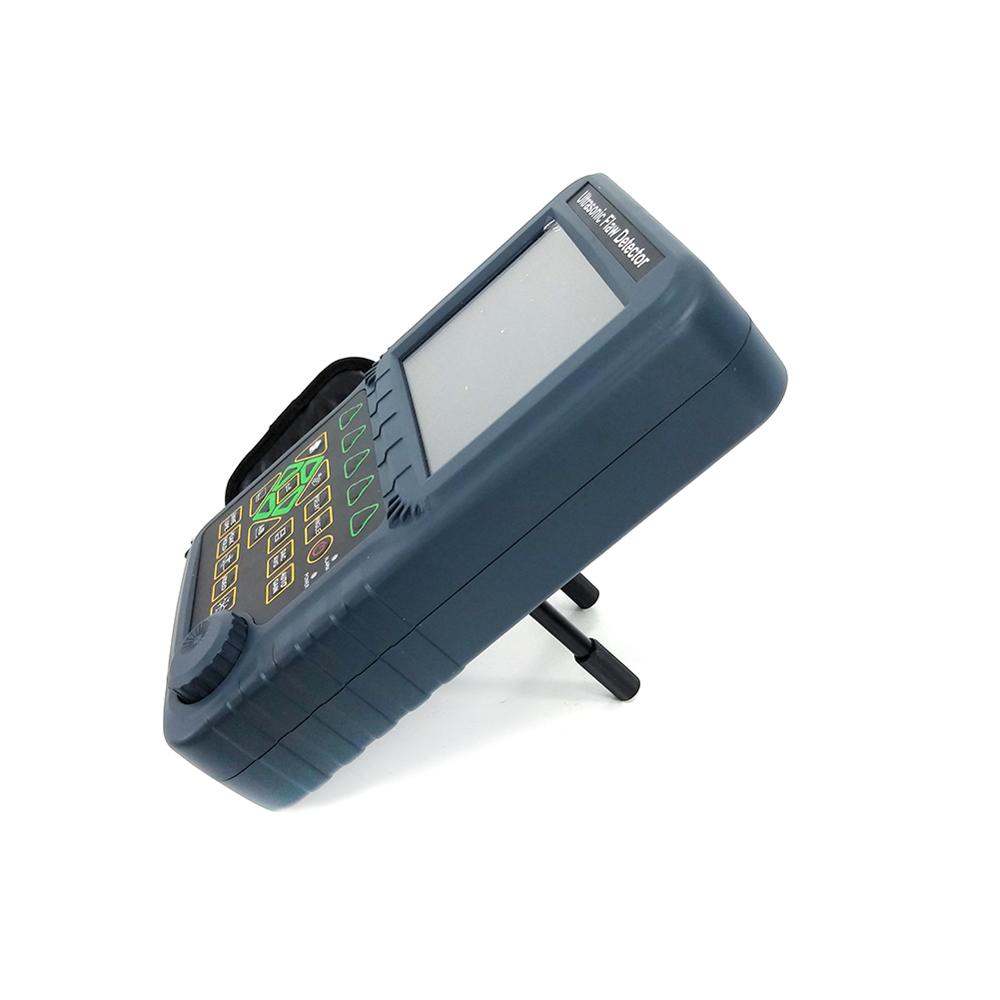

IWIN-U600 Ultrasonic flaw detector can quickly, non-destructively and accurately detect various defects (cracks, inclusions, blowhole, etc.) inside the workpiece. The product is unique in design, easy to operate and durable. It adopts all-Chinese true color liquid crystal display. Different color schemes can be selected according to the environment. The brightness of liquid crystal can be adjusted under strong outdoor light. Master-slave menu design, with digital shuttle wheel, easy to operate, leading technology. It is widely used in aerospace, railway transportation, building steel structure, boiler pressure vessel and other fields. It is a necessary professional precision instrument for defect detection, quality control, in-service safety monitoring and life evaluation in railway, shipbuilding, metallurgy, chemical industry, petroleum and other industries.
Technical parameters
|
Product specifications examination range working frequency Sound speed range Dynamic Range Vertical linearity error Horizontal linearity error Discrimination Sensitivity margin Digital suppression Electrical noise level Probe type Gate Pulse amplitude Pulse Width
Probe damping Real-time sampling of hardware
Detection method Filter band
data storage

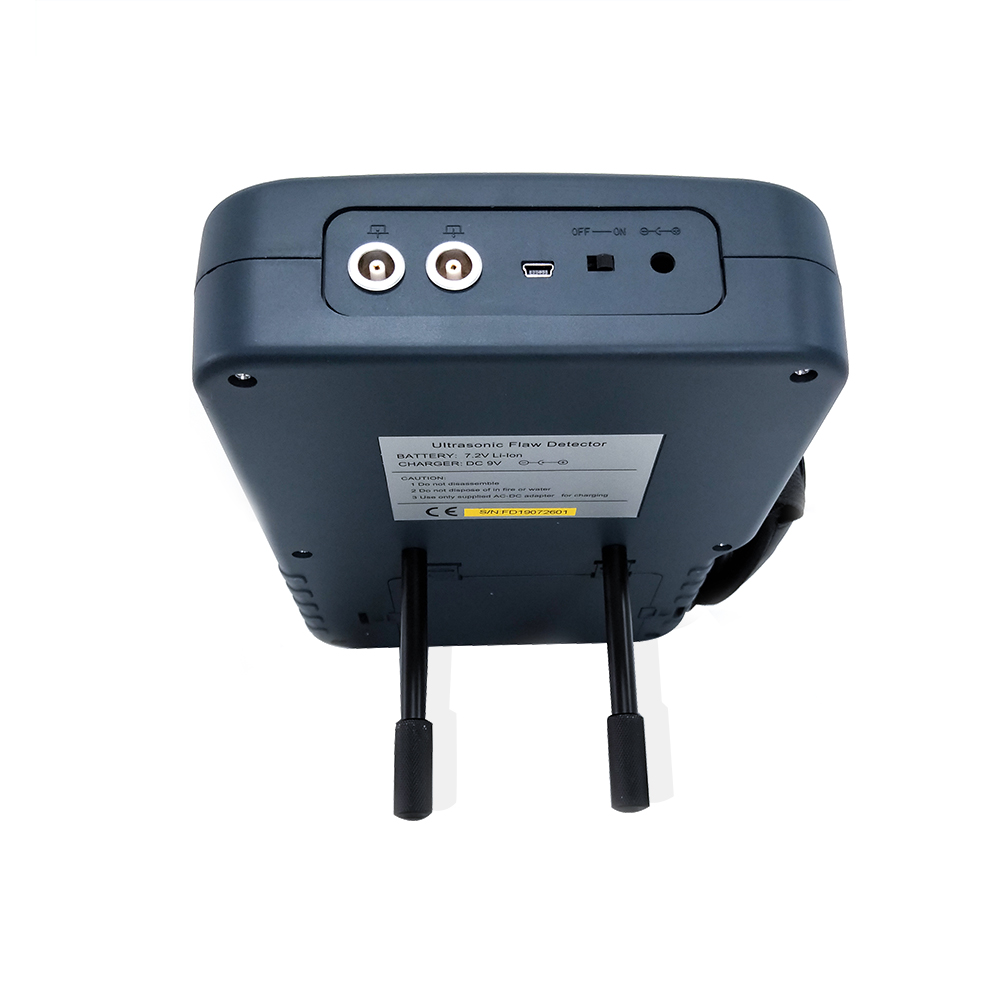

Communication Interface power supply Dimensions Ambient temperature and humidity |
GTJ-U600 full digital ultrasonic flaw detector (0~9999)mm (0.2~20)MHz (1000~15000) m/s ≥36dB ≤2.5% ≤0.1% >40dB(5P14) >65dB (deep 200mm 2 flat bottom hole) (0~80)%, does not affect linearity and gain ≤8% Straight probe, oblique probe, dual crystal probe, penetration probe Incoming gate, loss gate; single gate reading, double gate reading Low (300V), medium (500V), high (700V) grading options Continuous adjustment in the range of (0.1~0.5)μs to match probes of different frequencies 100Ω, 200Ω, 400Ω optional High resolution 10-bit AD converter with sampling speed of 160MHz and high waveform fidelity Positive half wave, negative half wave, full wave, radio frequency detection (0.2~20)MHz, fully automatic matching according to probe frequency, no need to set manually 100 sets of flaw detection parameter channels, 1000 flaw detection echo signals and parameters USB2.0 high speed communication transmission interface DC (DC) 9V; lithium battery works continuously for more than 8 hours 263*170*61 (mm) Temperature: (-10~50) °C Humidity: (20~95)%RH |
Instrument constitutes
|
Configuration |
Name |
Quantity |
Unit |
Remarks |
|
standard Configuration |

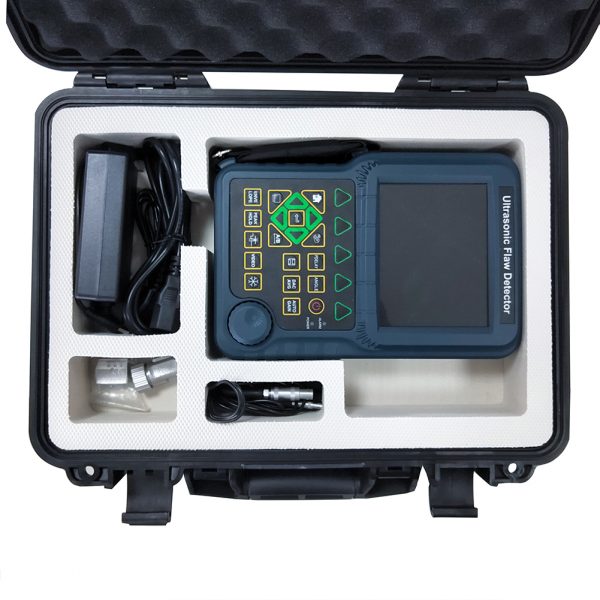

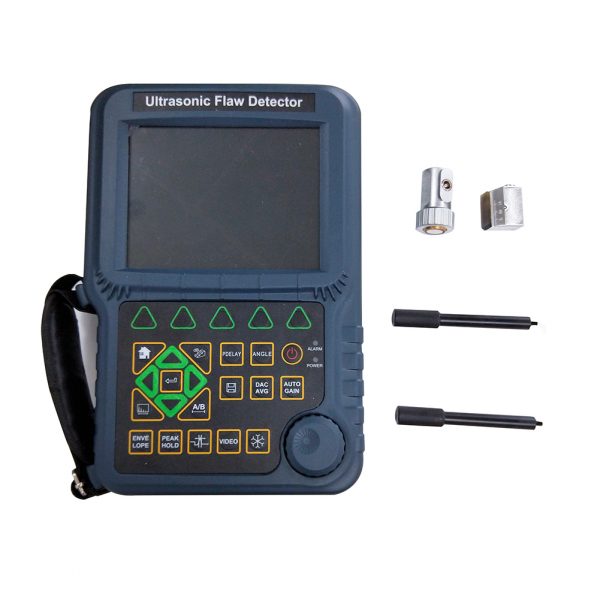

Instrument host Straight probe Oblique probe Support column Probe connection cable Battery module Power Adapter power cable Instrument box USB communication cable Data processing software Random data |
1 1 1 2 1 1 1 1 1 1 1 1 |
station One One One article One One article One article Zhang set |
Built in
CD |
|
Optional configuration |
Host holster Shaped probe Related test block |
|||
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it’s not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product’ services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
