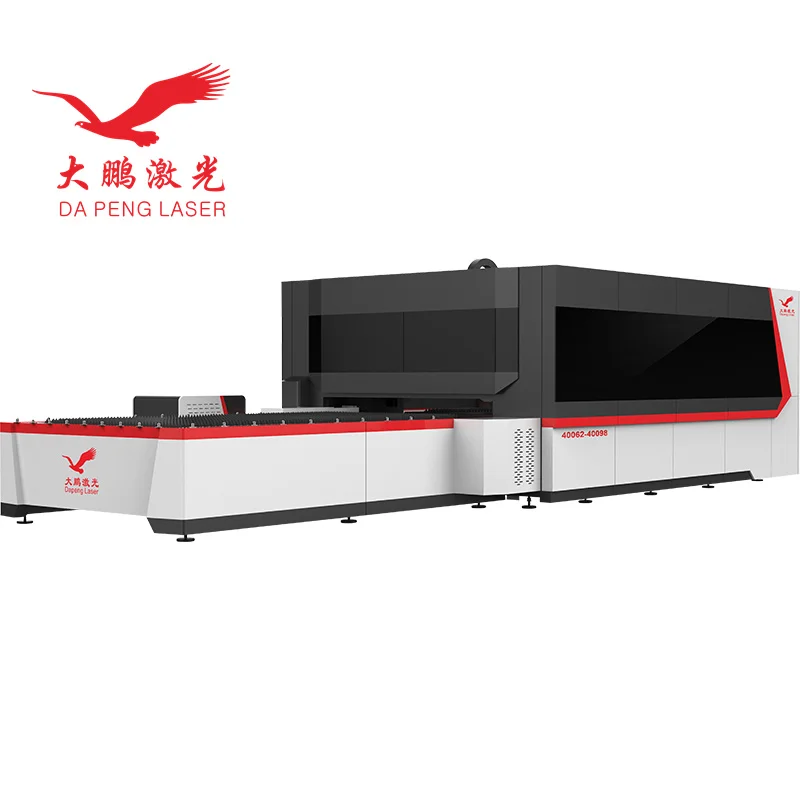

Model
|
DPE-FT3015D-F1500W/F2000W/F3000W
|
|
Laser source type
|
Fiber source
|
|
Laser Out Power
|
1070nm
|
|
Laser wavelength
|
1000W/2000W/3000W/6000W
|
|
Cutting range
|
3000×1500mm
|
|
Minimum line width
|
<0.1mm
|
|
Transfer method
|
Precision rack dual drive
|
|
Cutting speed and thickness
|
Depending on specific material
|
|
Repeatability
|
±0.02mm
|
|
Machine operating temperature
|
0~40℃
|
|
Electricity demand
|
380V/50Hz
|
|
Cooling method
|
Water cooling
|
|
Continuous operating time
|
24 hours
|
|
Weight
|
5600KG
|
|
Dimensions
|
8350x3050x2100mm
|
|
Maximum operating speed
|
120m/min
|
|
Maximum acceleration
|
0.9G
|
|
X/Ypositioning accuracy
|
1.2mm
|
|
Minimum slit width
|
0.15mm
|

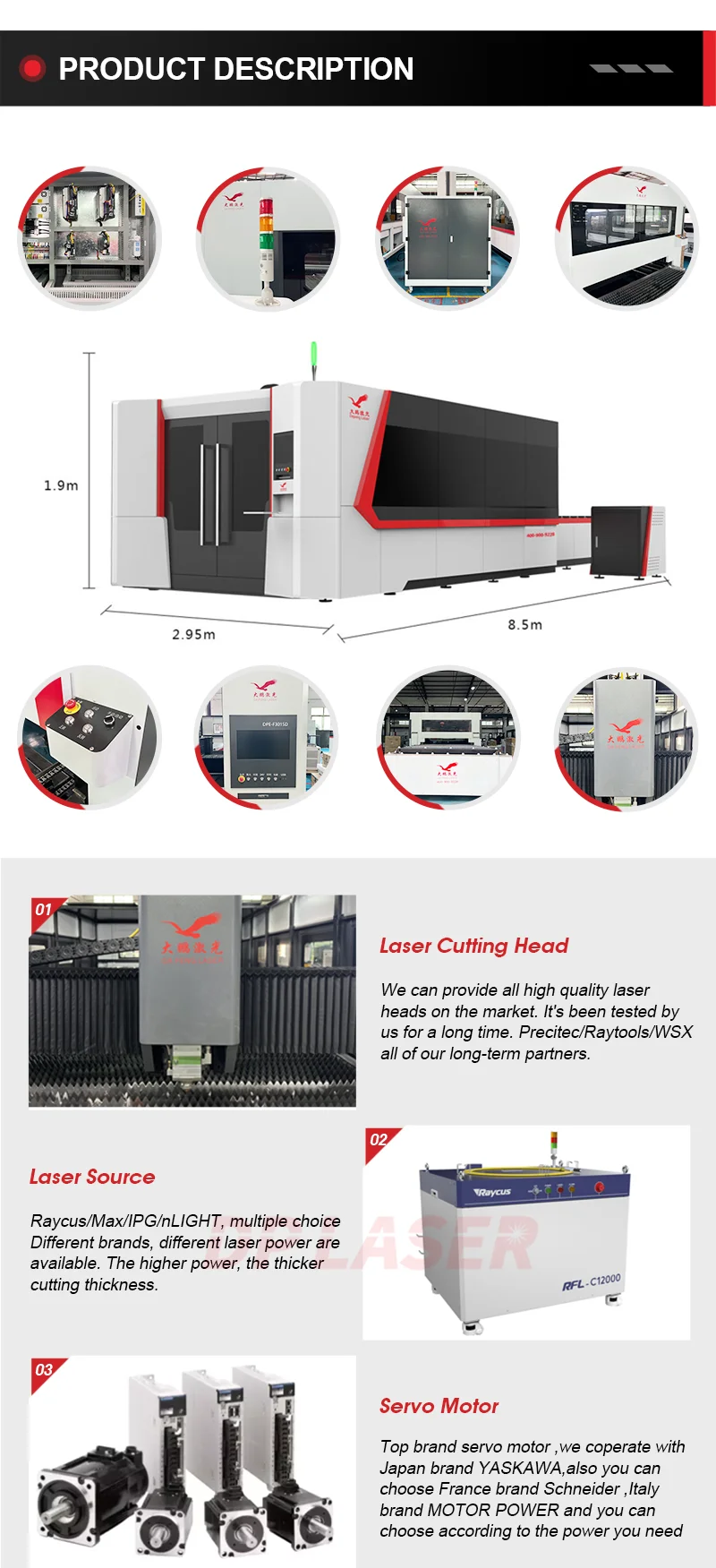

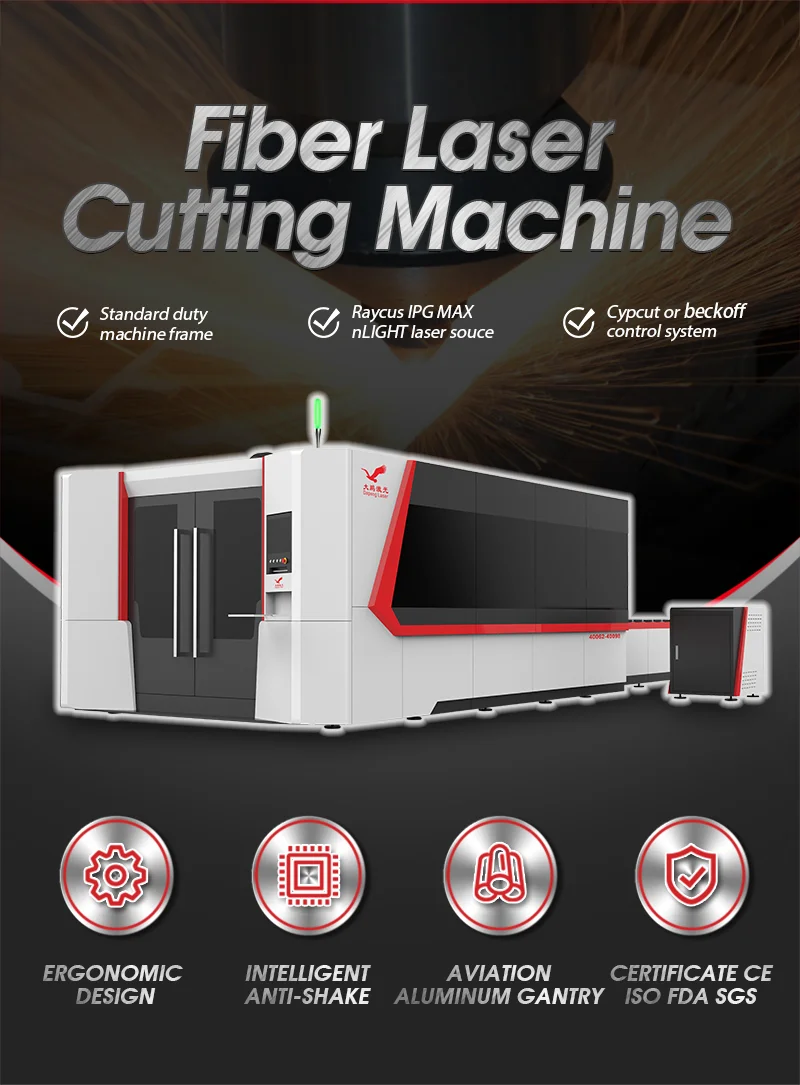

Product Features
1,Gantry double drive structure, smooth and reliable movement.
2,Thickened heavy machine bed and worktable, no deformation for 20 years, greatly extending the service life of the machine.
3,Precision gear rack drive, with high response and high precision servo motor.
4,The international first-class quality of fiber laser, industrial application for many years, long service life, maintenance free, stable and reliable.
5,High precision laser cutting head, imported optical lenses, is focused on the fine, the adjustment is convenient, cutting perfect.
6,A double closed-loop control capacitive height controller, low requirement to the steel sheet, cutting quality is stable and reliable.
7,CNC system is concise and easy operation, low requirements for the operator.
8,Cutting graphic input multiple formats, powerful draw and edit graphics function.
9,China top professional laser cutting software, cutting technology experts, data call functions.
Advantages
* Using Germany IPG laser source, the electro-optical conversion efficiency is high, which can save power consumption during work and save operating cost.
* The design of the dual platform, when one workbench is cutting, the other workbench can simultaneously work on the loading and unloading to improve work efficiency.
* The focal length of the cutting head can be self-adjusted following the surface height of the material, even if the surface of the material is not flat, the cutting quality can be guaranteed.
* Equipped with a handheld controller, you can manually control the cutting position
* With precision ball screw, rack and pinion, linear guide transmission operation, thus achieving high precision, high efficiency and stability of the machine tool.
* The switch of the solenoid valve and the proportional valve is controlled by the system. The input value in the numerical control system can control the size of the proportional valve outlet, without manual adjustment.
* High-strength integrated welding fuselage and aerospace-grade aluminum alloy beams are subjected to high-temperature annealing to ensure long-term use without deformation.
Applications
1. Application Industries: Widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
2. Application Materials: Suitable for metal cutting with Stainless Steel Sheet, Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Iron Plate, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Metal Sheet,Metal Plate, Tubes and Pipes, etc.
Q1: How do I know which model is suitable for my product application?
You just need to tell us the following information then we can offer you a suitable solution? In addition, you can also send us the sample and we will arrange professional engineers for proofing evaluation
1) What is your product? material? thickness? required accuracy?
2) What is the current production process?
3) What is your desired budget and delivery time.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly. And for some countries , like in India, Malaysia, Korea,Spain, we have local support team, more countries will be in the picture soon.
Q3: How can I do if the machine goes wrong？
We guarantee machine quality for 13 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer in best delivery. Besides guarantee period, we still provide you free online services for life.If parts broken, you can order replacement parts from us.
Q4. Can you customized product according to different application?
Yes, Dapeng laser is very dedicated to combine with our current ability with the main leading supplier to offer you the customized application.
Q5:What if there are gaps in my product which need to weld?
For laser welding machines, we are usually equipped with automatic wire feeding system. For products with gaps, you can use wire feeding mechanism for wire filling welding
Q6. What is your normal lead time?
Generally standard machine, our lead time is 2-7 days after PO confirmed. Customized product need a little longer.
Q7. Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don’t worry, you will receive the parcel in good condition
Q8:Why should I choose DAPENG LASER compared with other companys?
We are factory with 453 employees, turnover reached 100 millions USD in 2021, ISO 9001 certificated and most products are CE/SGS approoved, can offer you a high-quality pre-sale, in-sale and after-sales solution.
