FUNCTION
1.High and low speed two stage design is for quick oil output .Turbine oil absorption could ensure reaching Max. effective oil volume.
2.Over pressu re safety valve unit could avoid over pressure damage , At 700kg/cm, automatically release.
3.Oil pipe fitted with quick coupling could be ordered for any length.

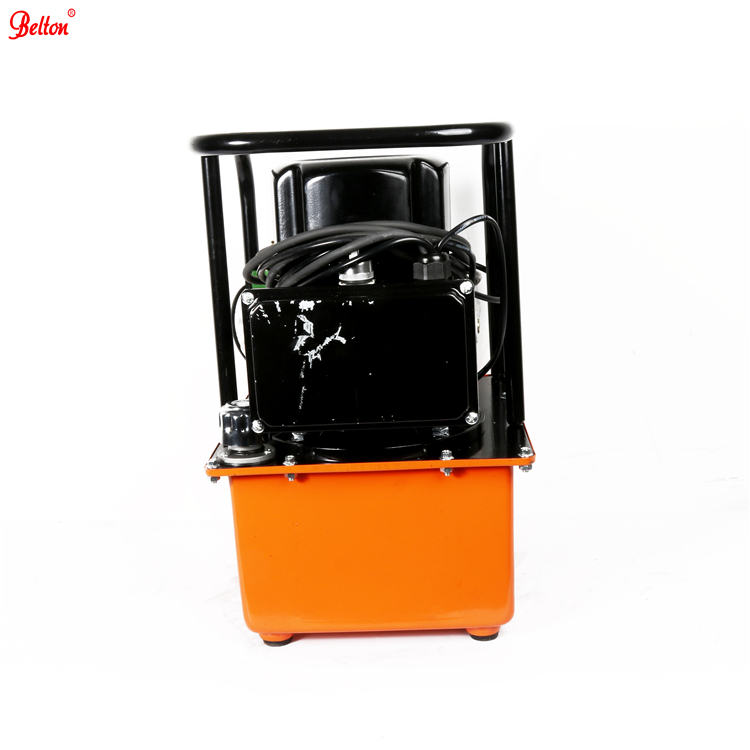

| Model | ZCB-700D |
| Working power | AC220V 50HZ |
| power rating | 750w |
| Pressure rating( Low) | 7(mpa) |
| Pressure rating (High) | 70(mpa) |
| Rated output(High) | 0.9(L/min) |
| Rated output(Low) | 5(L/min) |
| Oil capacity | 7(L) |
| size | 350*270*510mm |
| Weight | 35kg |
| Remarks | Single active 3 Pipes |
![W42FU]C]2]UM9BW6_3T}]M.png](http://sc01.alicdn.com/kf/Hca1c02ff7bd44adca816cf2a925ac6bem/231881293/Hca1c02ff7bd44adca816cf2a925ac6bem.png)
![MKJ`P_W[7299MX%I]P}K1OV.png](http://sc01.alicdn.com/kf/Hbbb80245592f4edb9581822f7e357ff2s/231881293/Hbbb80245592f4edb9581822f7e357ff2s.png)
Company profile
ODE Technology CO., Ltd, the first to break HST(hydraulic System Technology) core technology, which is committed to providing a variety of fire rescue, light construction facilities and intelligent equipment, and provides more energy-saving and environmental protection, precision portable electric,hydraulic construction tool and rescue equipment.ODE has 200 employees,20 of them are are advanced R&D and QC engineer.
After more than 10 years of accumulation and development, it not only has a customer service team, whose concept is the customer is God, but also trains a group of market demand-oriented design and development team.
At home and abroad, it already has more than 20 subsidiary and regional offices, and responsible for various industries and professional field of product sales and technical services, with thousands of distributors all over the world.
![)(7B)H3MPANCL]~1IB~[N2.png](http://sc01.alicdn.com/kf/He8c677f43bb04704b9408c7d56ee0f48s/231881293/He8c677f43bb04704b9408c7d56ee0f48s.png)
1. Are you factory ?
Yes.Our factory in hangzhou. It is only one hour from Shanghai. welcometo visit the factory any time .
2. How long is your machine warranty ?
Warranty of Belton product is one year(Artificial damage and incorrect use is not included),within warranty period ,we will offer free part and maintainvideo ,
or ever can teach you face-to-face .if machine have serious quality problem ,
we support to back .
3. What is your shipping way ?
Express (DHL,Fedex,TNT),By air ,Or Sea. We will choose one shipping way to suit customers reques
