Thread tapping machine is widely used for coarse and fine teeth, non-standard tooth pitches and reverse-tightening connection threads, driving connection threads and pipe threads for various small and large steel parts.
Standard Accessories:
>>AC Servomotor
>>Tapping arm(Working Area Optional:1100mm)
>>Tap Holder:M3-8,M10,M12,M14,M16( For ISO 529 Tap)
>>Optional: For JIS Tap and For DIN 371 Tap
>> Fixed Joint( only tapping in vertical direction)
>> Optional:Universal Joint( tapping in any angle)

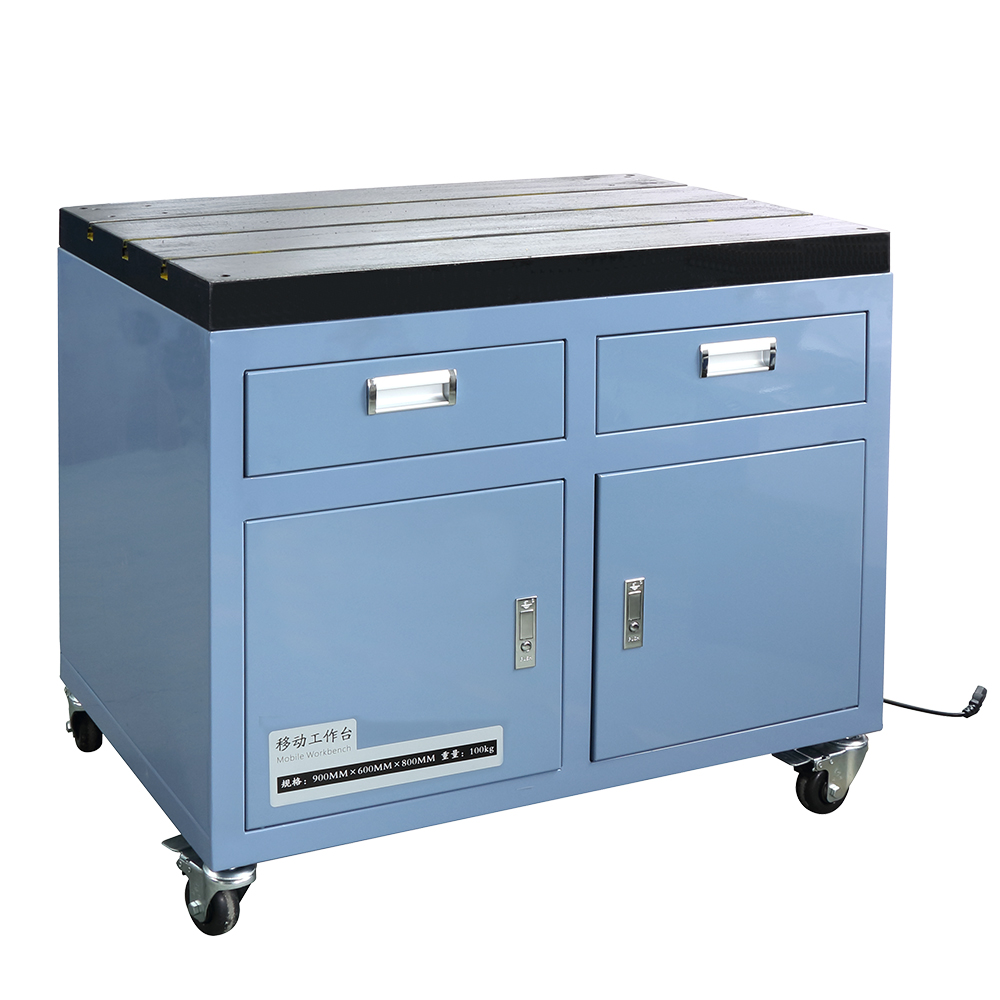

>> Optional:Moving work table, or Magnetic base (Tapping an arbitrary range)

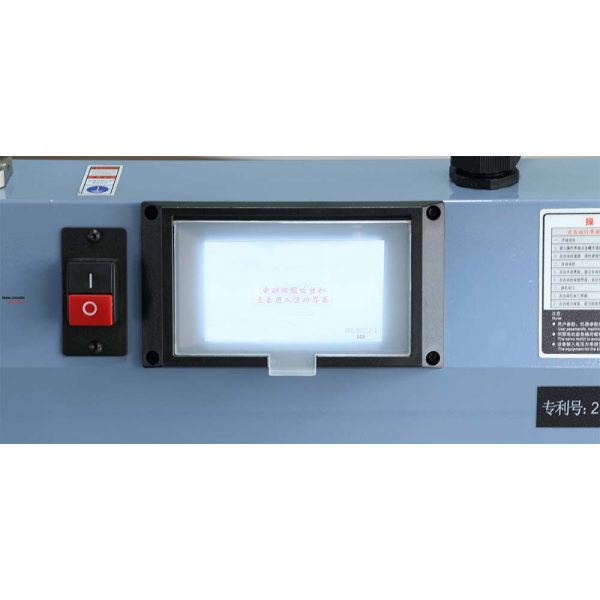

>> Optional:Control mode(Touchscreen)

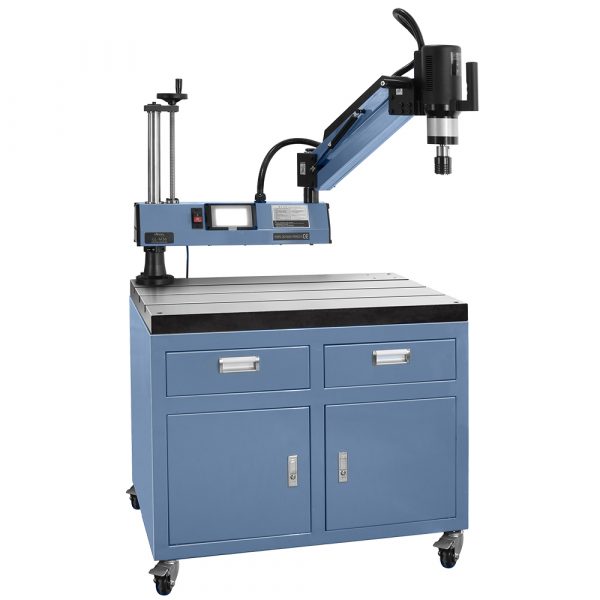

Product Name | CNC Electric Tapping Machine |
Model | ETM-24 |
Voltage | 220V,50Hz |
Rated Power | 1200W |
Tapping Range | M4-M24 |
Max.Tapping Speed | 550RPM |

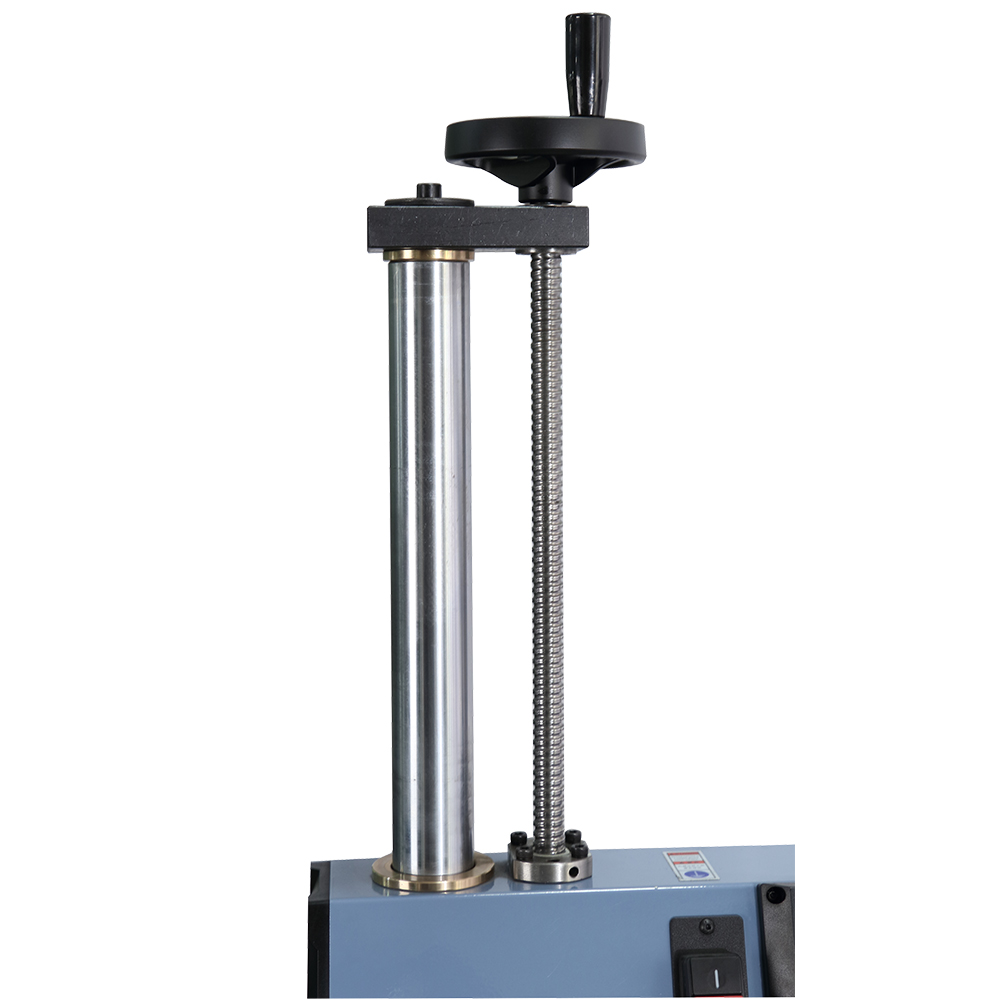

Working Radius | 1200mm(Horizontal); 400mm(Vertical Adjustable) |
Tapping Direction | Vertical or horizontal |
Tapping Capacity | M4-M20(Steel,Stainless Steel); M4-M24(Aluminum) |
Stock Available | Yes |
Standrad Accessories | Tapping Arm(1 Set), Servo Motor and Reducer(1 Set), Tap Holder M3-M16(1 Set) |
Weight | N.W 48kg, G.W50kg |
Package Size | 120*120*10cm |
Package | One Piece/Foam/Wooden Box |
Delivery Time | 10 days against order confirmation |
Shipment | Express,Air,Ocean |
FUNCTION:
Small hole high speed tapping machine, a unique leading-edge technology, to ensure that the tap will not be broken.
1. Used in military precision instrumentation, mold and other industries thread processing;
2. Solve problems that tap easily broken and be jammed during processing micro & deep hole threads;
3. Adopt U.S. dual-core chip CNC system;
4. Can set the depth of the hole and different materials;
5. Fast tracking, security tapping; Can dynamic display the real-time data;
6. Can record the depth, number of turns, screw pitch and other data of processed thread;
7. Can be used for analyzing the data of laboratory;
8. Can replace the desktop machine.
Company profile
ODE Technology CO., Ltd, the first to break HST(hydraulic System Technology) core technology, which is committed to providing a variety of fire rescue, light construction facilities and intelligent equipment, and provides more energy-saving and environmental protection, precision portable electric,hydraulic construction tool and rescue equipment.ODE has 200 employees,20 of them are are advanced R&D and QC engineer.
After more than 10 years of accumulation and development, it not only has a customer service team, whose concept is the customer is God, but also trains a group of market demand-oriented design and development team.
At home and abroad, it already has more than 20 subsidiary and regional offices, and responsible for various industries and professional field of product sales and technical services, with thousands of distributors all over the world.
1. Are you factory ?
Yes.Our factory in hangzhou. It is only one hour from Shanghai. welcometo visit the factory any time .
2. How long is your machine warranty ?
Warranty of Belton product is one year(Artificial damage and incorrect use is not included),within warranty period ,we will offer free part and maintainvideo ,
or ever can teach you face-to-face .if machine have serious quality problem ,
we support to back .
3. What is your shipping way ?
Express (DHL,Fedex,TNT),By air ,Or Sea. We will choose one shipping way to suit customers reques
