Product Description
Model
|
PTM-12-A
|
PTM-16-A
|
|
Main Motor Power
|
600W
|
1000W
|
|
Working Accuracy
|
0.05
|
0.05
|
|
Maximum Spindle Stroke
|
1100 mm
|
1200 mm
|
|
Lead Angle
|
90°
|
90°
|
|
Spindle Speed Range
|
400 rpm
|
250 rpm
|
|
Roll to Screw Pitch Range
|
12 mm
|
16 mm
|
|
Tapping Ability
|
Steel:M3-M12; Aluminum:M3-M12; Stainless Steel: M3-M8
|
||
Work Scope
|
Horizontal Extension: 1100mm; Vertical Extension: 500mm Adjustable
|
||
Net Weight
|
22 KG
|
22 KG
|
|
Basic Configuration
|

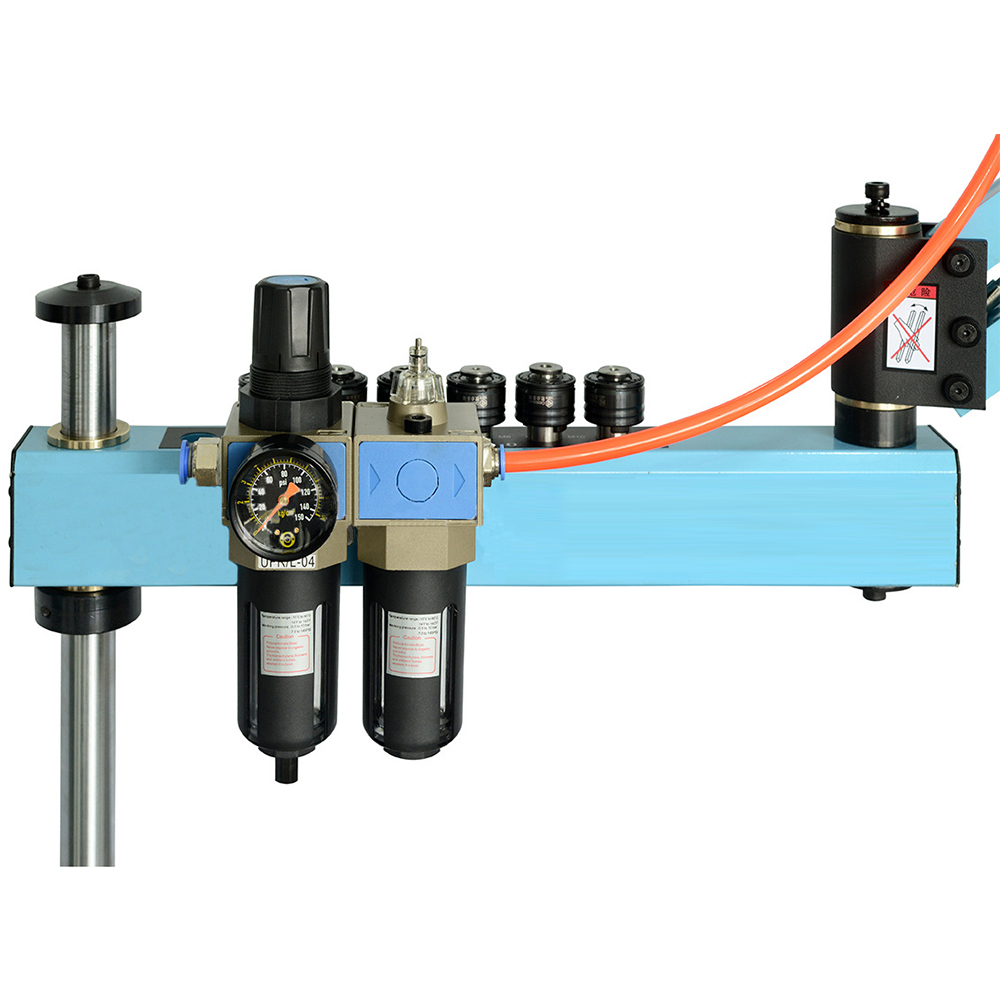

Joint Arm Bracket(set)

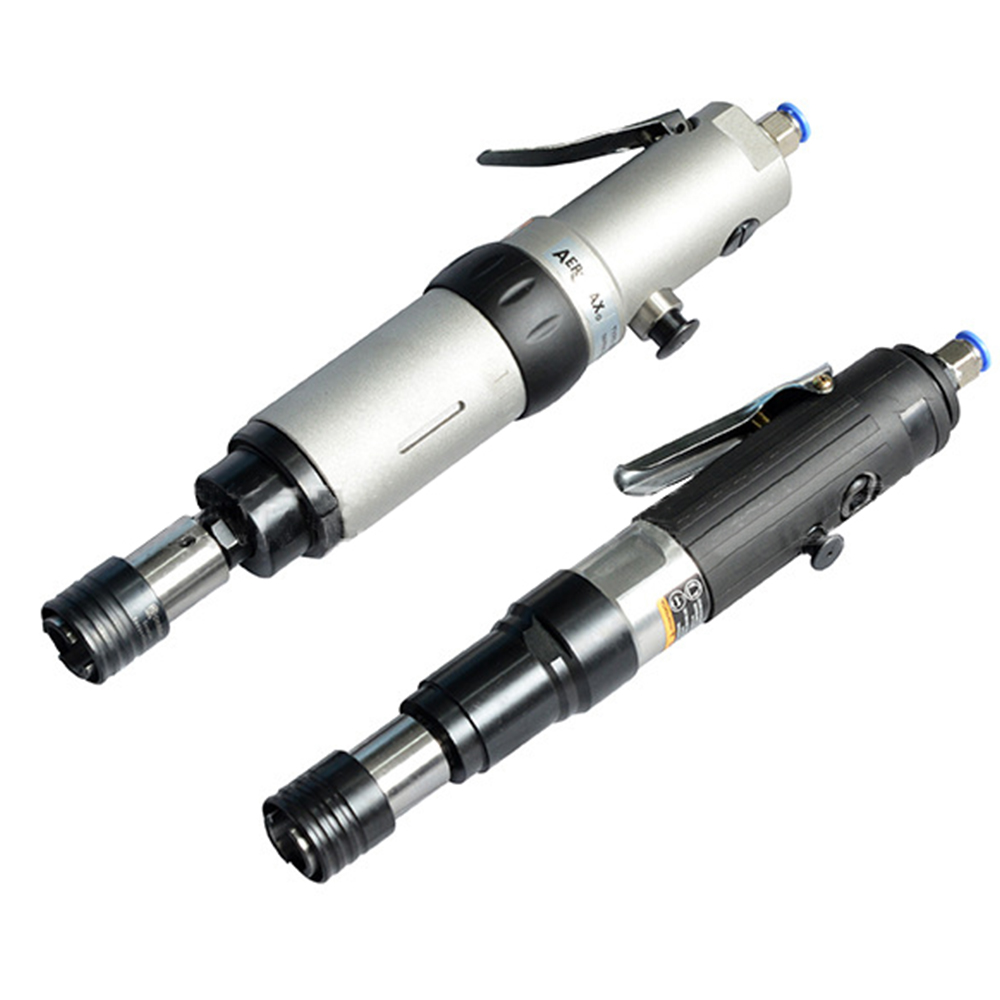

Air motor 250/450/r/min
Torque chuck M3-M12/M3-M16(set)
|
Joint Arm Bracket(set);
Air motor 250r/min;
Torque chuck M3-M12(set)
|
|
Optional
|
Univeral work head(for vertical/horizontal tapping)
Magnetic seat 300kg/600kg

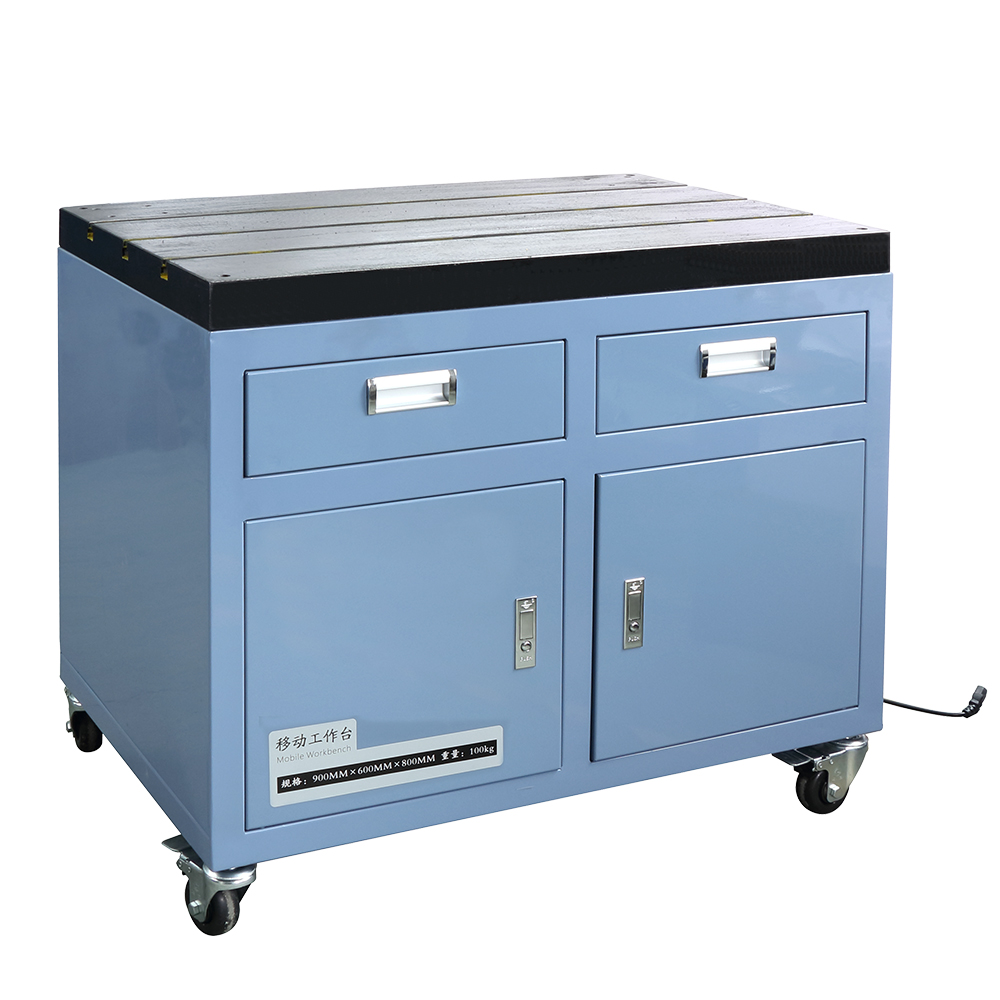

Mobile Workbench (mobile tapping machine)
|
1. Are you factory ?
Yes.Our factory in hangzhou. It is only one hour from Shanghai. welcometo visit the factory any time .
2. How long is your machine warranty ?
Warranty of Belton product is one year(Artificial damage and incorrect use is not included), within warranty period ,we will offer free part and maintainvideo, or ever can teach you face-to-face .if machine have serious quality problem ,
we support to back .
3. What is your shipping way ?
Express (DHL,Fedex,TNT),By air ,Or Sea. We will choose one shipping way to suit customers request.
Yes.Our factory in hangzhou. It is only one hour from Shanghai. welcometo visit the factory any time .
2. How long is your machine warranty ?
Warranty of Belton product is one year(Artificial damage and incorrect use is not included), within warranty period ,we will offer free part and maintainvideo, or ever can teach you face-to-face .if machine have serious quality problem ,
we support to back .
3. What is your shipping way ?
Express (DHL,Fedex,TNT),By air ,Or Sea. We will choose one shipping way to suit customers request.
