non contact flow meter clamp on Handled type flow meter
What are the features of non contact flow meter clamp on Handled type flow meter
High accuracy
Accuracy better than 1%.
Wide Measurement Range
Measurement range from DN15~DN6000mm
Rechargeable Power Supply
Built-in high-capacity NiMH rechargeable batteries will last more than 10 hours(Fully charged).
Non invasion measurement
Can achieve measurement with clamp on sensors
Data Storage
32K BIT built-in data storage,can store two thousand rows of data
LCD display
LCD display can display the instant flow,total flow,flow velocity and working condition

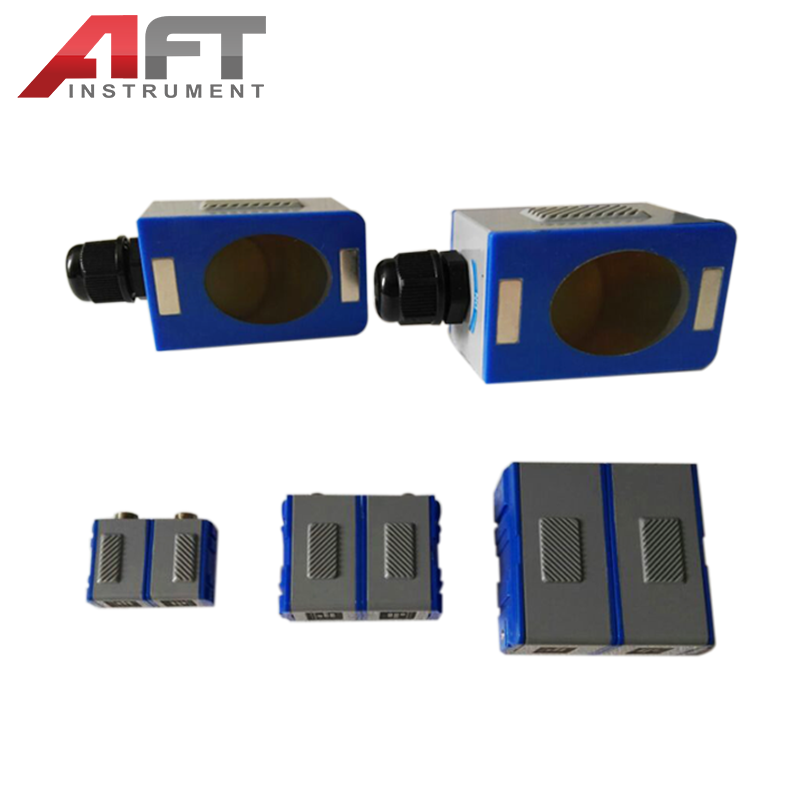

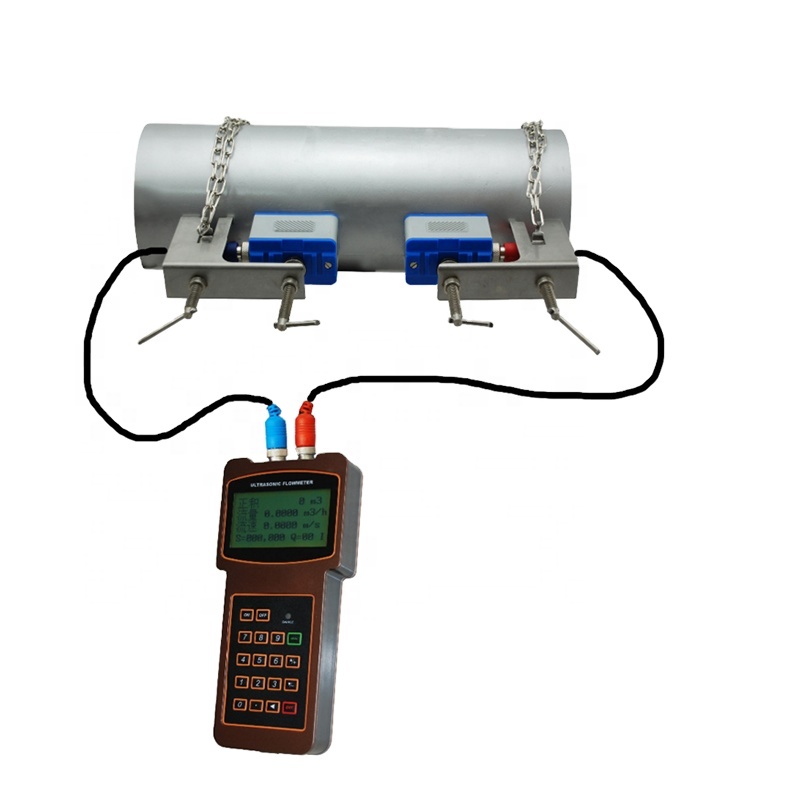

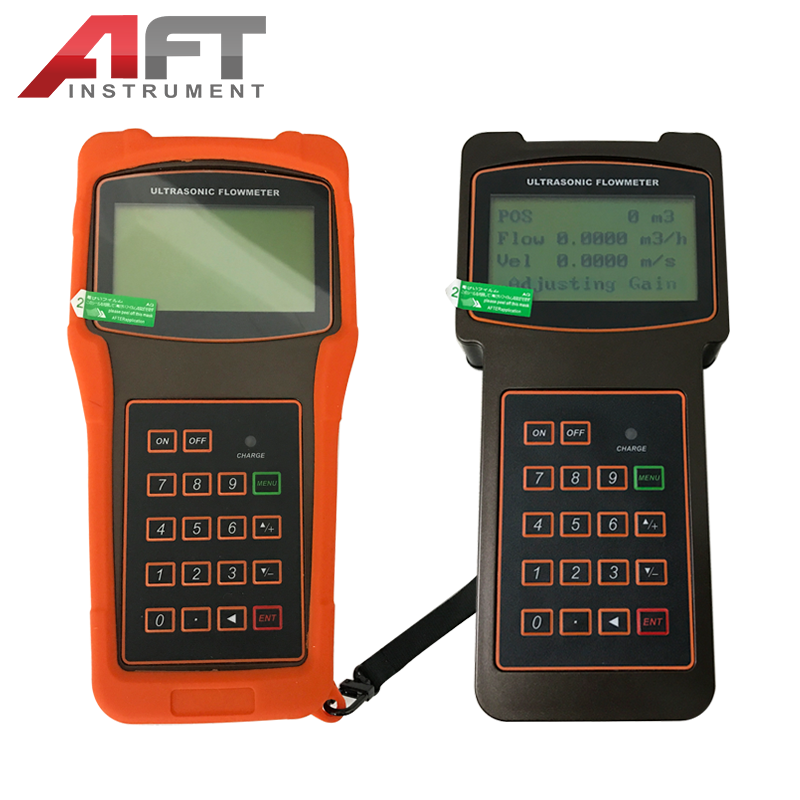

Detail images of non contact flow meter clamp on Handled type flow meter
Technical parameters of non contact flow meter clamp on Handled type flow meter
|
Type |
Performance parameter |
|
|
Transmitter |
Principle |
Ultrasonic transit-time principle, Four-byte IEEE754 floating arithmetic |
|
Accuracy |
Flow: Better than ±1% |
|
|
Display |
LCD display with Chinese, English, Italian language |
|
|
Output |
One OCT pule output(pules width 6-1000ms, Default 200ms) |
|
|
Data interface |
Isolation of 232 communication interface, can upgrade flowmeter through PC |
|
|
Pipeline Conditions |
Pipe Material |
Steel, Stainless steel, Cast iron, copper, PVC, aluminium, FRP etc.(liner allowed) |
|
Diameter |
15~6000mm |
|
|
Installation |
Upstream 10D,downstream 5D,30D away from the pump outlet(D for diameter) |
|
|
Medium |
Fluid |
Water,sea water,acid liquid,beer,alcohol,oil and any other liquid that can spread sonic |
|
Temperature |
Temperature: -30~160℃ |
|
|
Turbidity |
10000ppm and with little bubbles |
|
|
Velocity |
0~±10m/s |
|
|
Operating Environment |
Temperature |
Transmitter: -20~60℃; Transducer: -30~160℃ |
|
Humidity |
Transmitter: 85%RH; transmitter protection grade: IP67 |
|
|
Power |
Three internal 1.2V, 2000mAH rechargeable Ni-MH battery. Can work 12 hours fully charged. Can achieve continuous measurement with AC100-240V power adapter |
|
|
Comsumption |
1.5W |
|
|
Case Material |
Flame retardant ABS |
|
|
Weight |
Transmitter: 514g |
|
