15HP Air cooled chiller
|
Model
Item |
LC-15A |
Band |
|
|
Power supply |
380V/3PH/50HZ |
|
|
|
Nominal cooling capacity |
Kcal/h |
38565 |
|
|
kw |
45 |
|
|
|
Refrigerant |
Name |
R22(or R407C/R404A) |
Import of high quality refrigerant
|
|
|
Control method |
capillary |
|
|
Compressor
|
Type |
Scroll compressor |
Copeland(America)
|
|
Power(HP) |
5*3 |
||
|
Condenser
|
Type |
Finned copper tube+low noise outer rotor fan |
High efficiency Finned copper tube heat exchanger
|
|
Cooling air flow(m3/h) |
15240 |
||
|
power(kw) |
0.38*2 |
||
|
Environment Temp(dissipate heat |
≤45℃ |
||
|
Evaporator
|
Type |
Water tank with coil |
Water tank with coil
|
|
Chilled water flow (L/min) |
360 |
||
|
Thank volume(L) |
200 |
||
|
Inlet/out pipe caliber |
2″ |
||
|
Water pump |
Power(HP) |
2 |
Muchuan
|
|
Lift(m) |
15 |
||
|
Safety protection
|
Control pane |
Compressor overheating protection,over-current protection,high and low pressure protection,over temperature protection, flow switch protection,phase sequence or missing phase protection, exhaust overheating protection,antifreezing protection.
|
Punp |
|
High/low pressure gauge |
JAVE(Taiwan) |
||
|
Filter |
ALCO(America) |
||
|
Relay |
Schneider(France) |
||
|
Contactor |
Schneider(France) |
||
|
Power switch |
Chint |
||
|
Dimension
|
weight(kg) |
650 |
Wooden case |
|
LxWxH(mm) |
1680*830*1670 |
|
|
|
|
Surface treatment |
Mainboard :2mm, closingboard: 1.5mm |
Baking varnish |
1.The cooling capacity is based on: chilled water inlet and outlet water temperature 12 ° C / 7 ° C, cooling inlet and outlet water temperature 30 ° C / 35 ° C
Remark:
2.range of work:Chilled water(Temp range):5℃–35℃;inlet and outlet water(temp range) :3℃–8℃.working environment: ≤35℃(condensation Temp)
3.Conversion of units:1kw cooling capacity=860kcal/hr
1RT=3024kcal/hr 1kcal/hr=3.969BTU/hr 1HP=0.735KW

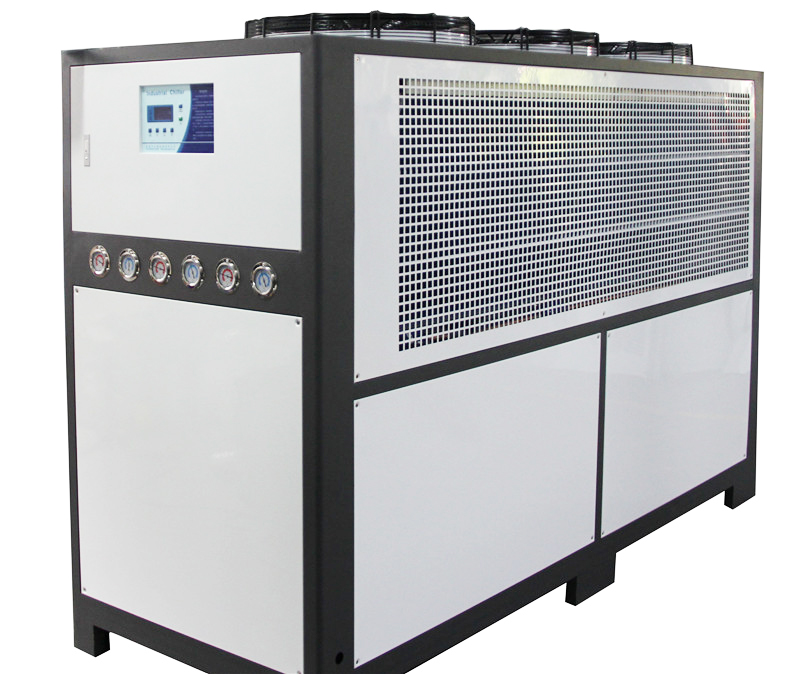

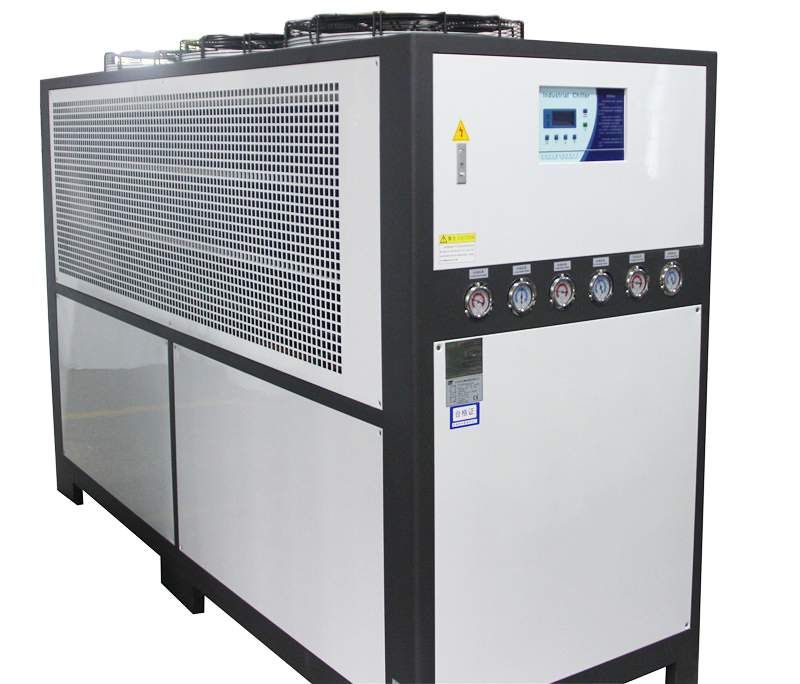

PRODUCT PICTURES
