Newest Static Date code Automatic Inkjet printer with conveyor
Product Description
Product Description
This series jet printer is developed and manufactured based on thermal foaming technology. The product is stable and easy to operate. It has user-friendly design, own information editing and storage system. It is suitable for various use scenarios and printing all kinds of materials.
Advantages: non-blocking nozzles,nozzles maintenance-free, plug-free 100-240V can be used, Ideal equipment for small and medium-sized factory customers, simple operation, maintenance-free, cost-effective. Satisfy customer’s demand for spray printing
Machine feature:
1. Direct controlled by single chip microcomputer, the system is very stable, and it will not slow down for a long time.
2. Each interface design is more humanized, the function design is more fool like, and the user is very easy to operate.
3. There are English dot matrix font library and dozens of commonly used entities and dot matrix font library.
4. Each file is independent of technical parameters to ensure that different files need not be adjusted. 5. Under the spray printing interface, the spray printing technology can be adjusted independently Technical parameters, more convenient operation
6. Flash jet, strong jet function, obtained the patent of nozzle blocking prevention
7. The system has its own optimization, can adjust the information blackness according to the needs 8. The ink jet volume can be adjusted, can adjust the information blackness according to the needs
9. The first ink cartridge squeeze maintenance method in the whole industry, very convenient to use.
Technical specifications:
| Printing fonts | High definition spray print font or dot matrix font; entity and dot matrix font can be mixed edited; |
| Number of Printing Lines | The number of rows can be chosen within 12.7mm, and the font with the height of 1mm to 12mm can be sprayed. |
| Special functions | Flash spray, strong spray, movablebar code, movabletwo-dimensional code, etc. |
| Spray Printing Content | Text, counter (changeable), time and date (changeable), bar code (changeable), two-dimensional code (changeable), picture, etc. |
| Machine System | Operating System of Thermal Foaming Printer |
| Spray Printing Speed | The maximum printing speed can reach 120 meters per minute, and the printing speed does not change with the increase of the number of rows; the maximum resolution is 600 DPI |
| Operating interface | Humanized operation of the english interface, including the english font; English menu; |
| Easy to operate: canachieve the effect ofoperation | |
| Spray Printing Material | It can be sprayed on metal, plastic, wood, aluminium platinum, carton, building materials, electronic products and other surfaces. |
| Ink Consumables | Use environmentally friendly fast-drying ink or water-based ink, without adding solvents, pollution-free, without external air source or built-in air pump |
| Communication Interface | Through the USB interface,the U disk uploads the required picture LOGO to the machine, upgrade program and so on. |
| Contact switch, pedal switch, sensor interface and synchronizer interface.It can set three induction trigger signals in thesystem: sensor induction, synchronizer induction, sensor and synchronizer mixing. |

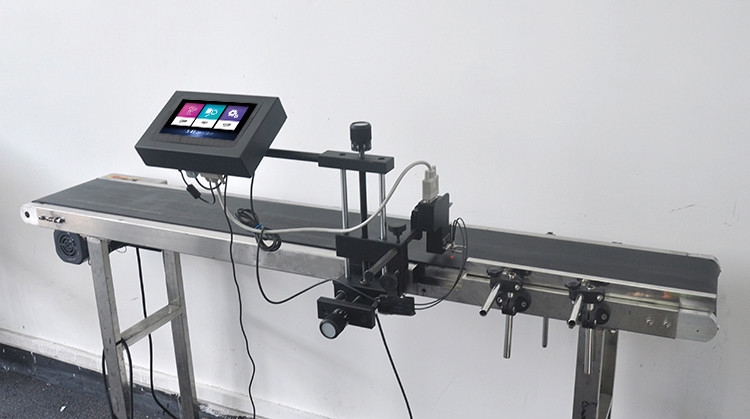

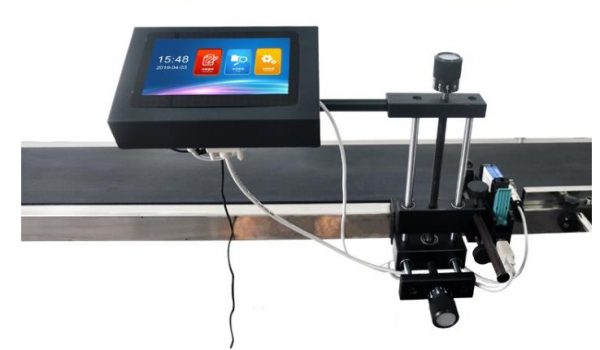

Machine Pictures
Print samples
