New Tractor Front End Loader Backhoe Digger Wheel Loader Backhoe Excavator for Sale

New Tractor Front End Loader Mini Compact Wheel Loader Backhoe Excavator For Sale

Product Description

You know what difference about our backhoe loaders?

Aowei backhoe loaders deliver the power and precise handling you need when operating in areas where using larger equipment is not practical.

Because of their relatively small frame size and versatility our backhoe loaders improve construction productivity and lower your machine operating costs.

Our backhoe loaders were designed as a system, which means every part plays a critical role.

It’s why we’ve made it easier to maintain your machine.

The shape of our buckets improves digging, loading and material retention.

Specification

Model	AW10-20	AW15-26	AW15-28	AW25-30
Dimensions	550017202650mm	580018502750mm	620019602850mm	680020402850mm
Operating Weight	3400 kg	4800 kg	5400 kg	6000 kg
Power	40 kw (55 hp)	55 kw (75 hp)	76 kw (104 hp)	92 kw (125 hp)
Gradeability	30°	30°	30°	30°
Travel Speed	0 – 26 km/h	0 – 26 km/h	0 – 30km/h	0 – 30 km/h
Working Pressure	16 MPa	16 MPa	16 MPa	16 MPa
Wheel Tread	1630 mm	1550 mm	1630 mm	1630 mm
Wheel Base	2670 mm	2150 mm	2670 mm	2670 mm
Tire Model	20.5 – 16	23.5 – 16	16/70 – 20	16/70 – 20
Tire Pressure	250 KPa	250 KPa	250 KPa	250 KPa
Transmission Type	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Braking System	Air Assist	Air Assist	Air Assist	Air Assist
Min. Turning Radius	3500 mm	4000 mm	4500 mm	4500 mm
Loading Parameters
Rated Load	1500 kg	2000 kg	2500 kg	3000 kg
Loader Capacity	0.75 cbm	1.0 cbm	1.25 cbm	1.5 cbm
Loader Max. Dumping Height	2800 mm	3300 mm	3500 mm	3500 mm
Loader Max. Dumping Distance	800 mm	900 mm	900 mm	900 mm
Loader Max. Breakout Force	36 kn (3672 kg)	36 kn (3672 kg)	42 kn (4284 kg)	42 kn (4284 kg)
Excavation Parameters
Bucket Capacity	0.1 cbm	0.15 cbm	0.2 cbm	0.3 cbm
Max. Excavation Depth	2000 mm	2700 mm	2600 mm	2600 mm
Max. Excavation Height	3300 mm	4200 mm	4300 mm	4400 mm
Max. Excavation Radius	2900 mm	4600 mm	4600 mm	4600 mm
Max. Dumping Height	1850 mm	2200 mm	2300 mm	2300 mm
Max. Breakout Force	25 kn (2550 kg)	28 kn (2856 kg)	28 kn (2856 kg)	28 kn (2856 kg)

Attachments options make our backhoe loaders multifunctional:

Invest in what you already own – give your machine attachments and equip it to do more. And because our attachments are engineered, balanced and tested to each model, they promise to minimize stress and optimize performance.

Product Details：

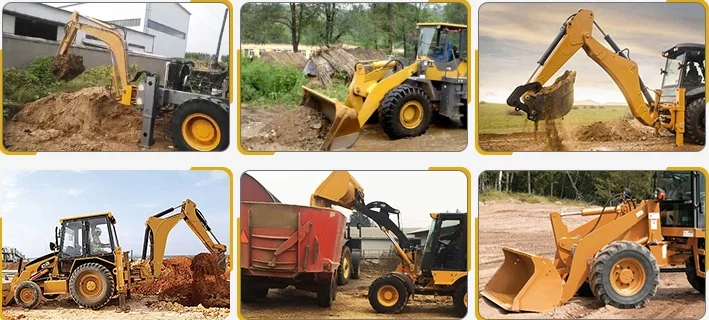

Products Application

Many applications – maybe you know, but more than you know::

Our backhoe loaders provide superior digging, trenching, back-filling and material handling capability and can be used for many applications, including but not limited to:
– General Construction.
– Demolitions and Excavations.
– Landscaping.
– Breaking Asphalt and Paving.
