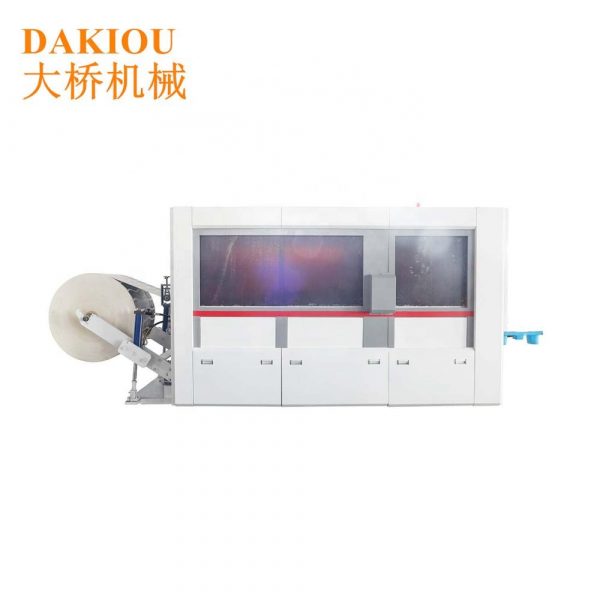

High Speed Paper Product Making Machine Napkin Paper Machine For Sale
Napkin paper making machine is used to making napkin paper by embossing,printing ,folding .And the embossing and printing style can be customized,the printing color can be 1 or 2 color (optioned).Variable choices will be provided to you ,we are confident that our product will meet all of your requirements.
Main Characterstic
1.Automatic counting ,the whold column,convenient packing .
2.High working speed ,low noise and easy operation ,suitable for home business
2.High working speed ,low noise and easy operation ,suitable for home business
3.As requested, this machine can be equipped with single color or double colors printing device.
Details Images
1. EMBOSSING UNIT
The embssing roller is steel to wool roller ,high plasticity and abrasion resistance ,good surface elasticity to achieve a good embossing effect.
2..FOLDING UNIT
The folding type can be N,M,V folding .Customers usually choose the v folding (1/4 folding ).Different Folding type can be achieved by changing the folding plate .
3.PRINTING UNIT
Customers can choose 1 or 2 color printing ,the printing method is rubber placte printing .the Rubber plate mold has a low product cost .The printing process is finished by the rubber plate after accross the pigment tank .It can be used to printing company logo or advertisment on the napkin.
4.CUTTING UNIT
Cutting process is finished by the band saw blade driven by independent motor.As per request ,auto counting and outputting in alignment can be materiallized.
Product Paramenters
|
Machine Model
|
FY 180-250
|
|
Finished Size(mm)
|
180mm*180mm-125mm*125mm
|
|
Paper Size(mm)
|
≤φ1300mm
|
|
Paper Core Inner Dia
|
φ75mm Standard(Other Size are Available)
|
|
Embossing Roller End
|
Cots,Wool Roll,Steel to Steel
|
|
Counting System
|
Electronic Counting
|
|
Power
|
4-8kw
|
|
Dimensions
|
3200mm*1000mm*1800mm
|
|
Weight
|
1000kg-3500kg
|
|
Speed
|
0-900sheets/minute
|
|
Optional Items
|
Automatic Paper Feeding,Synchronous Conveying and Printing
|
|
Use of Power
|
Frequency Control,Electromagnetic Speed
|
