mini gem stone setting machine/ring carving machine TJ4040

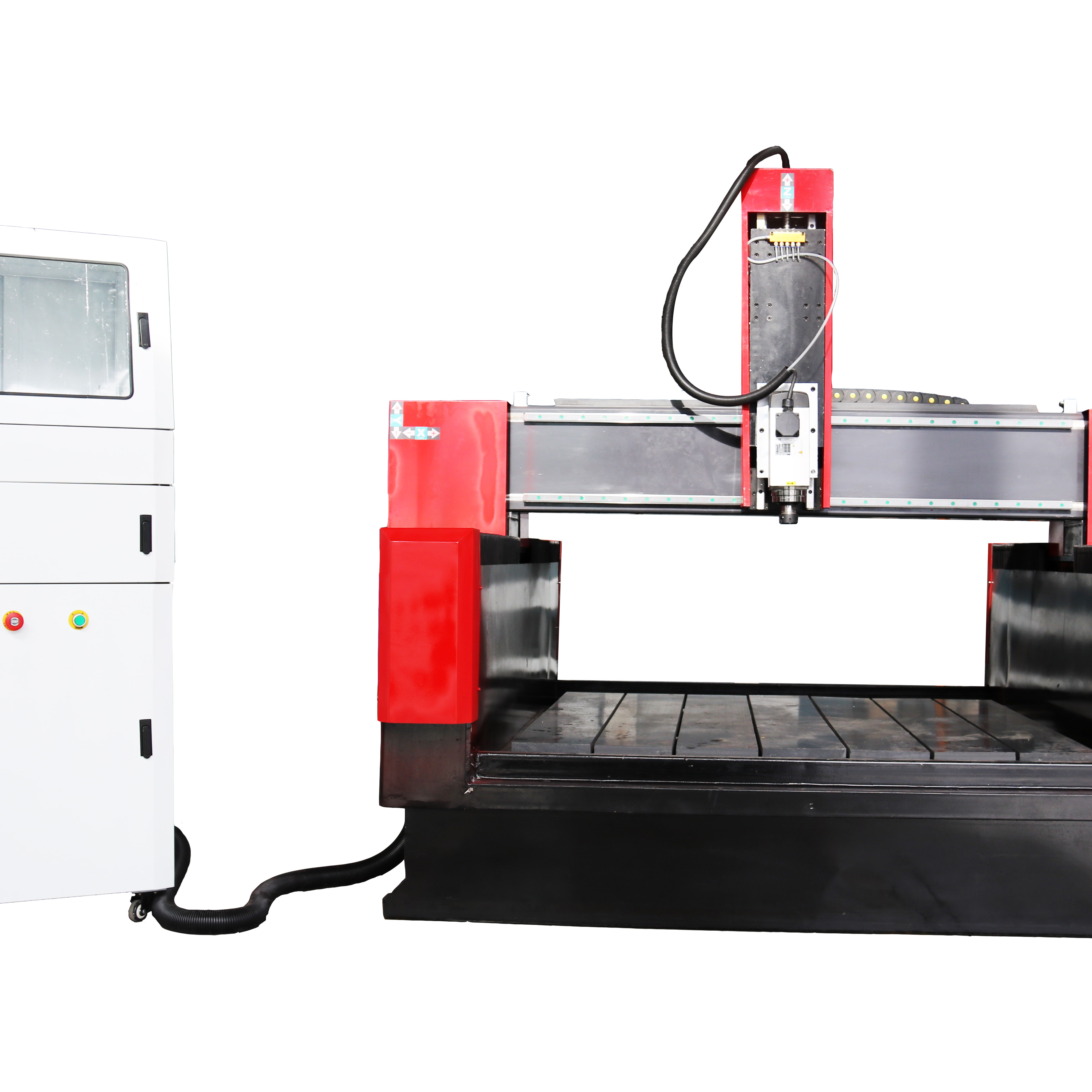

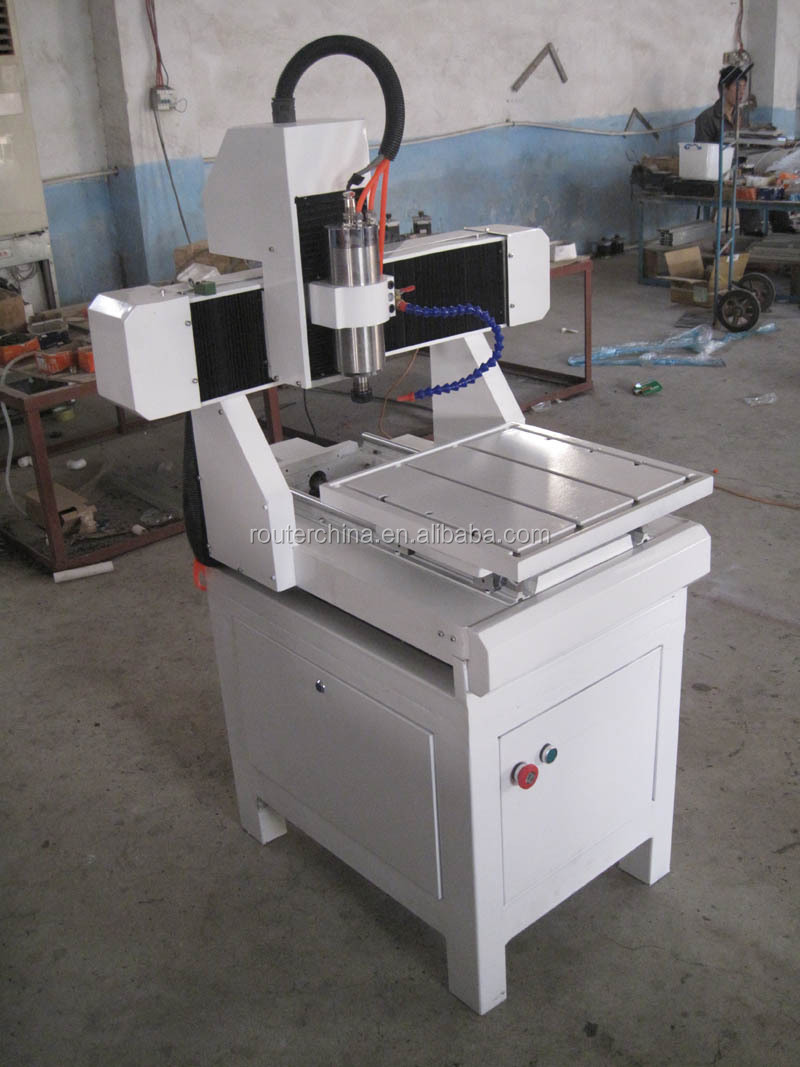

1.Pictures
2.Configurations:
square orbits (20),
Ballscrew (16)
NC-studio control system, (DSP control system need extra charge $317 )
original version UCANCAM software,
3kw water cooling spindle with imported bearing.
3. Standard Features:
Adopt Germanic double nut ballscrew and imported orbit.
Break point memory mode to make sure continuous working after electronic drop or other postpone situation.
Special saving mode of different pints
Gantry mode movement is more durable and will not distorte after long time use and the reposition precision is much better.
Widely used for architectural model, schools, companies and governments.
4.Parameters
|
NO. Description |
Parameter |
|
|
1 |
X,Y Working area |
600×900mm |
|
2 |
Z Working area |
120mm |
|
3 |
Max. speed |
8-10m/min |
|
4 |
Max working speed |
5m/min |
|
5 |
Working delicacy |
0.03mm |
|
6 |
Repositioning Accuracy |
0.02mm |
|
7 |
Max. feeding Height |
110mm |
|
8 |
Command |
G code*.U00*.mmg*.plt |
|
9 |
Surroundings for software |
windows98/2000/xp |
|
10 |
Power (spindle is not included) |
300W |
|
11 |
Working voltage |
AC220V 50Hz |
|
12 |
Spindle power |
3KW water cooling spindle |
|
13 |
Spindle rotating speed |
0-24000rpm/min |
|
14 |
Drive motor |
Stepper |
5.Samples:
Why choose Tianjiao product?
1.Tianjiao product is widely used in almost all the materials which you can think of.
2.Tianjiao Company is specialized in cnc router and cnc lathe machine manufacturing and selling.
There is no middle man and no agent, so the price is moderate.
3.Tianjiao machine with high precision and high reputation is the most reliable goods you can choose
4.Tianjiao Company has all kinds machines in store, the delivery time is much shorter than other
companies.
5.Tianjiao Company has international tech service office and provides 24 hours online service and tech
support for customers.
Our customers
Inside Packing
- Use professional Stretch Film to cover the whole lathe
- Stretch film package with foam protection in each corner.
Outside Packing
- Sandard export wooden cases and pylwood cases
- Save space as much as possible for container loading.
Transport
- We support shipping, air, land and express
- You can choose the most suitable way of transport
If you have any special request for packing, we can do it.
Before sale
- Patient introduce and professional suggest buying selection
- Real time report production situation
- Take pictures and make videoes with your done machine
- Strict test and debugg machine quality before shipping
After sale
- 24 hours on line service and phone on
- 2 years gurantee term
- During gurantee term, repair or change damaged parts for free
- Exceed gurantee term, offer at cost price
