Products Description
Fire prevention design
The ignition of high-power modules is a safety issue that cannot be ignored.
Laser Light Shield
More colorful

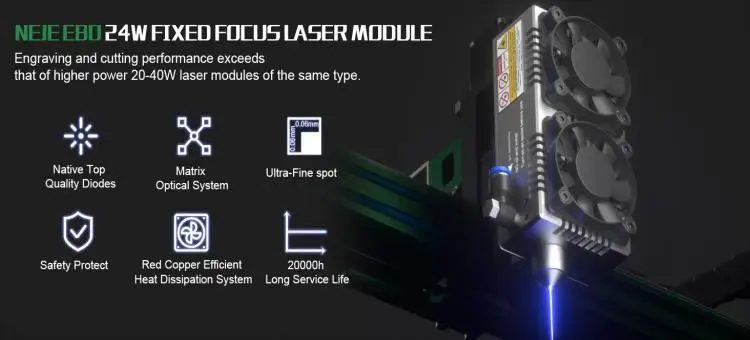

The focal point of NEJE E80 0.06×0.06mm,the symmetrical XY shape make it achieve the
ultimate in engraving and cutting performance and the power density reaches 6666W/mm²,Compared with other 40W(output) module,power density: M1777W/mm²(0.15×0.15mm,8xLD,Current highest power),the performance of E80 is higher than the 40W module.
ultimate in engraving and cutting performance and the power density reaches 6666W/mm²,Compared with other 40W(output) module,power density: M1777W/mm²(0.15×0.15mm,8xLD,Current highest power),the performance of E80 is higher than the 40W module.

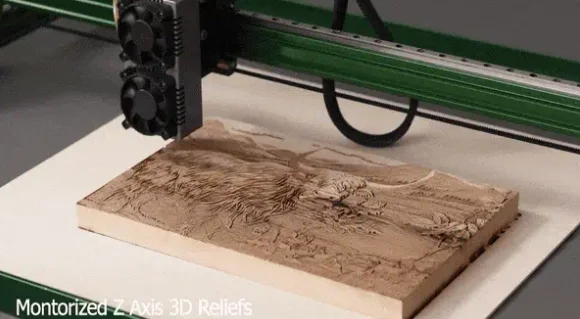

Deep Engraving
Take advantages of motorized z-axis for multi-layer engraving to achieve various 3D effects.
Compared to traditional CNC milling,the production of 3D relief with E80 module can present more details and it’s more efficient.
Uneven Material Engraving
engraving uneven materials such as plates, natural wood, and multi-layered stone, the material surface.
With the motorized Z-axis equipped with precise focal length control capabilities, achieving an accuracy of 0.01mm is possible.
Combined with 4K+ lens, enabling the 3D multi-layer engraving and cutting .
With the motorized Z-axis equipped with precise focal length control capabilities, achieving an accuracy of 0.01mm is possible.
Combined with 4K+ lens, enabling the 3D multi-layer engraving and cutting .
0.1mm stainless steel cutting, 1 pass, 300mm/min
The focus of the E80 module can cut 0.1mm thick stainless steel plates easily at a speed of 300mm/min. Perhaps you rarely cut metal materials, but due to this characteristic of the E80, its grayscale and color carving effects on metal will be more exquisite and impressive. For high-density fiberboard, E80 has stronger cutting ability, plywood are great as well.
|
Design Difference
|
NEJE E80 4xLD
|
Other 6xLD
|
Other 8xLD
|
|
Light source
|
Nichia original top LD, Collimating light source
|
Remove the LD protective cover and re-seal the LD, Divergent
|
Remove the LD protective cover and re-seal the LD, Divergent
|
|
Light path
|
Array lens compression
|
Reflective focus（The reflective angle is very large,can’t get small focus, and the material is particularly easy to catch fire）
|
Reflective focus（The reflective angle is very large,can’t get small focus, and the material is particularly easy to catch fire）
|
|
Light source life
|
20000 hour
|
2000 hour
|
2000 hour
|
|
Thermally conductive material
|
red copper
|
Aluminum
|
Aluminum
|
|
Working hours limit
|
unlimited
|
Continuous work fast decay
|
Continuous work fast decay
|
|
Fan Status Control
|
Engraving and light cutting status Low speed (quiet), high speed for continuous cutting
|
No
|
No
|
|
Temperature feedback
|
Yes
|
No
|
No
|
|
Quality Tracking
|
2-year standard after-sales service process, commodity ID registration system.
|
No
|
No
|
|
Focus size
|
0.06×0.06
|
0.15×0.15
|
0.15×0.15
|
|
X:Y Angle
|
X = Y
|
X ≠ Y
|
X ≠ Y
|
|

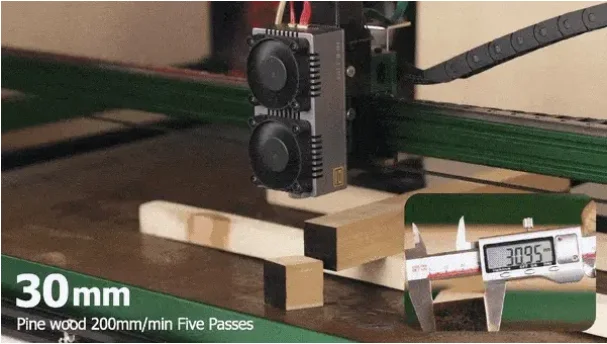

17mm pine board cutting speed
|
2.5 pass，100%，300mm/min
|
6pass，100%，300mm/min
|
5pass，100%，300mm/min
|
|
Engraving speed（canvas）
|
> 24000mm/s
|
< 24000mm/s
|
<24000mm/s
|
|
2023 NEJE E80 ENGRAVER Cutting 460 x 750mm laser engraving machine
|
||
|
Model No.
|
NEJE Max 4 E80
|
|
|
Frame Size (L – W – H):
|
970x582x60mm
|
|
|
Working Area( X – Y):
|
750 x 460mm, Extends to 750x1030mm
|
|
|
Drive Accuracy:
|
XY-axis repeat positioning accuracy 0.01mm, Z axis 0.001mm
|
|
|
Number of Controllable Axis:
|
X,Y,Z,A four axis
|
|
|
Input Voltage:
|
12V / 24V, Match according to module voltage
|
|
|
Limit Switch:
|
Build in X Y Z
|
|
|
Max Move Speed:
|
750mm/s
|
|
|
GRBL Offline Control：
|
Yes
|
|
|
M7,M8,Door Extension：
|
Yes
|
|
|
App control：
|
Yes
|
|
|
MEMS：
|
Yes
|
|
|
NEJE Software OTA Upgrade:
|
Yes
|
|
|
Vertical Carving:
|
Yes(90°)
|
|
|
Systems Support:
|
Win 7/Win 8/Win 10, Android, iOS, ipadOS, macOS
|
|
|
File Format Supports:
|
GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc.
|
|
|
Optical Power:
|
Pulse 24W, CW 21W
|
|
|
Focus Size:
|
0.04×0.06mm
|
|
|
Input:
|
24V 5A
|
|
|
Interface:
|
4pin PH2.0 + ( 2pin DC 24v extra power)
|
|
|
Weight:
|
600g
|
|
|
Number of Diodes:
|
4
|
|
|
PWM Input:
|
VPP(3.3-24V), Recomend 1KHz
|
|
|
Quiet Design:
|
Drive the built-in control ic, judge the working state and adjust the fan work
|
|
|
Adapter Pluga:
|
5.5 2.1 port
|
|
|
Working Voltage:
|
DC 24V
|
|
|
TTL&PWM Modulation:
|
YES. Compatible with Both TTL & PWM Modulation
|
|
|
Input Interface:
|
PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) ,
2Pin+2Pin (+,-) + (PWM/TTL,-)
|
|
|
Systems Support:
|
NEJE Software for Win 7 / Win 8/ Win 10, app for android, iOS, ipadOS, macOS
LaserGRBL with firmware GRBL1.1f. LightBurn Software with firmware GRBL1.1f. LightBurn ( paid software from the official website of Lightburn.) |
|
