Ndt Test Non Destructive Equipment Concrete N Type Graph or Schmidt on Strength Smith Swiss Rebound Hammer Unit

ر.س1,995.43

Qty:
Print Send to a friend
SKU: 211389154019181 Categories: , ,
Product Display

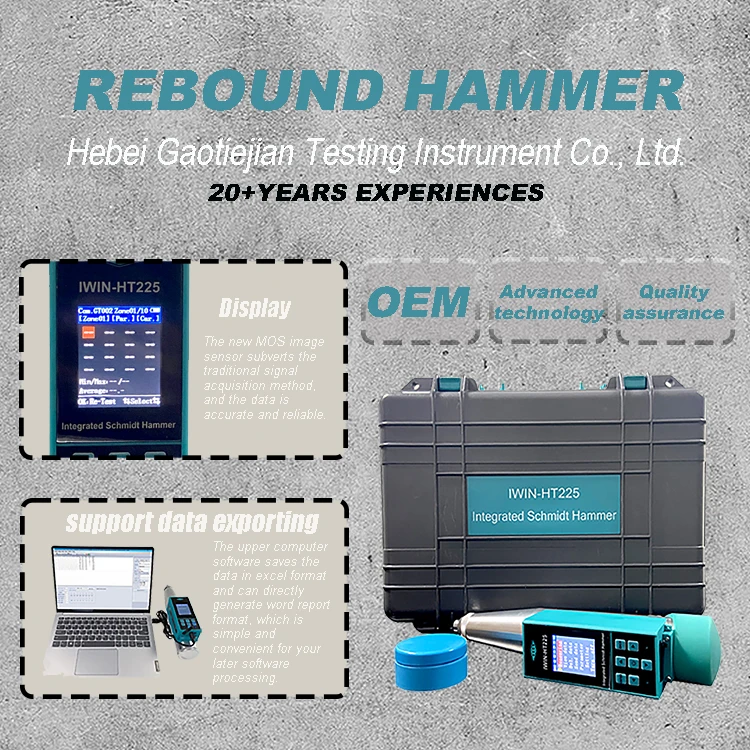

HT225 fully automatic integrated resilience tester is used for non-damage detection and assessment of compressive strength of hardened concrete in building structures.It can detect and record the parameters such as rebound value, carbonization depth value, Angle and test surface.The strength estimation results of the component can be given immediately after testing.
transducer
mos image sensor
input mode
Automatically record the rebound value
data processing
Automatic data correction, calculation and statistical analysis according to the specification
display usage
LCD
system capacity
Two hundred thousand observation points
power supply mode
Rechargeable large capacity lithium battery
volume
123mm×55mm×25mm
weight
200g
operating ambient temperature
-10℃~45℃
The kinetic energy of the nominal
2.207J
Spring stiffness
7.84N/cm
Impact hammer stroke
75mm
Steel anvil rate set rebound value
80±2
Products Description
