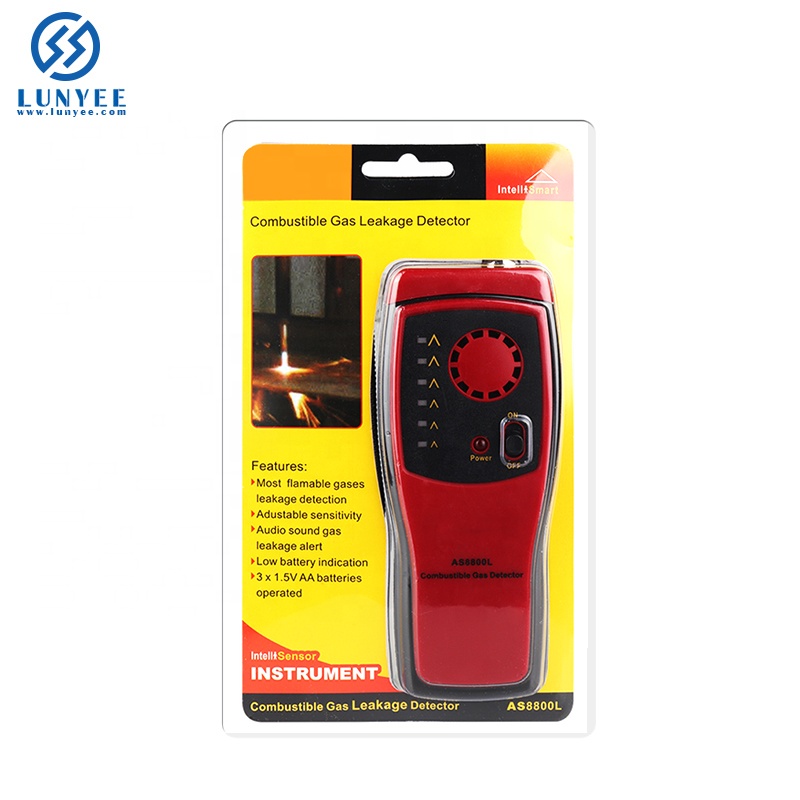

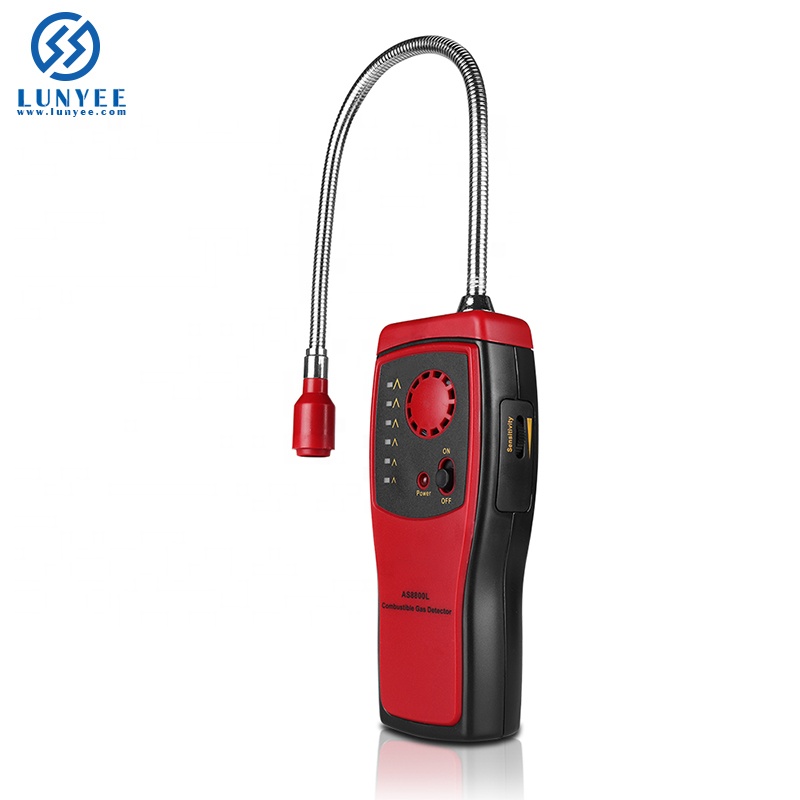

SMART SENSOR combustible gas leak detector with visual leakage indicator, can detect gas leakage. All you need to know the high reliability testing instrument in the use of all kinds of refrigerants, alkanes, combustible gas and fuel oil is of great value in the environment of universal instruments.
Can be used to detect hydrocarbons (methane, natural gas, gas, ethane, propane, benzene, Acetylene, propane, N,N,N,n, Pentane, hexane, gas oil, toluene), halogenated hydrocarbons(methylchloride, methylene chloride, three chloride, vinyl chloride), alcohols(methanol, ethanol)etc.
Features:
1. Portable detector for detecting all combustible gas.
2. Long flexible stainless probe reaches all areas.
3. Audible semiconductor probe and auto fast warm-up.
4. Instant response, pinpoint leak position and low battery indication.
5. Audio & visible leakage alarm indication and adjustable sensitivity.
6. Compact size, light weight, easy to carry and operate.
|
Color:
|
Red + Black
|
|
Material:
|
ABS Plastic
|
|
Detection Gas:
|
Combustible Gas
|
|
Sensitivity:
|
Variable, Minimum 50 PPM (methane)
|
|
Alarm Mode:
|
sound alarm and light alarm
|
|
Response Time:
|
Instantaneous
|
|
Warm-Up Time:
|
< 20 Seconds
|
|
Battery Type:
|
3 * AA 1.5V Alkaline Batteries (NOT Included)
|
|
Duty Cycle:
|
3 Years
|
|
Response Time:
|
Instantaneous
|
|
Continuous Operation Time:
|
9 hours(slightly vary with working condition)
|
|
Probe Length:
|
35.5cm / 13.98in
|
|
Operating Temperature:
|
0~50℃, Relative Humidity 0~80%
|
|
Storage Temperature:
|
10~60℃, Relative Humidity: 0~70%
|
|
Item Size: Approx.
|
160 * 65 * 33mm / 6.30 * 2.56 * 1.30in (L * W * H)
|
|
Item Weight: Approx.
|
175g / 6.17oz
|
|
Package Size: Approx.
|
23.5 * 14 * 4cm / 9.25 * 5.51 * 1.57in (L * W * H)
|
|
Package Weight:
|
Approx. 214g / 7.56oz
|
Operation instruction:
1. Turn the unit off and the sensitivity knob fully counter clockwise.
2. Turn the unit on in a non-contaminated atmosphere by slide the switch to ON, the power indicator will be lit. Power indicator keep on light show the battery power is sufficient, it ensure the unit precise detection.
3. After turn on, the unit will auto warm-up within 20 sec, a ticking sound will be heard.
4. Adjust the sensitivity control until the first leak indicator light up, the ticking speed up.
5. Approached the sensor to a known leak source, the leak size indicate lights will increase with the rapid ticking. Above steps to ensure the unit working correctly, now the unit are ready to use. If the battery power in sufficient state but the sensor approach a known leaks without any responds, do not use the instrument, please return for repair.
6. In conjunction with the increased tick rate, the leak size indicator will light from down to top as a larger combustible concentrations.
7. Search the general area of the leak. When a detectable compound enters the sensor, the ticking speed up.
8. If you are searching for a heavy leak source, please lower the sensitivity in a clear air by turning the adjustable knob (until the leak size indicator turn off).
Features:
2 Auto fast warm-up
3 Alarm indication
4 Low battery indication
5 Leak size indication (Audio and Visible)
6 Instant response and pinpoint leak position.

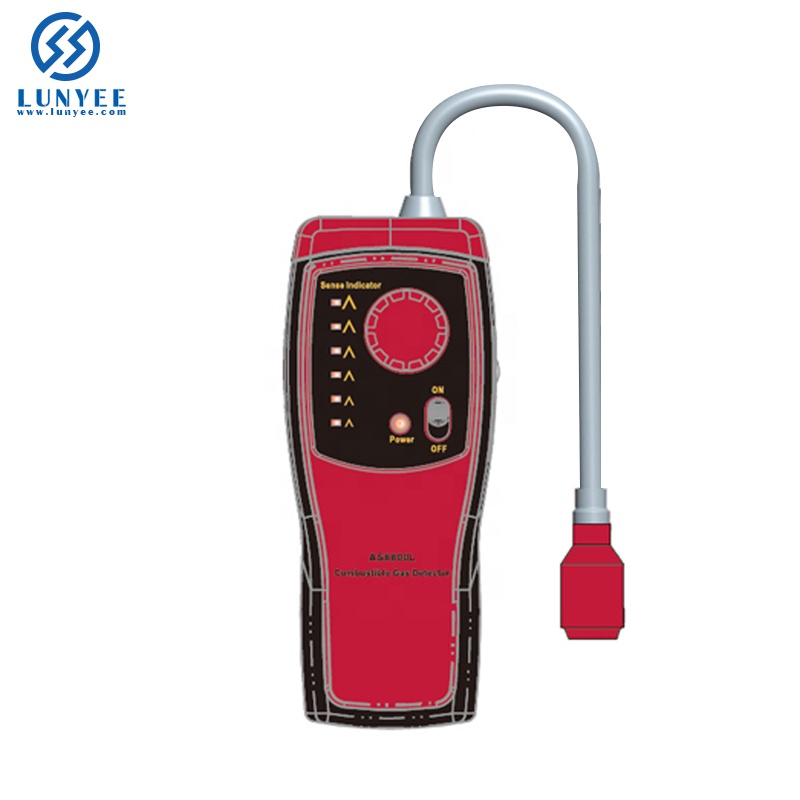

Diagram and description:
① ON/OFF switch
② Power indicator
③ Leak size indicator
④ Speaker
⑤ Sensitivity adjust knob

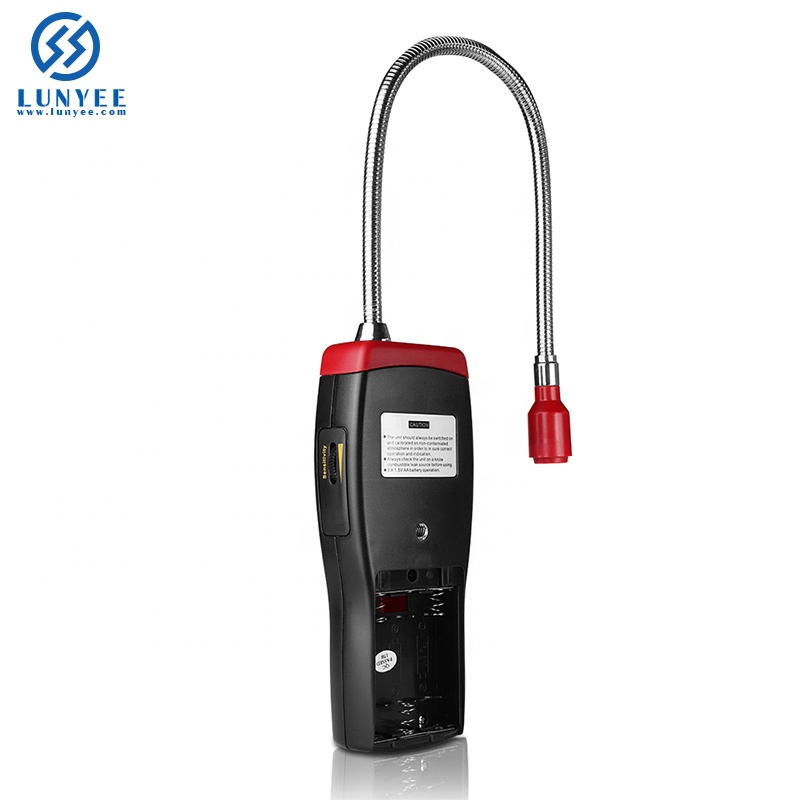

⑥ Battery compartment
⑦ Flex probe
⑧ Probe knob
Warm Reminder
1. All products with original packaging box, so that can protect the products well on the shipping way avoid damage.
2. The product does not contain the battery because of the limitation of the airline company.
3. Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.
