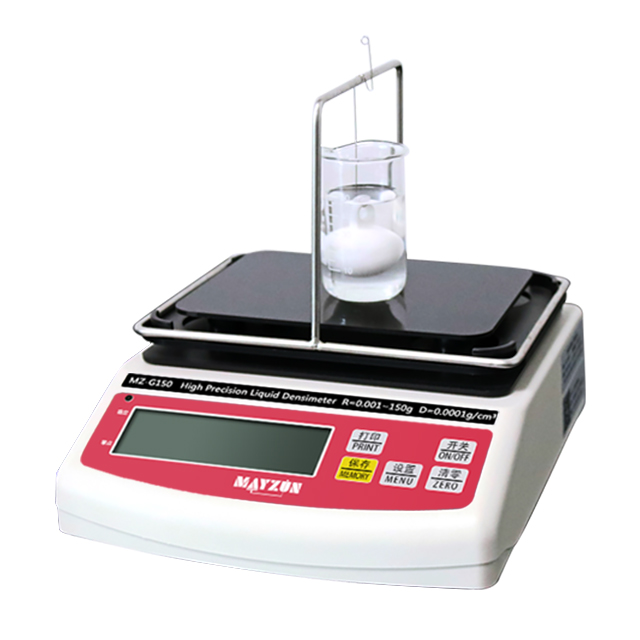

MZ-G200 Economic Electronic Hydrometer Liquid Densitometer
Model:MZ-G200 ,MZ-G300,MZ-G150
Suitable for:
Chemical solution, Food Industry, Aquaculture Industry, Mouth wash,Medicament, Research Laboratory
Principle:
In accordance with GB/T13531, T5526, T5009, ASTM, JIS, ISO standards, and by adopting the buoyancy method and water displacement method of Archimedean principle, the density and concentration can be showed rapidly.
Functions:
(1)1.Using German HBM sensor, the reading is stable, the overload is automatically protected , the sturdy and durable, the warranty is three years.Density value can be showed by one procedure,and repeatedly continuous rapid measurement can be worked.
(2).Imported silent mechanical buttons in Japan, you can respond to readings with a touch of 0.1 seconds, sensitive and fast, lifetime warranty.(2)Digital display; High accuracy of measurement;Simple operation; Stable and durable.
(3)Density value of samples with temperature from normal to 250centigrade can be measured.
(4)Take samples conveniently;50CC or less would be okay.
(5)It is very easy to clean measurement cup,and can’t got the limitation of the size of pycnometer caliber.
(6)Adopt completed windproof and dustproof cover,which makes the structure convenient and durable.
(7)Adopt completed stainless steel measuring hook.
(8)Coordinate with operation of thermostatic tank to measure the proportion with required temperature.
(9)Function of displaying concentration,density .Volatile liquid,corrosivity liquid,vicidity liquid,strong acid and strong lye liquid can be measured quickly.
(10)Interface of RS-232C is included.the printer of MZ-P1 is available to connect PC with instrument.
Specifications:
MZ-G200 Economic Electronic Hydrometer Liquid Densitometer
|
Model |
MZ-G200 |
MZ-G300 |
MZ-G150 |
|
Weighing range: |
0.01-200g |
0.01g~300g |
0.001g-150g |
|
Density accuracy: |
0.001 g/cm3 |
0.001 g/cm3 |
0.0001g/cm3 |
|
Density repeatability: |
±0.003g/cm3 |
±0.001g/cm3 |
±0.0001g/cm3 |
|
Concentration repeatability: |
±0.1%~0.001% optional (repetitive) with error compensatio |
||
Density, concentration range:
0.001~99.999g/cm³,0.1%~100%
Measurement type:
Any fluid liquid can be measured (true solution, dispersion, suspension, emulsion, viscous liquid, slurry, etc.), such as: flux, pine perfume, ethanol, ethylene glycol, methanol, Sulfuric acid, copper sulfate, sodium hydroxide, potassium hydroxide, sodium chloride, alcohol, electrolyte, vegetable oil, grease, resin, flour, soy milk, milk, etc.)
Measuring principle:
The principle of the Archimedes replacement method, the test time is about 5 seconds.
Liquid mode measurement step:
Take about 50ml of sample, put the standard block in the sample, one-click direct reading density (specific gravity), concentration%
The results show:
Liquid density, specific gravity, concentration%
Parameter setting:
Standard block density, concentration linear parameter, specific gravity upper and lower limits can be set
Correction method:
One-button automatic correction
Output method:
RS-232C standard communication interface, convenient test data output and printing
Power supply:
AC~220V / 50HZ(The export power supply needs to be customized, and it can be noted before ordering.)
Accessories:
1.Liquid specialized frame 2. Teflon weight (fall resistant, acid and alkali resistant) 3.Hook 4.50CC beaker 5. Support plate 6. Main-body 7. Calibration weight
8. AC adaptor 9. Thermometer
Measuring Procedure:
Measuring Procedure:
1.How about quality and warranty of our products?
When you receive a product from Qun Long, it must be debuged by our production staffs,technical staff and warehouse management. And our technical staffs have more than 10 years experience. We can guarantee the warranty for three years from the date of receipt. If our machine fails to perform properly because of defects in materials or workmanship during three years warranty, We will be responsible for fixing or replacing new machine .
2.How about after-sales Service
(1)If errors occur, please refer to the troubleshooting tips of the instruction manual
(2)Please contact with our after-sales service department or distribution in time if can’t clear fault
(3)When you contact us with a service problem, we will act within 12 hours and provide solution within 24 hours.
(4)After-sales line : 0755-82596242
(5)If the product have some big troubles and it must be sent back to our factory to repair during its warranty period, you just need to shipping the product to us and we will sent you a new one.The service is excluding if the machine is breakdown caused by following reasons:
a:Wrong operation
b:Fixed or refitted personally
C:The machine itself is not the reason caused breakdown
d:Applying the machine under the serious condition. Such as high temperature, moist, corrosive gas, or vibration.
e:Move or transportation as soon as installed
f:Consumables and easy-loss components
g:Natural disaster
3.How many days can you receive the products?
Product in stock will be sent within 48 hours. Delivery time is about 5-7 days.
4.How to shipping the product?
Product will be sent by International Express by air. Such as DHL, UPS, FEDEX, TNT, SF.
5.What is our return Policy?
You are allowed to return goods within 7 days from the date of receipt. To return products,please contact our customer service with your invoice number, the item to be returned and the reason for the return. Goods must be returned freight prepaid. Returns will be subject to a restocking charge. Products can not be returned back when the products have been used or modified.
6.Are we original manufacturer ?
We are the original manufacturer for densimerter, Mayzun is our own brand. The model starts with MZ is belongs to us generally.
7.Why choose us?
Qun Long have been specialized in density field since 2009. Qun Long as a professional density meter supplier , has maintained a constant belief:First – class quality , professional technology team and services team,ample supply and prompt delivery.
