multifunctional mini cnc wood lathe for beads/ gourd /teeth rings
video for you reference
https://www.youtube.com/watch?v=VqMtwyjLRtk (wood beads )
https://www.youtube.com/watch?v=luxAx_oq2Xo
Details
|
Model |
TJ 3080 |
|
Max. swing over bed |
80mm |
|
Distance between centers |
300mm |
|
Spindle bore |
21mm |
|
Taper of Spindle bore |
MT3 |
|
Range of Spindle speeds |
50-2500rpm |
|
Taper of tailstock quill |
MT2 |
|
Metric threads can be cut |
0.5-3mm |
|
Inch threads can be cut |
10-44TPI |
|
Max travel of cross slide |
75mm |
|
Bed of width |
100mm |
|
Travel of Tailstock sleeve |
60mm |
|
Motor power |
650W |
|
Driver |
Stepper motor |
|
Transmission |
Square orbit ballscrew |
|
GW/NW |
75/60KG |
|
Package size( L*W*H ) |
780*480*420mm |

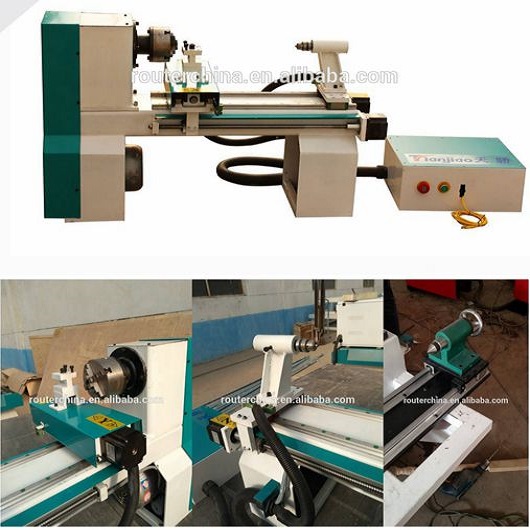

Machine parts
1.high speed rotary
2.high precision round guide and heavy cast iron lathe bed
Sample
Before sale
- Patient introduce and professional suggest buying selection
- Real time report production situation
- Take pictures and make videoes with your done machine
- Strict test and debugg machine quality before shipping
After sale
- 24 hours on line service and phone on
- 2 years gurantee term
- During gurantee term, repair or change damaged parts for free
- Exceed gurantee term, offer at cost price
Inside Packing
- Use professional Stretch Film to cover the whole lathe
- Stretch film package with foam protection in each corner.
Outside Packing
- Sandard export wooden cases and pylwood cases
- Save space as much as possible for container loading.
Transport
- We support shipping, air, land and express
- You can choose the most suitable way of transport
If you have any special request for packing, we can do it.
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial
invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be
20 – 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
