Product Description

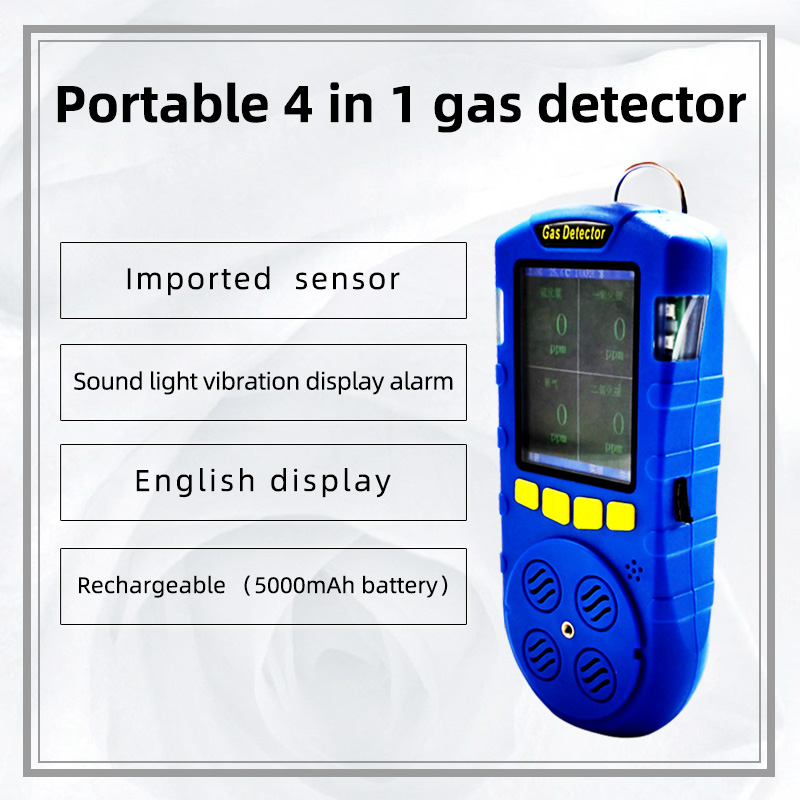

Portable 4 in 1 Gas Analyzer
This portable multi analyzer can test 4 kinds of gas concentration by natural diffusion model at the same time, also can test the temperature and humidity in the environment,can connect with external sampling pump.
Brief Introduction:
√ High precision sensor from UK
√ Up to 4 gas can be detected
√ Detect Temperature & humidity
√ LCD color display in English
√ Sound,light and vibration alarms
√ Two alarm points,adjustable
√ Back alligator clip design
√ Data logger in real time
√ Low voltage reminder
√ USB charger,5000mAh Li battery
√ Computer connection is optional
√ CE and ATEX certificates
√ One year warranty
Advantages
Advantages of this portable multi detector:
1. 2.8 inch TFT color screen;
2. Switch languages with one key;
3. Up to 4 kinds of gases can be detected at the same time;
4. Flexible combination for different sensors, support CO2 and VOC;
5. LCD real-time display for gas concentration and alarm status;
6. Can detect the temperature and humidity in the working environment;
7. With real-time calendar, clock, can be set;
8. Vibration, flashing light and sound three alarm mode, alarm can be manually silenced;
9. Four buttons, compact size, easy to operate and carry;
10. Have TWA and STEL display function;
11. 5000mAh Large capacity lithium battery charging;
12 Strong high-grade crocodile clip, easy to carry in the process of operation;
13. High strength special engineering plastics shell, strong and durable, beautiful and comfortable;
14. Can store 3,000 alarm records and 990,000 real-time records, can view records on the detector;
15. Optional function: export data to computer by USB cable,default without it;
16. Support external sampling pump connection for confined space;
17. 100% strictly inspection before package and fast delivery.
16. Support external sampling pump connection for confined space;
17. 100% strictly inspection before package and fast delivery.
Data logger and transfer function : ( Optional )
Connection with computer to save, transfer and printing data function is optional,detailed instruction refer to portable configuration software manual.
Portable multi gas detector used alone
Detect gas concentration by natural diffusion model

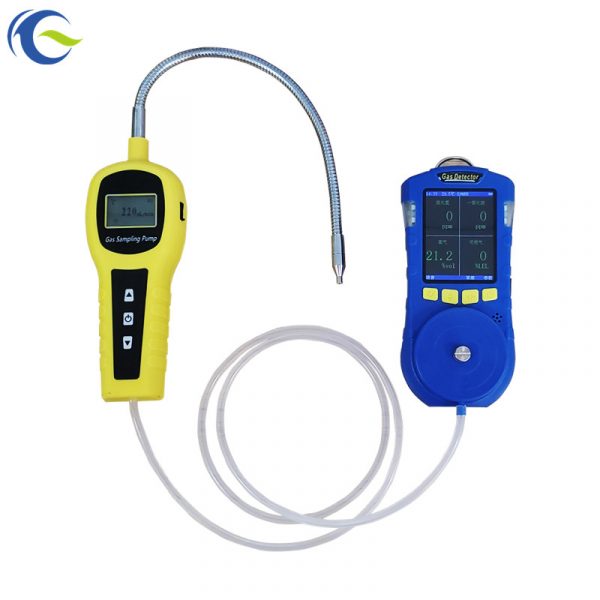

Portable multi gas detector used with external pump
Detect gas concentration by pump,used in restricted space
Specification
|
Product name
|
Factory supply new portable rechargeable multi gas detector
|
|
Size and weight
|
170mm*75mm*47mm, about 293g
|
|
Sensor types
|
electrochemistry,catalytic combustion,Infrared,PID and special.
|
|
Destination gas
|
CO O2 H2S EX (other gases can be combined freely)
|
|
Range and resolution
|
CO 0-1000ppm 1ppm
O2 0-30%vol 0.1%vol
H2S 0-200ppm 1ppm EX 0-100%lel 1%lel |
|
Response time
|
T90≤30s (except for special gas)
|
|
Display
|
2.8 inch TFT color screen LCD English display
|
|
Additional display
|
show real time year, month, day, clock,temperature and humidity
|
|
Alarm
|
Vibration, flashing light and sound, alarm can be manually silenced
|
|
Work mode
|
continuous work
|
|
Data storage
|
990,000 real-time records and over 3,000 alarm records
|
|
Communication interface
|
Micro USB
|
|
Temperature & Humidity
|
– 20 ℃ ~ 50 ℃, 15% ~ 90% RH (No condensation)
|
|
Power supply
|
5000mAh high capacity lithium battery rechargeable
|
|
Charging time
|
3 ~ 5 hours
|
|
Charging voltage
|
DC5V
|
|
Standard package
|
User manual, certificate, USB charger, detector,calibration cover, aluminum case
|
|
Certificates
|
CE ATEX ISO9001
|
Tips: Standard gases are CO H2S O2 and combustible gas,others gas CO CL2 H2 LPG SO2 NOx O3 O2 HCL H2S PH3 NH3 etc gases also can be combined and detected, support customization,please contact us for more details.
More multi gas detector and similar:
VR
Why Choose Us
1. More than 17 years professional gas alarm detection factory
2. Many different styles detectors used in widely application
2. Many different styles detectors used in widely application
3. Advanced technology and development team
4. Strictly supervision and inspection system
5. Competitive price and satisfied service
6. Fast and safe delivery
7. OEM and ODM are welcomed
8. Rich experience of exporting to many countries
4. Strictly supervision and inspection system
5. Competitive price and satisfied service
6. Fast and safe delivery
7. OEM and ODM are welcomed
8. Rich experience of exporting to many countries
9. One year warranty and free maintenance within warranty period
10. “Very satisfied” and “working well” etc appraise from our customers all over the world.
Customer Feedback
Application
Portable multi gas detector is widely used in biogas, landfill, cesspit, chemical industry, laboratory, coal mine, oil mine, warehouse, tunnels,underground pipeline and other places, effectively preventing the happening of the accident.
Packing & Delivery

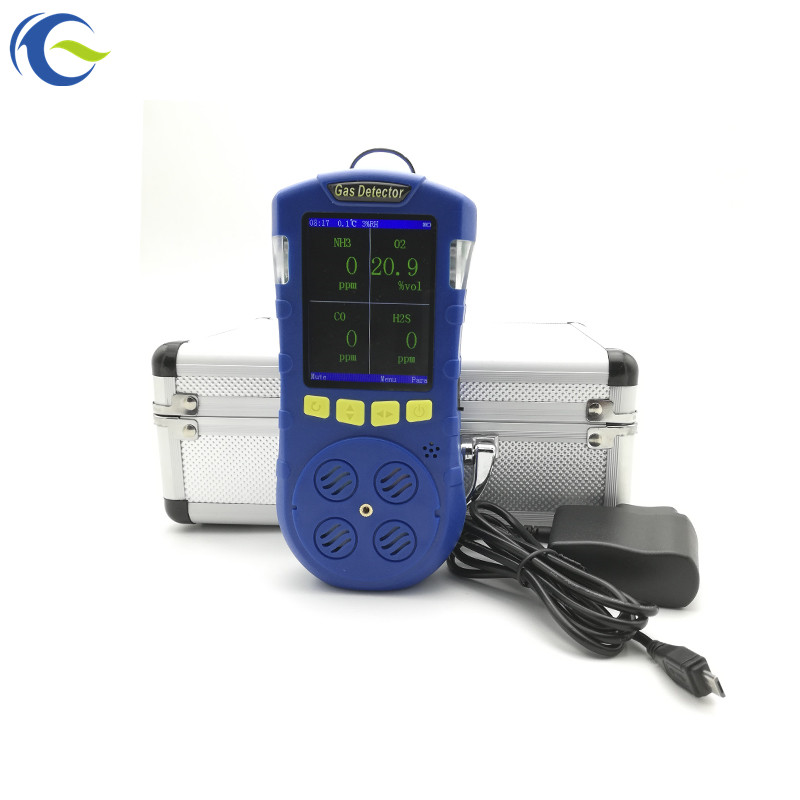

Aluminum case+Charger+ Manual+Certificate
100% strictly inspection before package
Door to door,Air and Sea Fast Shipment
Will dispatch immediately when get payment
Certifications
Our gas detector has industrial production standards and international export standards，We focus on the production of products that meet the standards to provide the greatest guarantee for industrial safety.
Company Profile
Xi’an Huafan Technology Co., Ltd founded in 2003, specialized in toxic and hazardous gas detection and smart life filed, including research and develop products and operation service. It’s a high-tech enterprise from R & D to technology services and whole industry chain.
We are a production-oriented high-tech enterprise focusing on R & D,R & D department as the core department,Responsible for the core technology design, function upgrading and development, equipment installation technical support, maintenance and testing of the company’s products, currently composed of 6 senior engineers.
We strictly control every link of production,we has its own regular production workshop, from production to quality inspection to the factory, in accordance with the strict implementation of production standards, we aim to provide customers with high quality products, we are constantly learning, improve and perfect, in the future, I believe we will become better and better.
From 2016 to 2019, we have participated in the Hong Kong Fair and the Canton Fair for many times,We want more customers to see us,understand us and trust us,We want to be the most trusted and professional partner of customers, so we constantly improve our professional ability and product quality.
