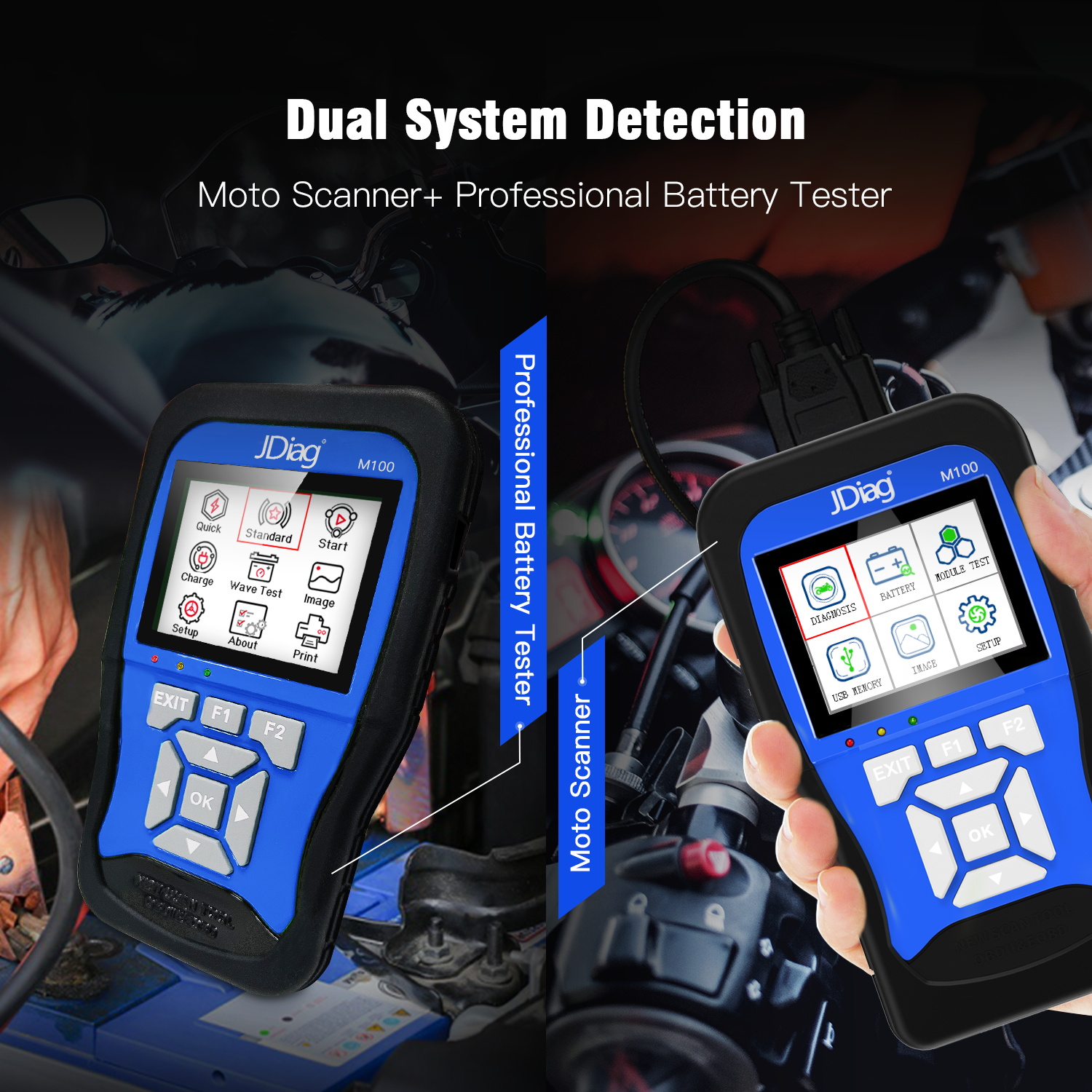

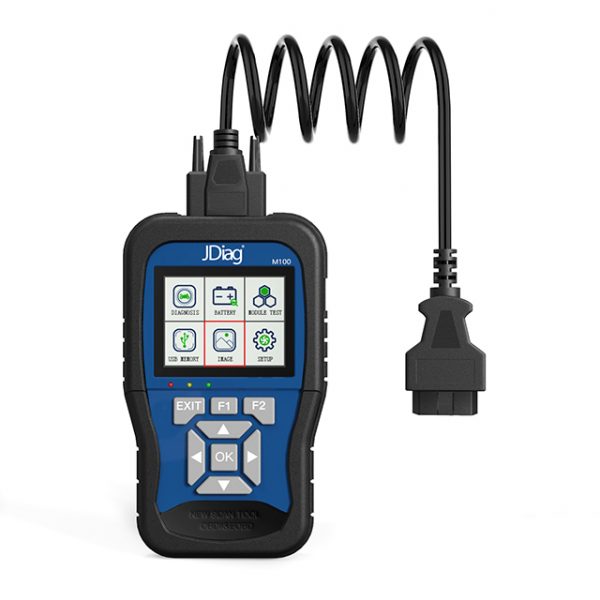

M100 Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers’ diagnostic functions. It helps the technician to diagnose problems and make repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).
It allows the technician to perform factory service procedures such as re-setting the service light, encoding keys, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.
The tool shows live data, displays ECUdata, reads stored faults(history) or live data (RPM,batteryvoltage,throttleangle).
Features:
1, Handheld operation, convenient and flexible to use
2, Support for SD cards to store data and upgrades,
3, Reserved CAN bus interface
4, 3.2-inch color screen, clear display.
6,Dynamic data with numerical and waveform.

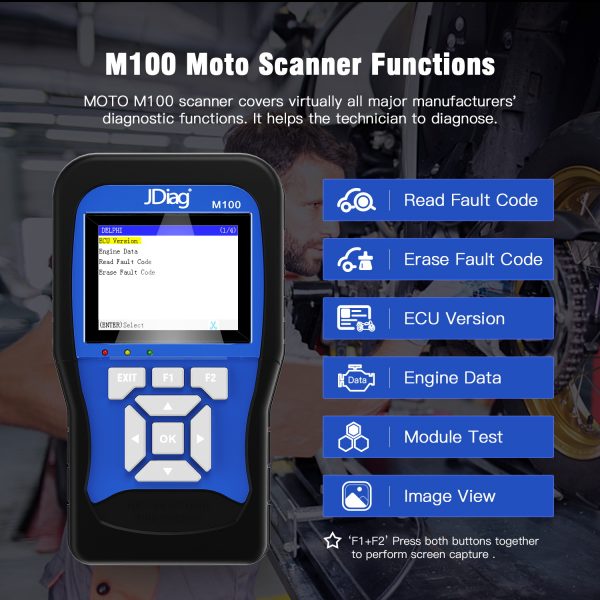

Function:
1. Read system information
2. Read data stream
3. Read fault code
4. Erase fault code
5. Freeze data
6. CO idle speed adjustment
7. Actuators test
8. ABS system test
9. Trouble shooting guidance
10. Tire pressure system test
11. Anti-theft system test
Support Motorcycle list: Hartford, Aeon, Honda, SYM, Yamaha,Suzuki,Kymco,Kawasaki,Piaggio,PGO,KTM, etc
Support Multi Languages: English , Chinese, Thai, Indonesian, Vietnamese, Spanish
Specifications:
Power: DC10-15V
Operating Current: 250mA
Storage temperature: -10 C to 85 C
Operating temperature: 0 C to 70 C
Humidity: <90%
Upgrade Ports: USB port
Communication ports: COM port

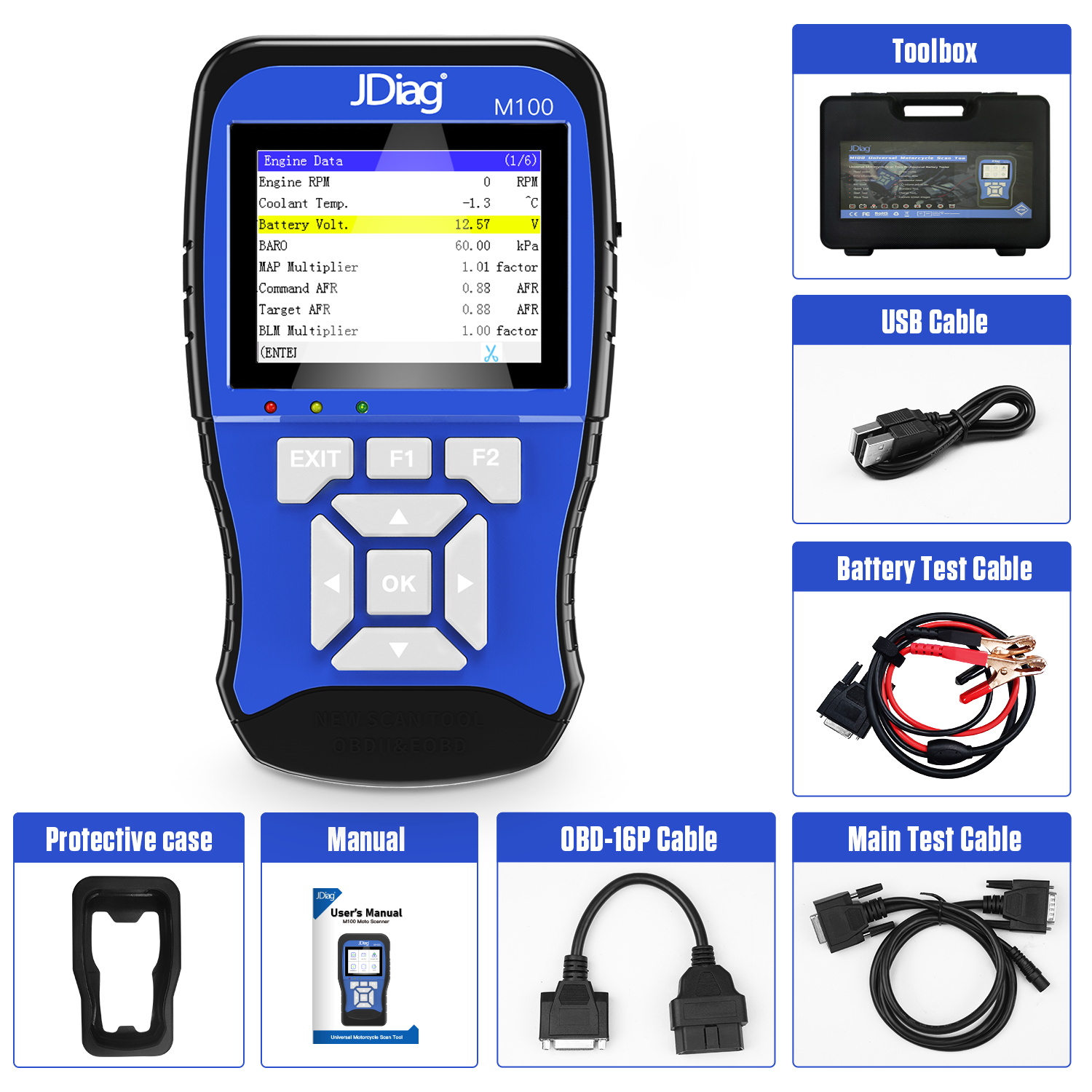

Package Included:
1, Scan Tool main unit
2, Test cables
3, USB Cable
4, User Manual
5, Protective ABS Toolbox
Packing Size: 38.5*29.2*10.7 CM
Weight: 3.5 KG
1. Read system information
2. Read data stream
3. Read fault code
4. Erase fault code
5. Freeze data
6. CO idle speed adjustment
7. Actuators test
8. ABS system test
9. Trouble shooting guidance
10. Tire pressure system test
11. Anti-theft system test
A: Yes, sample order is available for quality check and market test. But you jave to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What’s the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What’s your warranty terms?
A: We supply 12 months warranty time.
Q5: What’s your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
