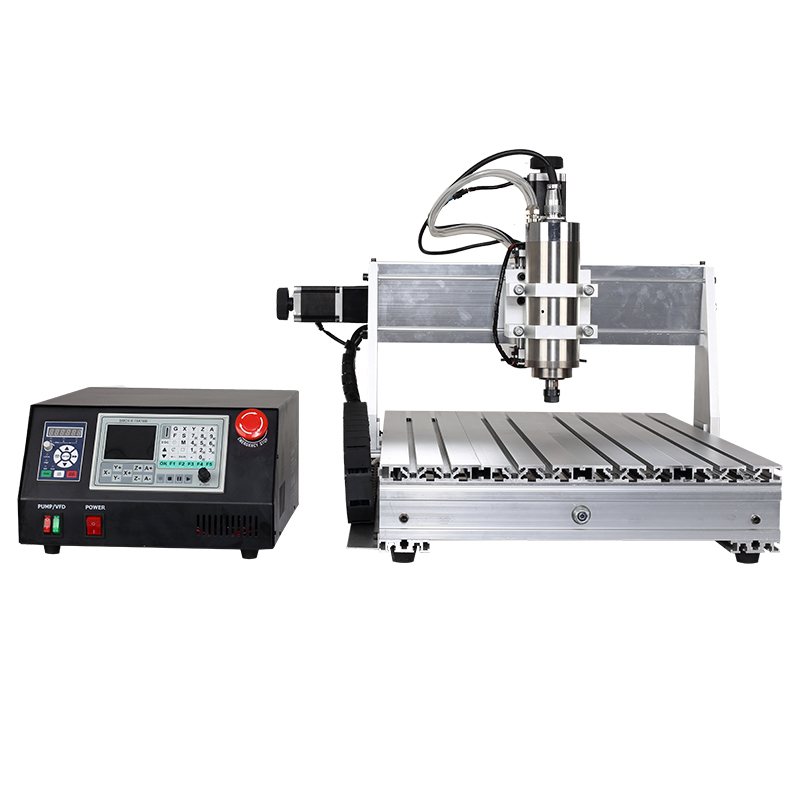

Most popular CNC 6040 3 axis DSP wood cnc engrave machine router machine for sale mini carving
Highlights for this Multi-function 3 axis 6040 drilling and milling machine
Machine Structure Highlights
1.Operates without connevting computer
2.Ball screw made it a higher precision
3.Limited switch added
4.1500W water cooling spindle
5.Independent power supply for mainboard, prolong using life.
6.Auto-Checking function
7.Control System Highlights
8.DSP version, no need connect extra PC laptop
Easy operate Mach 3
Auto-Checking function, easy to set origin of Z axis
Built-in frequency converter in control box
The control box can be CNC 4 axis universal
China Mini CNC Machine Manufacturer Excellent Service
Got CE approved
From reliable & trusworthy profesional China CNC router engraver manufacturer
Youtube cnc machine video support
Technical team always available
English manual available
This Easy handle 3 axis 6040 cnc bobby engraving machine can be widely used
A. Widely used not only for Aluminum but also acrylic, brass, wood, PVC, PCB and so on.
B. Ideal for milling, engraving, drilling & routing.
C. For Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts
|
Effective working travel |
580(X)mm*400(Y)mm*105(Z)mm |
|
|
Shape dimension |
880*670*640mm |
|
|
Max.workpiece dimension |
750mm*450mm<150m |
|
|
Work table dimension |
750mm*480mm |
|
|
Frame materials |
Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs |
|
|
acceptable material thickness |
≤150mm |
|
|
Driving units |
X/Y/Z axis |
1605 ball screw |
|
Sliding units |
X axis |
Dia.16mm chrome plate shafts |
|
Y axis |
Dia.20mm chrome plate shafts |
|
|
Z axis |
Dia.13mm chrome plate shafts |
|
|
Stepping motor type |
57 two-phase 3A 150N.cm |
|
|
Spindle motor |
Brand new 1500W water cooling spindle, 24000RPM |
|
|
Principal axis collet |
ER20/3.175 mm/6mm |
|
|
Repeat accuracy |
0.05mm |
|
|
Spindle precision |
radial beat accuracy is 0.03 mm |
|
|
Carving Instructions |
G code/TAB files/nc file/NCC files |
|
|
Communication interface |
offline connection with computer |
|
|
Software environment |
Windows xp/Win7/Win8/Win10 |
|
|
Maximum speed |
0-4000mm/min |
|
|
Carving speed |
0-2500mm/min(different materials differ) |
|
|
Control unit |
Toroidal transformer+PWM power supply module +TB6560 3axis drive board |
|
|
Computer connection |
Operates without connevting |
|
|
Command code |
G code |
|
|
Acceptable software |
Mach3 |
|
|
protection |
Emergency stop button |
|
|
Operating Voltage |
AC110V/220V |
|
|
Machine weight (Package weight) |
3axis 61kg 4axis 68kg |
|
|
Package dimension |
Top:62*49*52cm Bot:80*22*63cm |
|
Why CNC 6040 Machine be better than others?

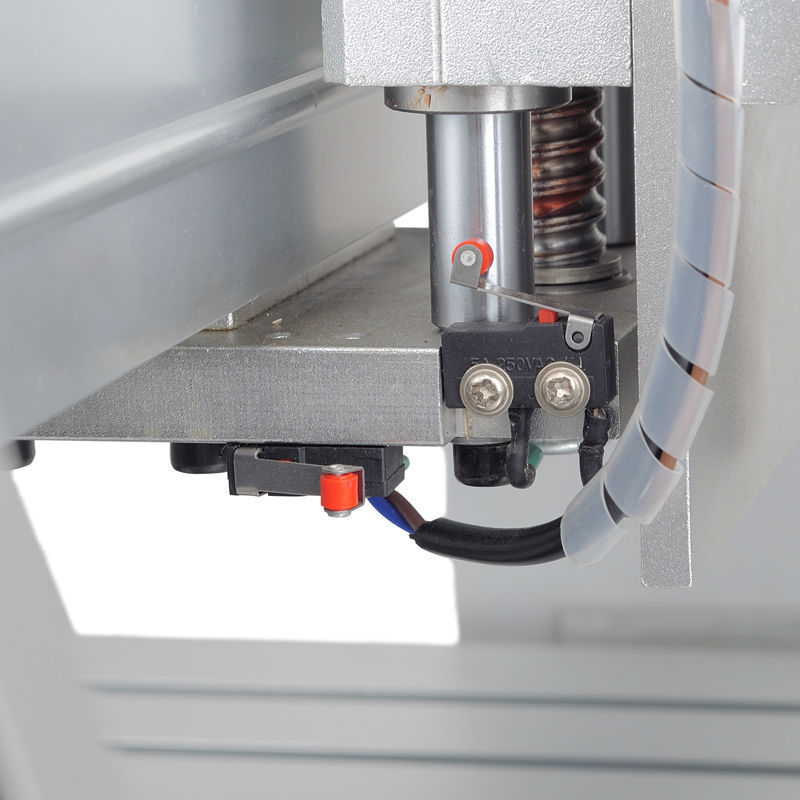

6 Limit Switches On X / Y / Z Axes
Packing list : (TWO Carton Box, 62*49*52cm / 80*22*63 cm, total weight 68KG)
1 * CNC 6040 engraving machine
1 * 4axis controller box
1 * water pump for cooling spindle
1 * CD (software)
4 * Fixed briquetting
1 * milling bit
3 * clamp tool
1 * auto-checking tool
6 * clamp tool
3 * engraving bit
1 * collet 3.175
4 * screws
4 * limited switch
