Product Description
|
Product parameter
|
||||||
|
Product Size
|
φ98*113（mm）
|
|||||
|
Product Weight
|
1270g
|
|||||
|
Measure Range
|
0.1-50m
|
|||||
|
Measure Precision
|
±2mm
|
|||||
|
Measure Resolution
|
1mm
|
|||||
|
Beam angle
|
11°
|
|||||
|
letter of agreement
|
RS-485, ModBus protocol
|
|||||
|
Power consumption
|
12VDC/10mA
|
|||||
|
Working principle
|
24~26GHz FMCW
|
|||||
|
Transmit power
|
25dBm (adaptive adjustment)
|
|||||
|
Response time
|
The fastest 100ms (adjustable)
|
|||||
|
Antenna form
|
Horn lens antenna
|
|||||
|
Operating temperature
|
-40℃~+85℃
|
|||||
|
Protection level
|
IP68
|
|||||
|
Shell material
|
Hard aluminum alloy (main body)
|
|||||
|
Installation method
|
Bracket installation
|
|||||
|
Lightning protection level
|
6kv lightning surge
|
|||||
|
Optional
|
RTU/4-20mA
|
|||||
|
Data transmission system
|
||||||
|
Data transmission type
|
RS485
|
|||||
|
Seting software
|
Yes
|
|||||
|
4G GPRS WIFI RTU
|
Integrated (optional)
|
|||||
|
LORA/LORAWAN
|
Integrated (optional)
|
|||||
|
Matched Server and Software
|
Support
|
|||||
|
Application scenario
|
||||||
|
Application scenario
|
-Channel water level monitoring
|
|||||
|
-Irrigation area -Open channel water level monitoring
|
||||||
|
-Cooperate with standard weir trough (such as Parsell trough) to measure flow
|
||||||
|
-Water level monitoring of the reservoir
|
||||||
|
-Natural river water level monitoring
|
||||||
|
-Water levelmonitoring of underground pipe network
|
||||||
|
-Urban flooding water level monitoring
|
||||||
|
-Electronic water gauge
|
||||||

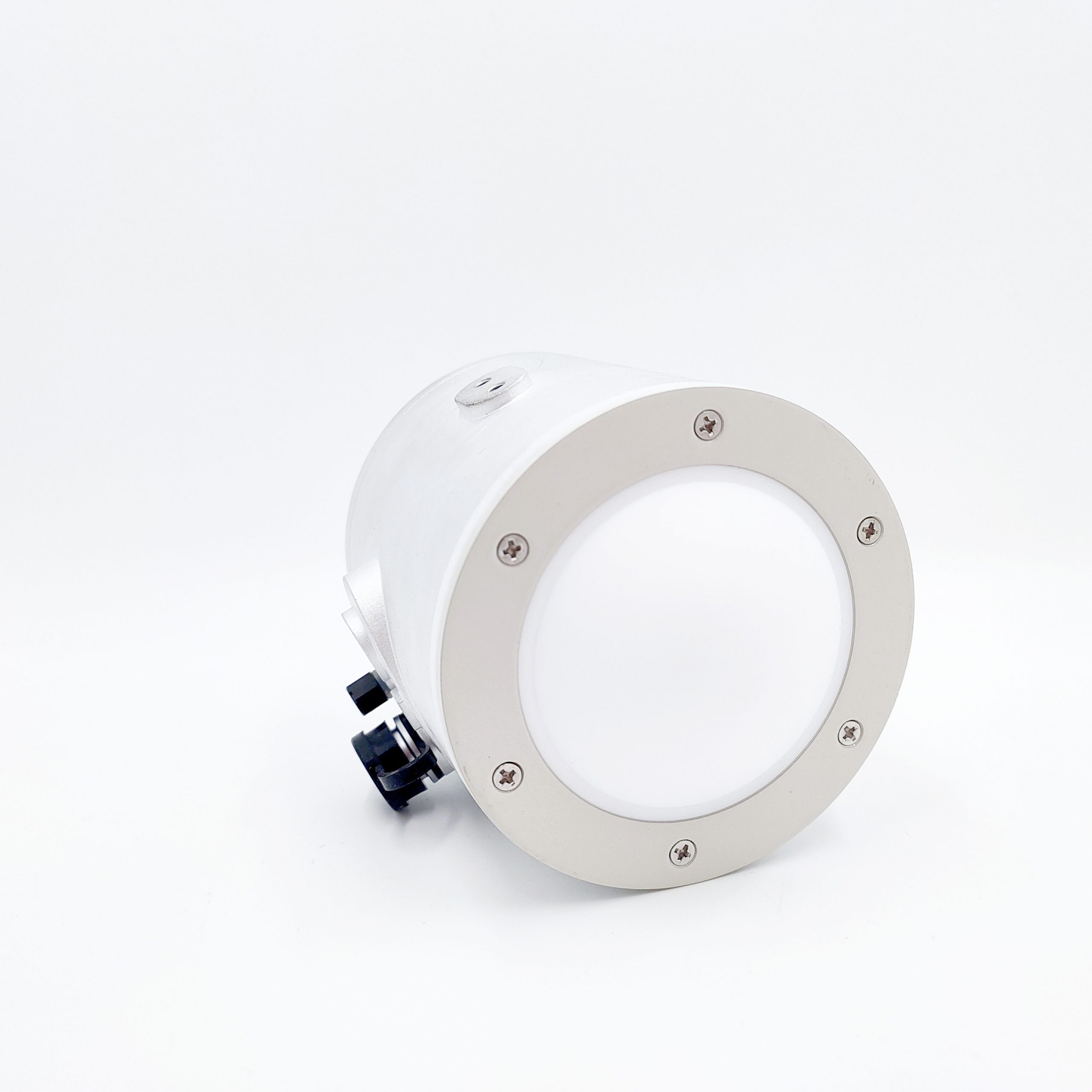

Detailed Images
Feature 1
Frequency modulated continuous wave (FMCW) measurement principle,High measurement accuracy;
Passed 6kv high voltage surge test, lightning ring high reliability in the environment
Feature 2
After military-grade stress screening, it can adapt to strict harsh high and low temperature environment;
Fully enclosed shell, IP68 waterproof, fearless
rain and snow.
rain and snow.
Feature 3
High signal-to-noise ratio, strong anti-interference ability;
Low power consumption, suitable for use in the field environment.
Feature 4
Small appearance, light weight, easy to install and has a large range 0-50 meters.
Feature 5
The bracket installation place is convenient and simple to install and easy to operate.
Feature 6

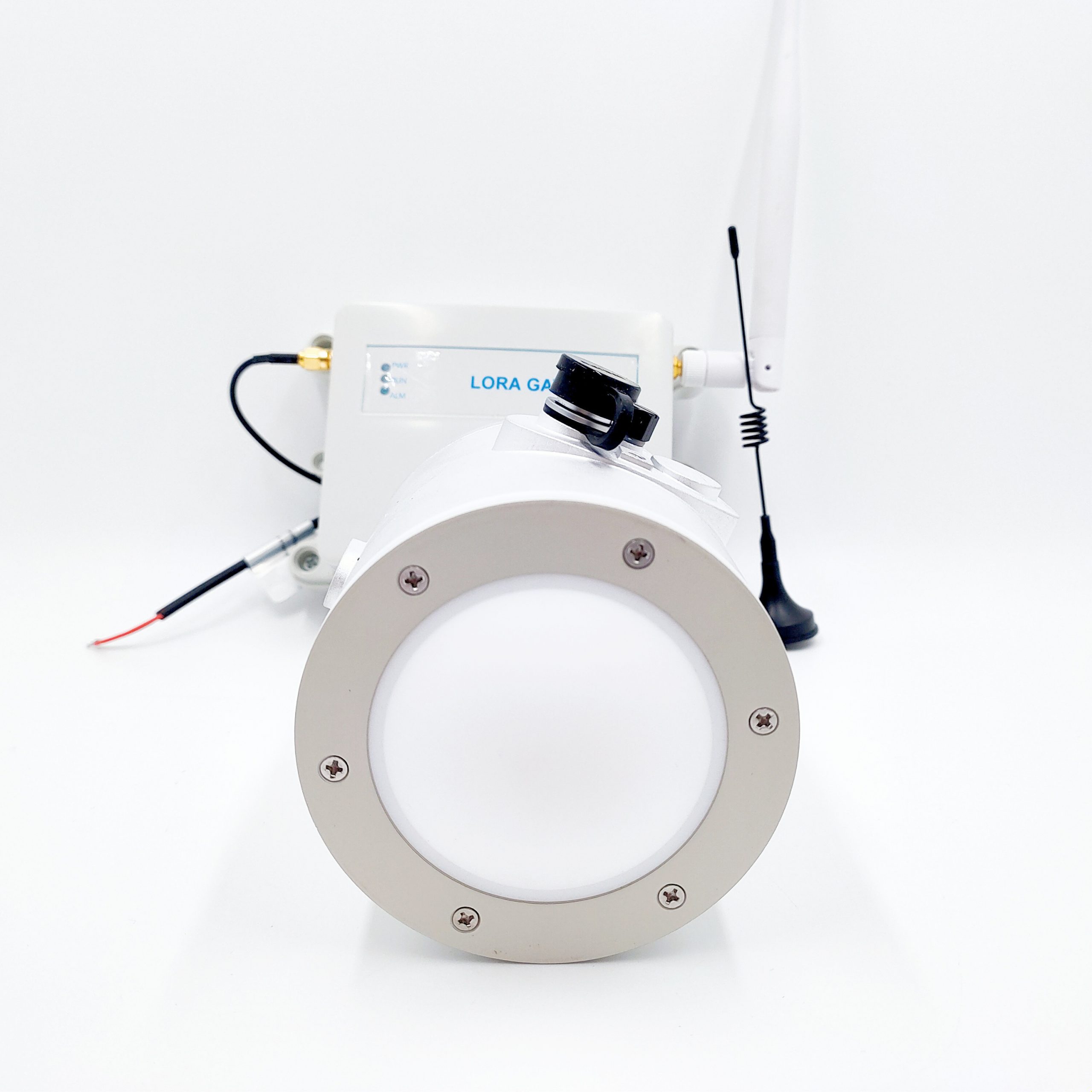

RS485 modbus protocol and can use the LORA/ LORAWAN/ GPRS/ 4G/WIFI wireless data transmission, and the LORA LORAWAN frequence can be custom made.
Feature 7
The matched cloud server and software can be send if using our wireless module to see the real time data in PC or mobile and also
can download the data in excel.
can download the data in excel.
Product Applications
Application scenario 1
Cooperate with standard weir trough (such as Parsell trough) to measure flow
Application scenario 2
Natural river water level monitoring
Application scenario 3
Urban flooding water level monitoring
Good reviews
Related Products
Company Introduction
Honde Technology CO.,LTD founded in the year of 2011, the company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture and smart environmental protection and the related solutions provider.Adheres to the business philosophy of making our life better , we have found the Product R&D Center the System Solution Center.
Packing&Shipping
FAQ
Q: How can I get the quotation?
A: You can send the inquiry in the bottom of this page or contact us from the following cotact information.
A: You can send the inquiry in the bottom of this page or contact us from the following cotact information.
Q: What’s the main characteristics of this Radar water level sensor?
A: It is easy for using and can measure the water level in 50 meters for the river open channel and urban underground drainage pipe network so on.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
It is regular power or solar power and the signal output including RS485.
Q: How can I collect data?
A: It can intergrated with wireless modules including the GPRS 4G WIFI LORA LORAWAN, it is optional.
A: It can intergrated with wireless modules including the GPRS 4G WIFI LORA LORAWAN, it is optional.
Q: Do you have the matched parameters set software?
A:Yes, we can supply the matahced software to set all kinds of measure parameters in PC or mobile.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be deliveried in 3-5 working days after receiving your payment. But it depends on your quantity.
