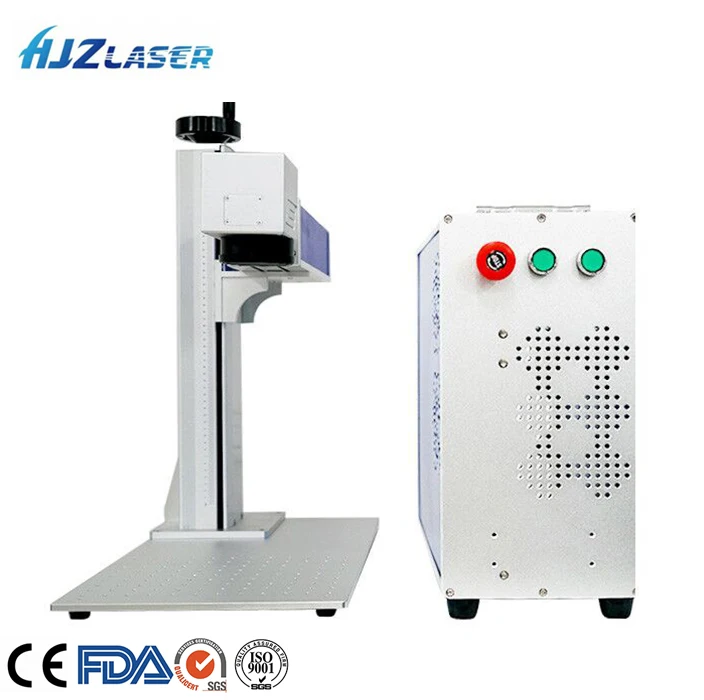

Mini Portable Fiber Laser Marking Machine Handheld 20W 30W Laser Engraving Machines Coding Machine for Sale
Product descriptions :
1. Humanized design: HJZ Laser take full consideration of the user ‘s experience to improve work efficiency and simplify operations of the laser etching machine.
2. High-quality imported laser source: IPG, Raycus, Max, JPT. choosable 20W 30W 50W 70W 100 watt laser source , stable laser beam, smooth and fine marking lines.
3. High-speed marking: shorten the time for processing the workpiece, and increase the working efficiency.
4. High-efficiency electro-optical conversion: zero-power coupling loss, no have consumables, and no need later maintenance.
5.
10 years of operation life
: this fiber laser marking machine applied for metal can meet for
24-hour continuous and stable processing.
5.
10 years of operation life
: this fiber laser marking machine applied for metal can meet for
24-hour continuous and stable processing.
6. High performance, high reliability control system:
friendly interface, stable and reliable system.
friendly interface, stable and reliable system.
7. Low power consumption: low cost, only 0.5 kw/h.
Product Description
Specification
|
Technical parameter
|
||
|
Item / Model
|
HJZ-DB-01 20W/30W
|
|
|
Laser source
|
Domestic Raycus(Germany IPG/China CAS/MAX/JPT Mopa color marking for optional)
|
|
|
Laser power
|
20w/30w (50w,60w ,70w,100,120w is optional)
|
|
|
Laser type
|
Fiber laser
|
|
|
Graphic Format Supported
|
DXF,PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,
|
|
|
Marking speed
|
≤8000mm/S
|
|
|
Max.Marking Depth
|
≤0.4mm
|
|
|
Laser Wavelength
|
1064nm
|
|
|
Marking lines
|
0.06-0.1mm
|
|
|
Minimum line width
|
0.06mm
|
|
|
Minimum character
|
0.15mm
|
|
|
Resolution ratio
|
0.01mm
|
|
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
|
Software supported
|
TAJIMA, CorelDraw, Photoshop, AutoCAD
|
|
|
Equipment Dimensions
|
755*390*360mm
(different model has different size,detailed can be confirmed with sellers) |
|
|
Net/Gross Weight:
|
26/44kg(different configuration has small difference)
|
|
|
Unit Power
|
≤500W
|
|
|

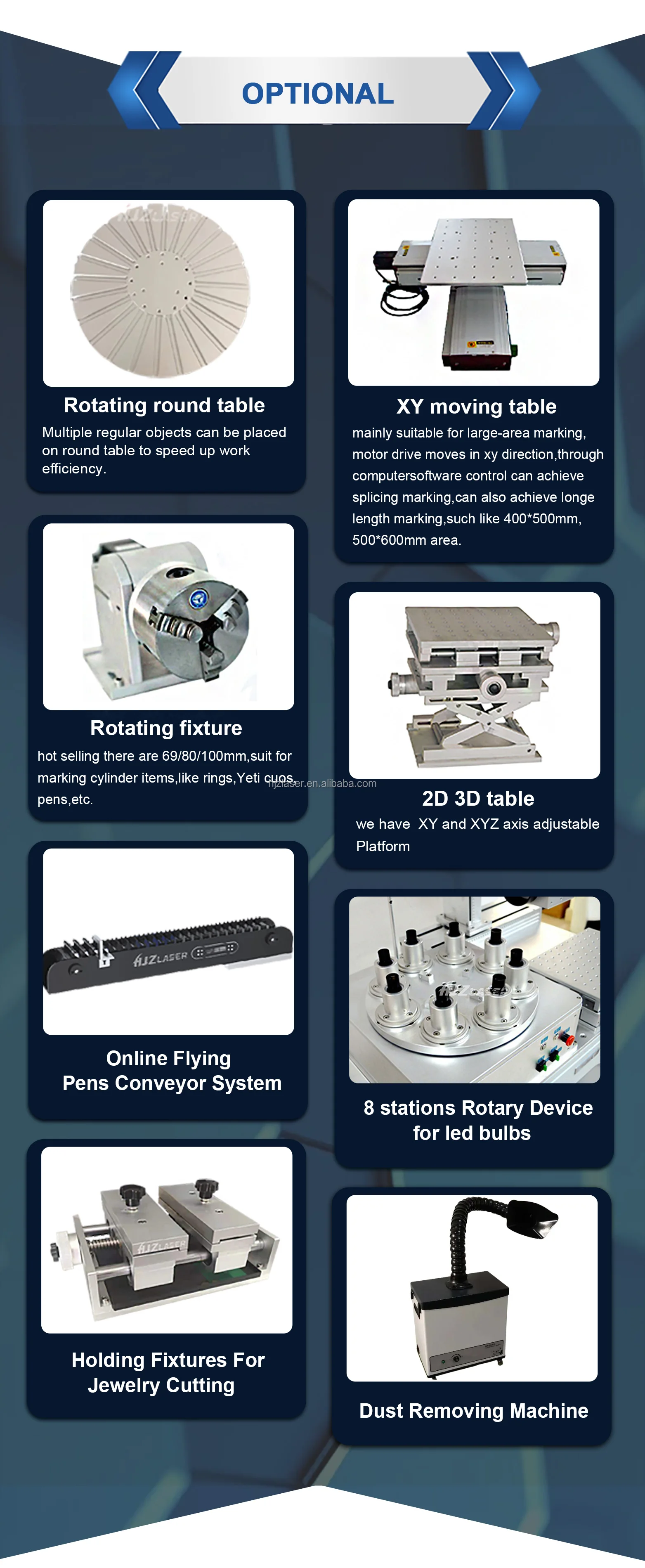

Optional Spare Parts
|
Rotary/Protection glasses/outside red light/night light and other optional customized parts and so on.
|
|
