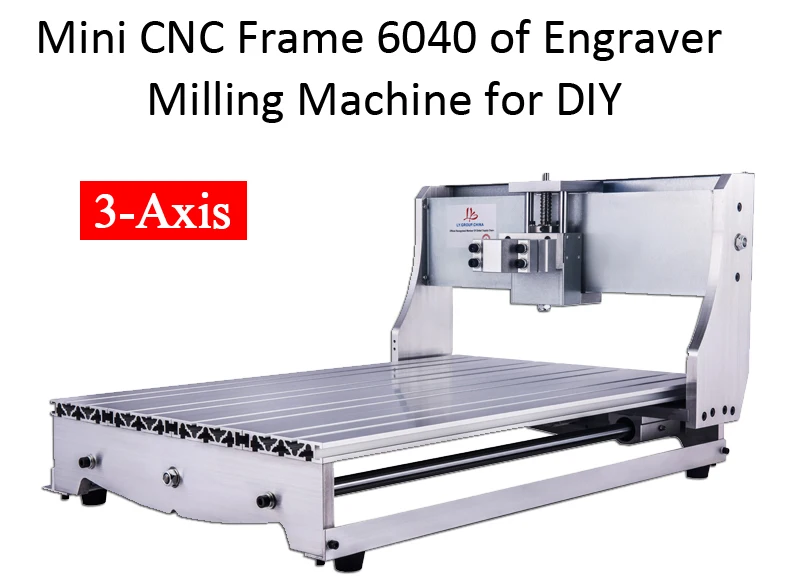

Mini Lathe Frame Cnc 6040 Metal Engraving PCB CNC Milling Machine 3axis 4axis

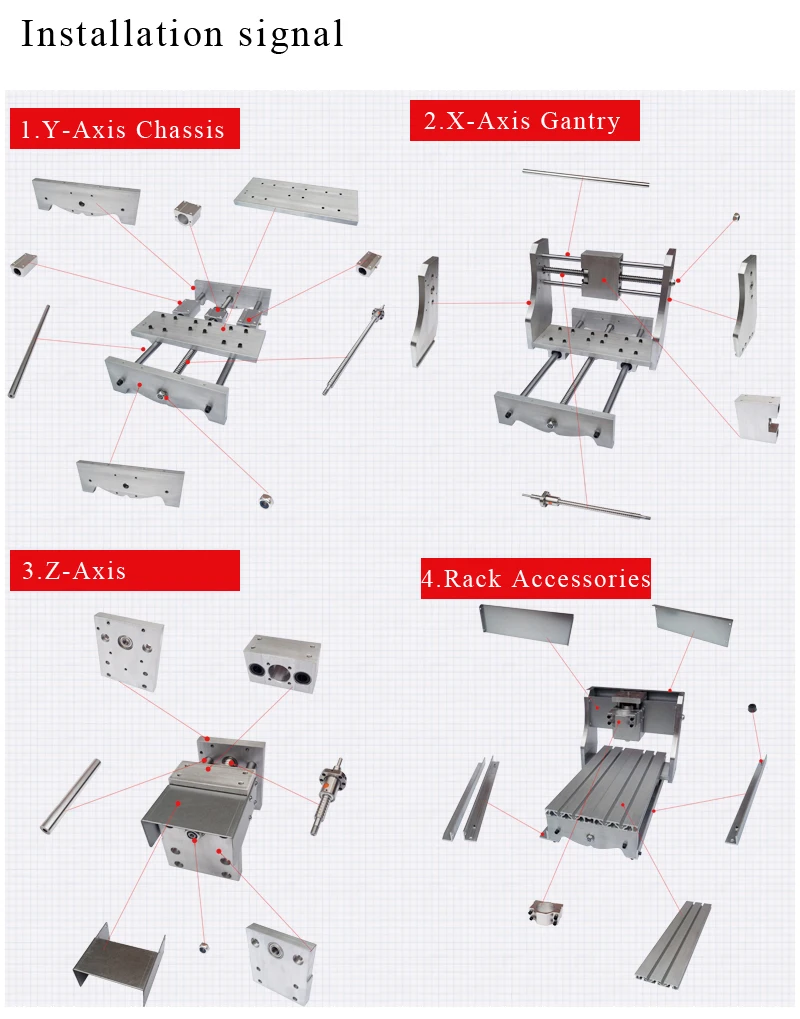

The CNC router frame need self-assembled for DIY amateur;
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

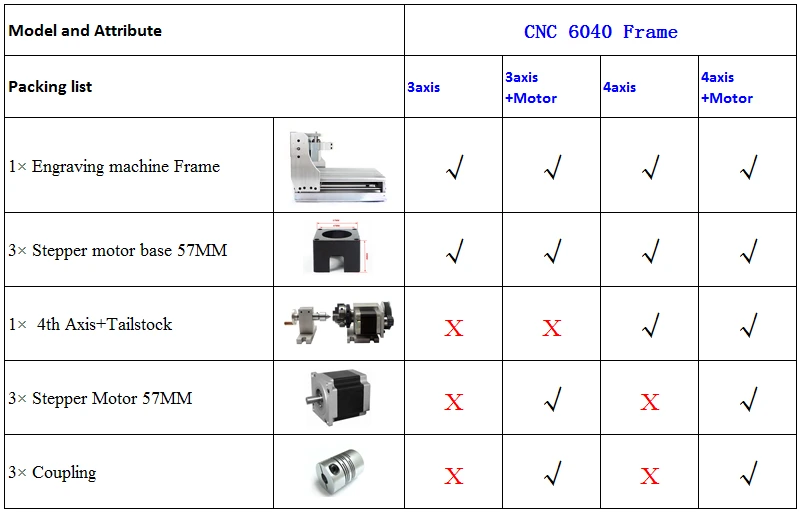

Model and Technical Parameters
|
MODEL |
CNC 6040 Frame |
||||
|
Attribute |
3axis |
3axis+Motor |

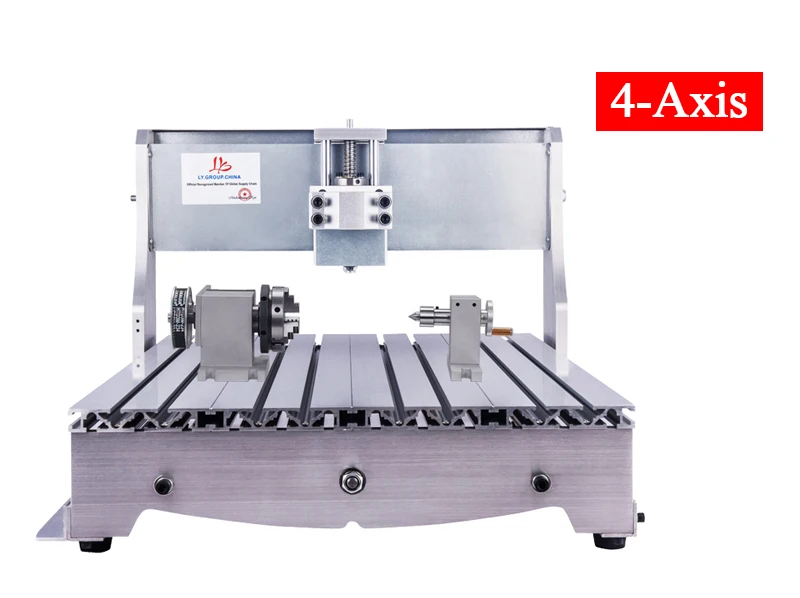

4axis |
4axis+Motor |
|
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
|
Stepper motor base |
Yes |
yes |
Yes |
yes |
|
|
Coupling |
No |
Yes |
No |
Yes |
|
|
Stepper Motor |
No |
Yes 57mm |
No |
Yes 57mm |
|
|
Type of screw |
1605 Ball screw |
1605 Ball screw |
1605 Ball screw |
1605 Ball screw |
|
|
Weigh |
34 |
36 |
37 |
39 |
|
|
Machine Dimensions |
|||||
|

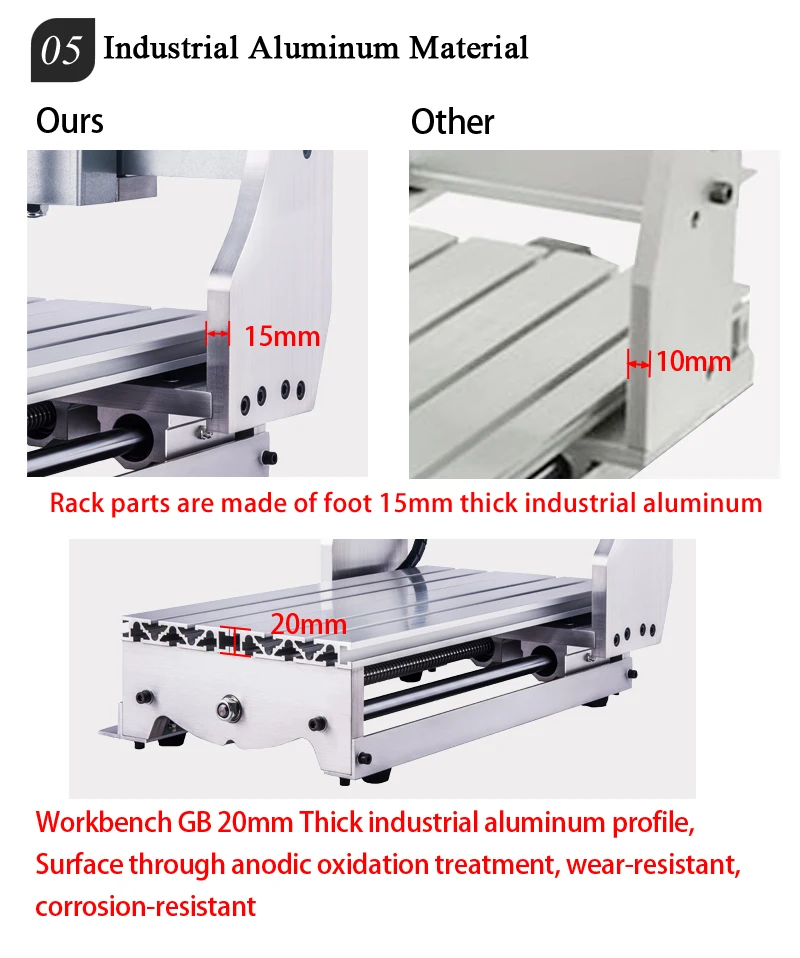

Rack material |
6061 and 6063 Hard aluminum alloy |
||||
|
Engraving area |
600X400mm |
||||
|
Z-Axis Stroke |
80mm, Engraving depth depends on the length of the tool edge |
||||
|
Acceptable material thickness |
≤80mm |
||||
|

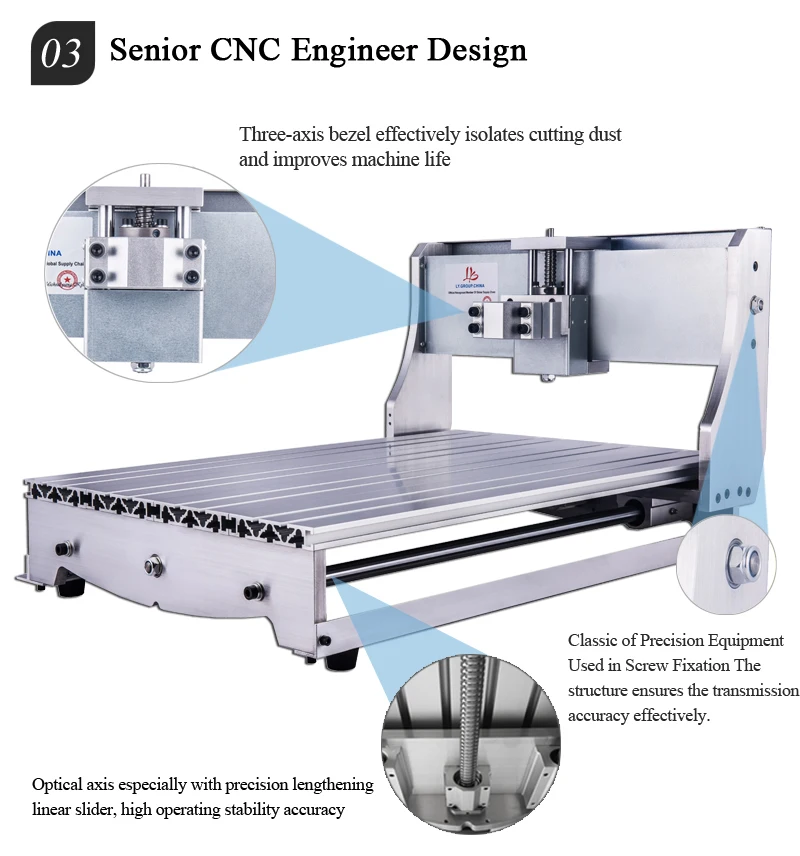

Rail type |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
||||
|

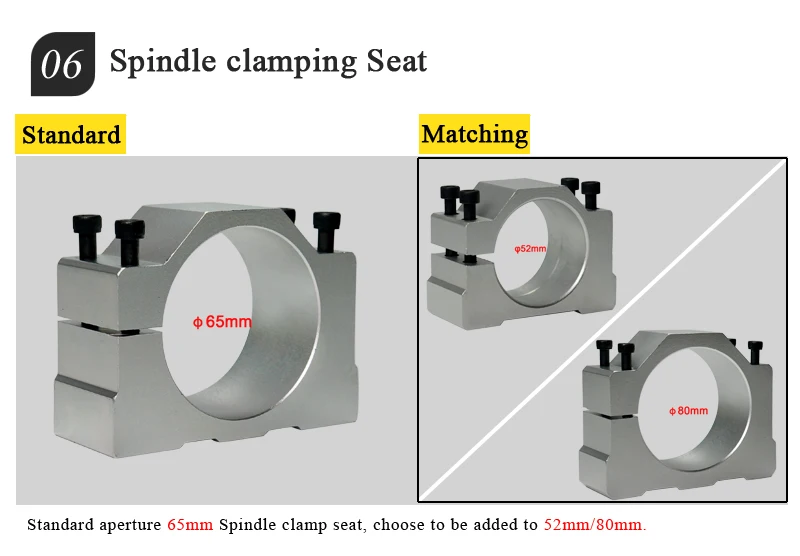

Diameter of Spindle motor |
65mm ( 52mm & 80mm optional) |
||||
|
Stepper motor size |
57mm |
||||
|
Repeat positioning Accuracy |
≤0.03mm |
||||
