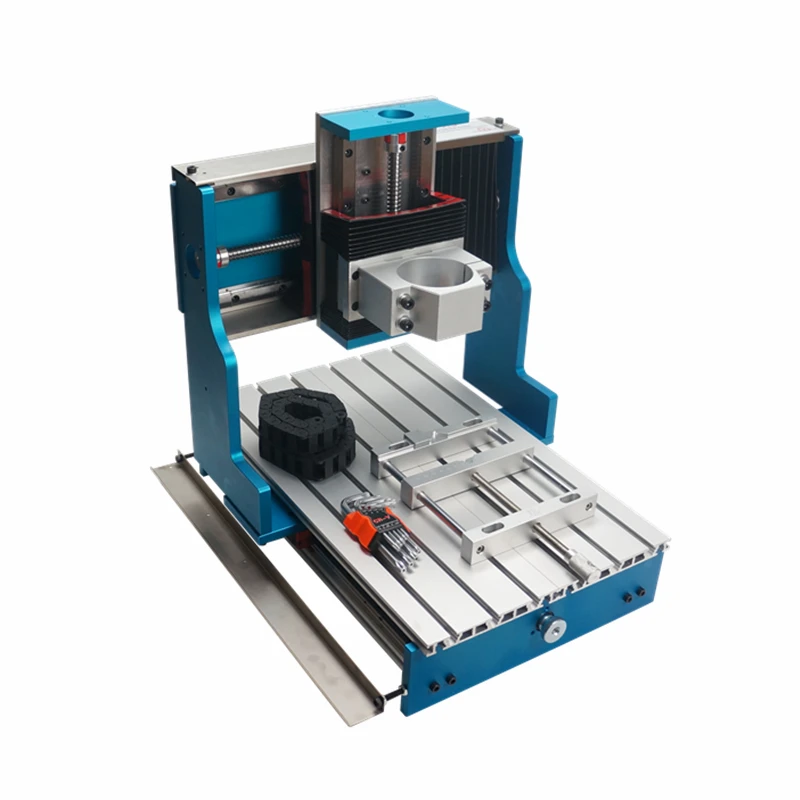

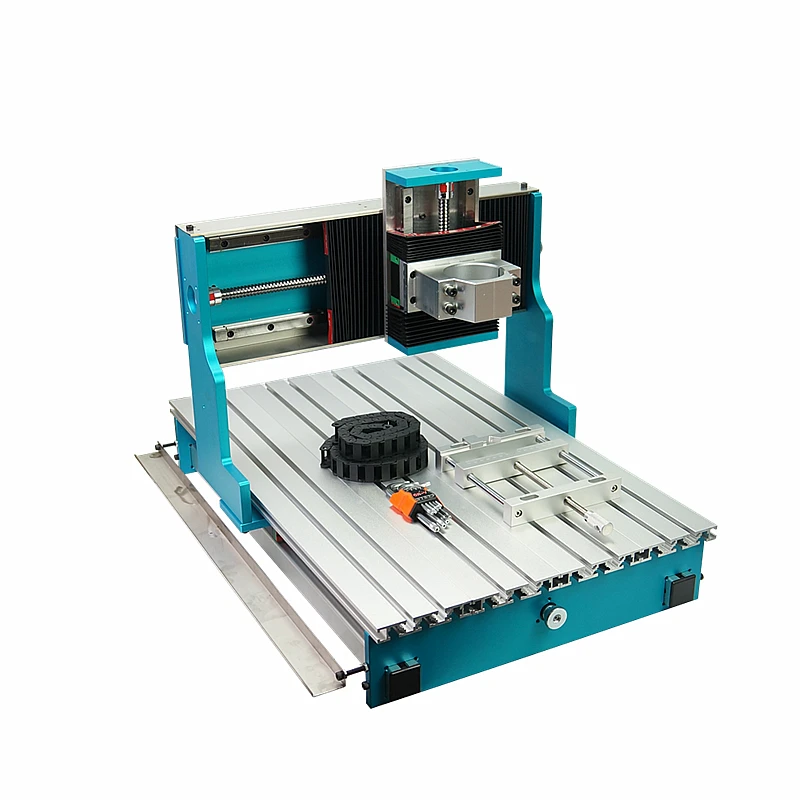

Mini DIYCNC Frame Linear Guideway 6040/3040 with Stepper Motors CNC Vice 80mm Spindle Clamp 4 Axis for CNC Wood Router Lathe Kit

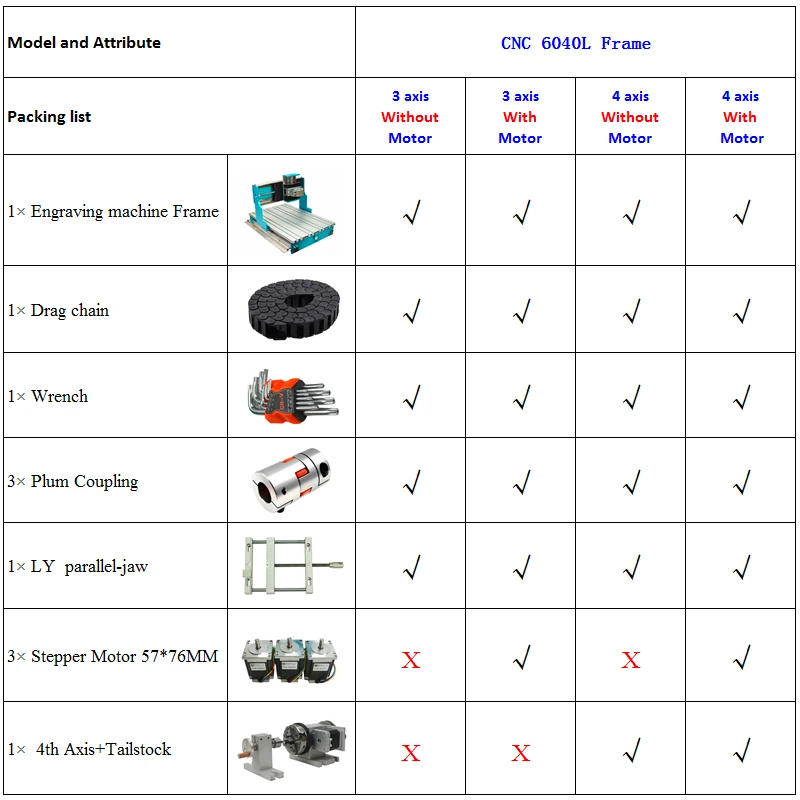

MODEL

CNC Frame 3040L/6040L

Attribute

3 axis Without Motor

3 axis With Motor

4 axis Without Motor

4 axisWith Motor

Axis

3axis

3axis

4axis

4axis

Have motor?

No

Yes

No

Yes

Have 4th axis?

No

No

Yes

Yes

Weigh

45

48

48

51

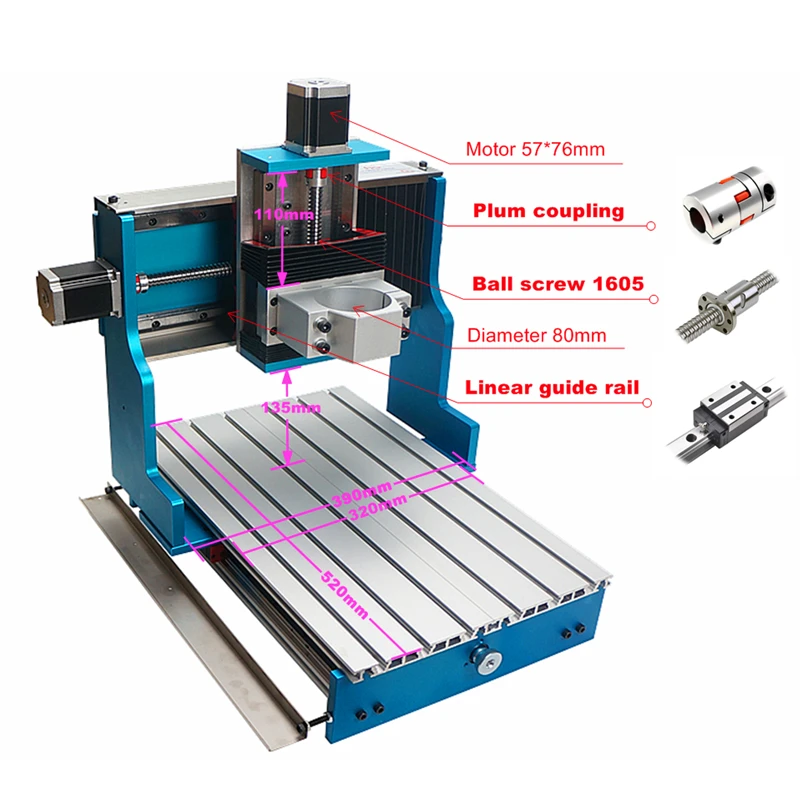

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters
dwarfs.)

Table material:

3040L:320 * 520mm 6040L:740* 480mm (20mm aluminum alloy T table)

Engraving area:

3040L:260*380*110mm 6040L:360*570*120mm

Z-Axis Stroke:

3040L:110mm 6040L:120mm

Engraving depth depends on the length of the tool edge

Acceptable material thickness:

3040L:≤ 135mm 6040L:≤ 140mm

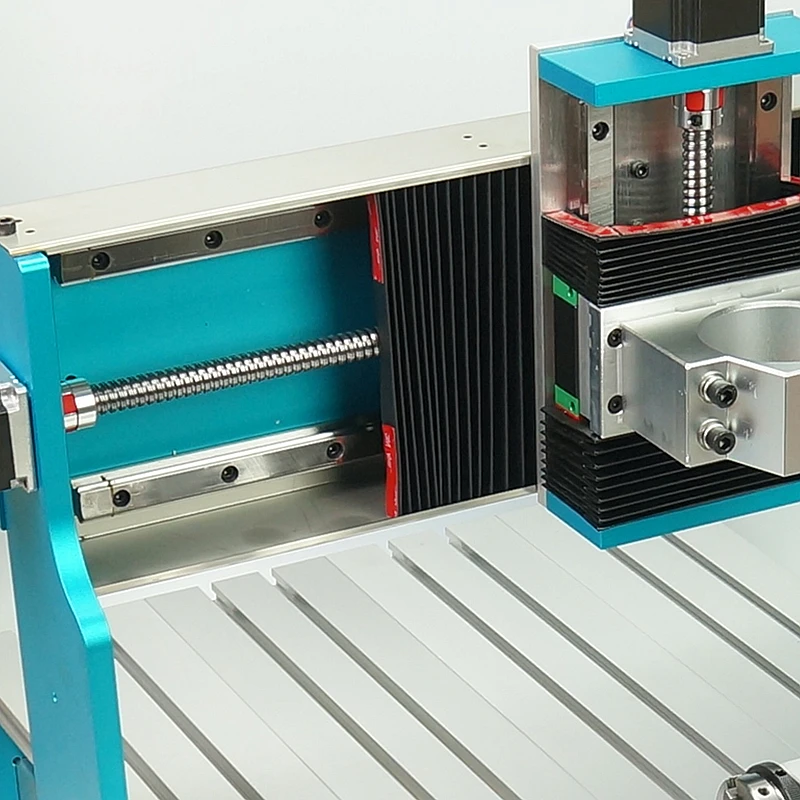

Rail type:

Square line: rail track TRH20,
three-axis is 20 mm square wire track,

high precision, high strength, top configuration.

Type of screw:

Ball screw:1605

Diameter of Spindle motor:

80mm

Motor

Nema 23 (57*76mm)

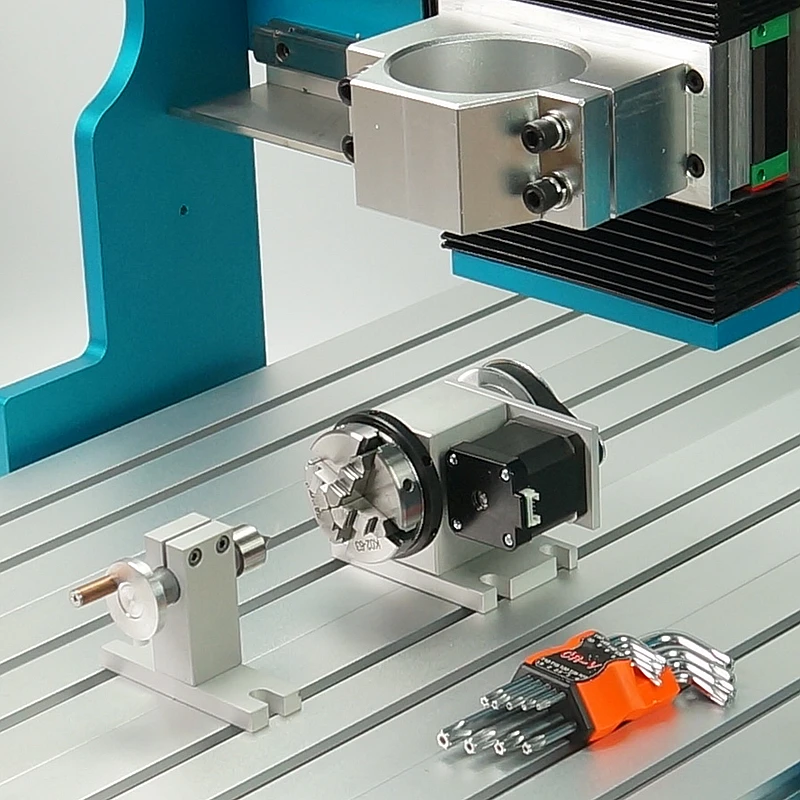

Rotation
Axis (4thAxis)

Description:

Chuck: 65MM 4-jaw chuck

Center height: 54MM

Speed reducing ratio:4:1

Stepper motor: Two phase 42 stepper motor
