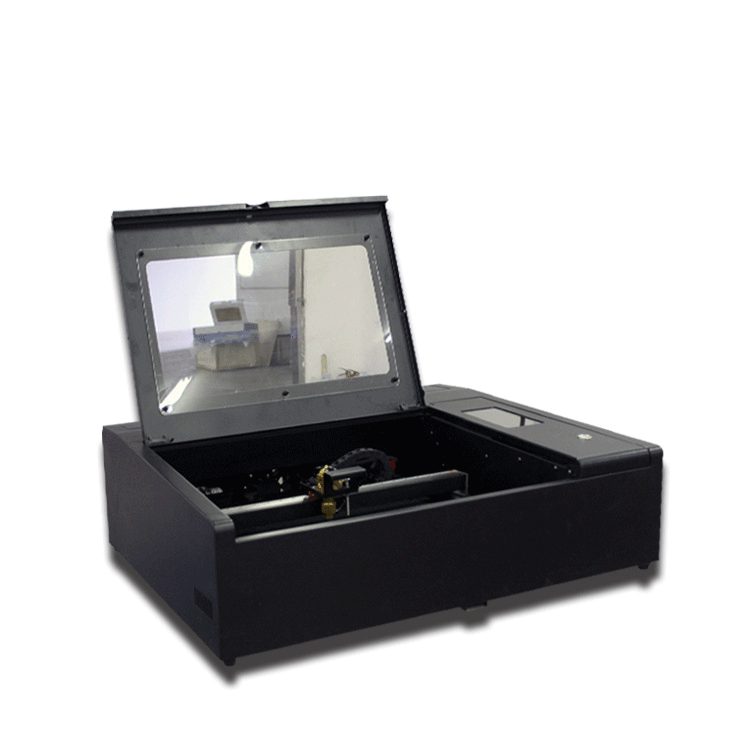

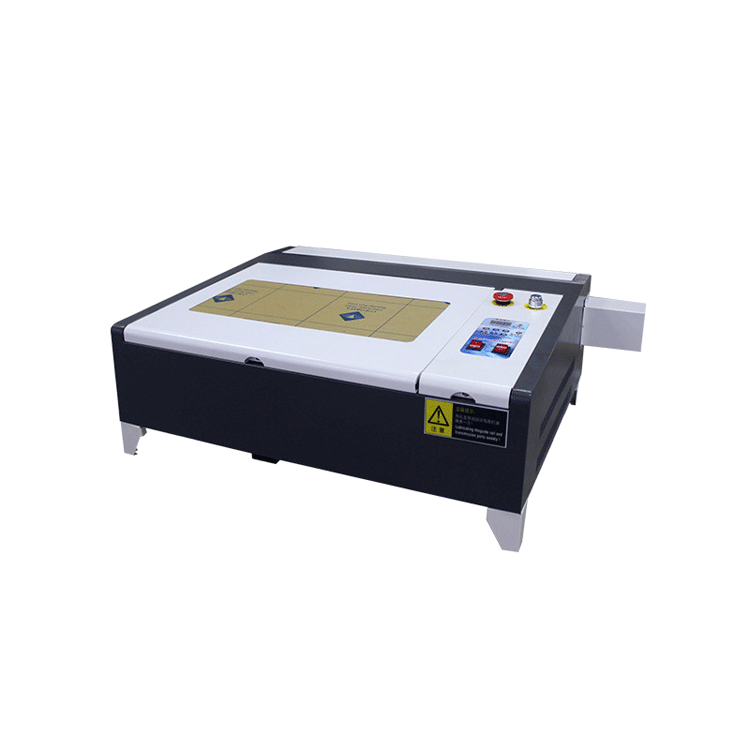

40w 50w 4040 CO2 Laser Engraving Cutting Machine
Products Description
|
Product name
|
400*400mm laser cutting machine
|
|
Laser type
|
Hermetic Co2 glass tube
|
|
Laser power
|
40W/50W (Optional )
|
|
Driving system
|
System motor
|
|
Power supply
|
AC220±10% 50HZ
|
|
Total power
|
≤300W
|
|
Working area
|
400*400MM
|
|
Max engraving speed
|
0-500mm/s
|
|
Worktable
|
up&down table (manual)
|
|
Mini shaping character
|
Chinese character 1.8*1.8mm ,English letter 0.8*0.8mm
|
|
System environment
|
Windows 2000/Windows 7 /Windows XP
|
|
Cooling way
|
Water cooling and protection system
|
|
Compatible software
|
Coredraw software
|
|
Cutting thickness
|
0-5mm(depends on different materials )
|
|
Operationg temperature
|
0-45℃
|
|
Operating humidity
|
5-95%
|
|
Machine dimension
|
40W L830*W670*H26.5CM/50W L98*W67*H26.5CM
|
|
Net weight
|
35KG
|
|
Gross weight
|
45KG
|
|
Packing size
|
40W L95*W81*H42.5CM /50w L113*W81*H42.5CM
|
Product packaging
FAQ
1. Q: What are the file types that Smart Software imports?
A: You can import any jpg, bmp, plt, dxf and png files that you want.
A: You can import any jpg, bmp, plt, dxf and png files that you want.
2.Q: What’s the computer requirements?
A: Smart machines are compatible with Windows® XP/7/8/10 both 32-bit and 64-bit operating systems. The file transfer is performed via USB connection to the computer at speeds up to 500 KB per second or via USB flash drive direct transfer.
A: Smart machines are compatible with Windows® XP/7/8/10 both 32-bit and 64-bit operating systems. The file transfer is performed via USB connection to the computer at speeds up to 500 KB per second or via USB flash drive direct transfer.
3.Q: Is there any laser machine maintenance?
A: All of the configurations of Smart laser marking machine is free maintenance.
A: All of the configurations of Smart laser marking machine is free maintenance.
4.Q: How does the Smart machine working?
A: A laser machine works by directing a very powerful laser beam at a precise focal length onto a variety of materials. Depending on the speed and power set, the laser beam will either remove the surface of the material or cut through it.
A: A laser machine works by directing a very powerful laser beam at a precise focal length onto a variety of materials. Depending on the speed and power set, the laser beam will either remove the surface of the material or cut through it.
5.Q: What are the consumables?
A: The Smart laser marking machine if free of maintenance and there are no consumables.
A: The Smart laser marking machine if free of maintenance and there are no consumables.
