Mini CNC Wood Cutting Lathe Machine 400W 5 Axis CNC 3040 Engraving Milling Router Machine for Diy Making Wood Airplane Model

ر.س4,031.59

Qty:

Mini CNC Wood cutting Lathe Machine 400W 5 Axis CNC 3040 Engraving Milling router Machine for diy making wood Airplane model

Product Description



Introduction



This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.



Warranty



More Precise Stepping Motor

Simple operation and installation

1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty



Model and Technical Parameters



MODEL

3040 metal

Attribute

3axis







Axis

5axis







Interface

USB Port







Spindle Motor:

400W







Weigh

35







Max. working stroke

XYZ=290*390*95mm

Acceptable material thickness

120mm

Rail type

X Y 1605 ball screw, Z 1204 ball screw,

12 mm optical axis

Spindle motor

400W  DC spindle , 0-9000r/min

Collet type

ER11,1/8″(3.175mm) Collet

Stepper motor and drive

57HS56

Repeat positioning Accuracy

0.02mm

Communication interface

USB Port

System requirements

Win-XP / Win 7 Win 8 Win10

Software Co

patability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Machine weight

27kg

Optional

4th Axis (Rotation axis)

5th Axis (A axis + B aixs)

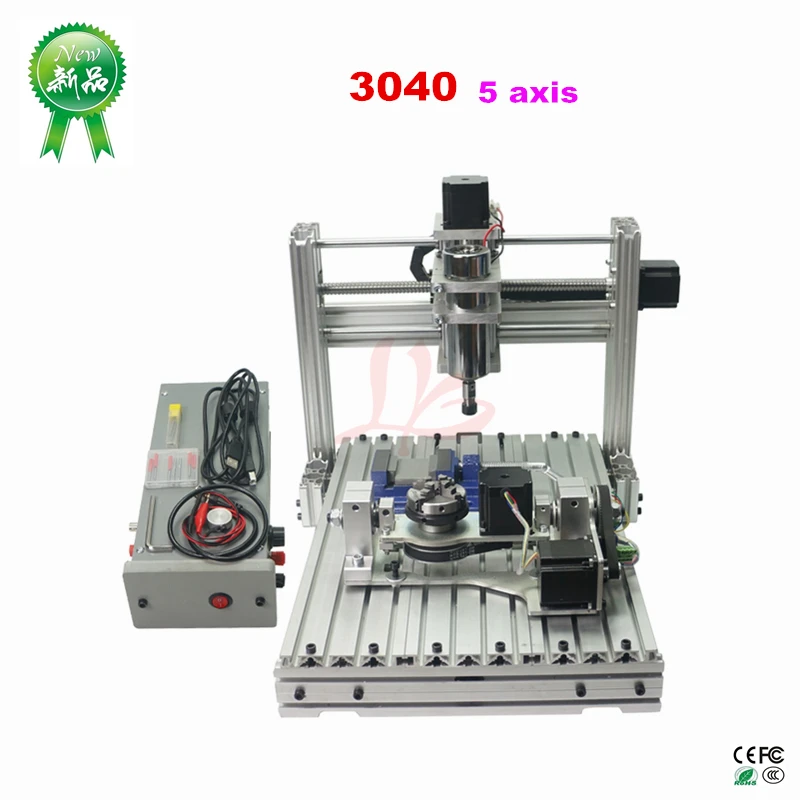

product picture

 3040-5axis.jpg3040 5axis metal (1).jpg3040 5axis metal  (1).jpg3040 5axis metal  (2).jpg3040 5axis metal  (3).jpg3040 5axis metal  (4).jpg3040 5axis metal  (5).jpg3040 5axis metal  (6).jpg3040 5axis metal  (7).jpg3040 5axis metal  (9).jpg3040 5axis metal  (10).jpg
