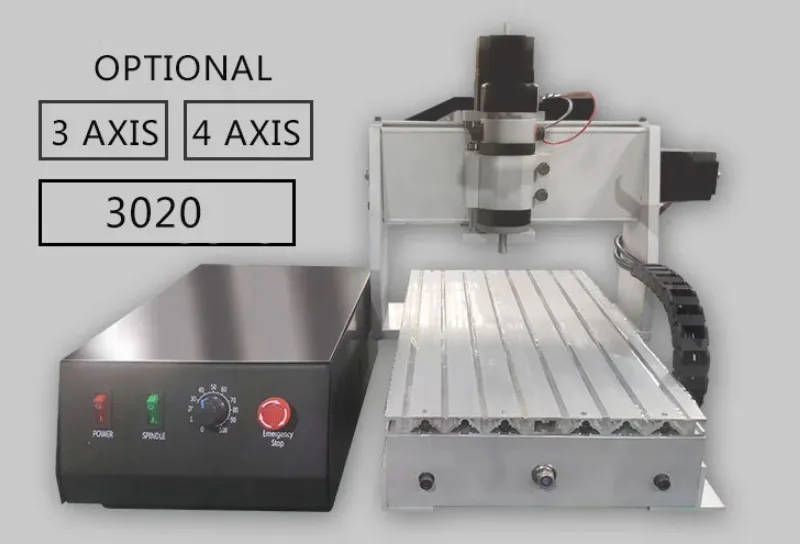

Mini Cnc 3020 Wood Engraving Machine 4 Axis Cnc Router Machine for Carving Wood with Pet Tag logo and Plastic Sign

 3,140.98

Saudi riyal (ر.س) - SAR
  • Saudi riyal (ر.س) - SAR
  • United States dollar ($) - USD
  • United Arab Emirates dirham (د.إ) - AED
Qty:
Compare
Overview
Product Paramenters

_______________________________________________________________________________________________________________________
Model
CNC3020T
Effective work schedule
200(X)*300(Y)*55(Z)(mm)
External dimensions
500*390*390(H)mm
Maximum thickness of material
≤65mm
Maximum workpiece size
240mm * 425mm
Working table size
240mm * 425mm * 15mm
Frame material
6061 aluminum alloy+6063 industrial aluminum
X, Y, Z axis screw
1202 trapezoidal lead screw
Sliding unit X axis
16mm chrome plated hard shaft
Sliding unit Y axis
16mm chrome plated hard shaft
Sliding unit Z axis
12mm chrome plated hard shaft
Stepper motor type
57 Two phase stepper motor-2A
Spindle motor
300W DC motor
Spindle speed
0~8000rpm/min (stepless speed regulation)
Empty running speed
0-1000mm / min
Engraving speed
0-1000mm/min (different materials vary)
Repetitive accuracy
≤0.05mm
Machine weight
23.5KG
