mini bead making lathe machine

ر.س12,449.95

Clear
Qty:
Compare

Request quotation for: mini bead making lathe machine

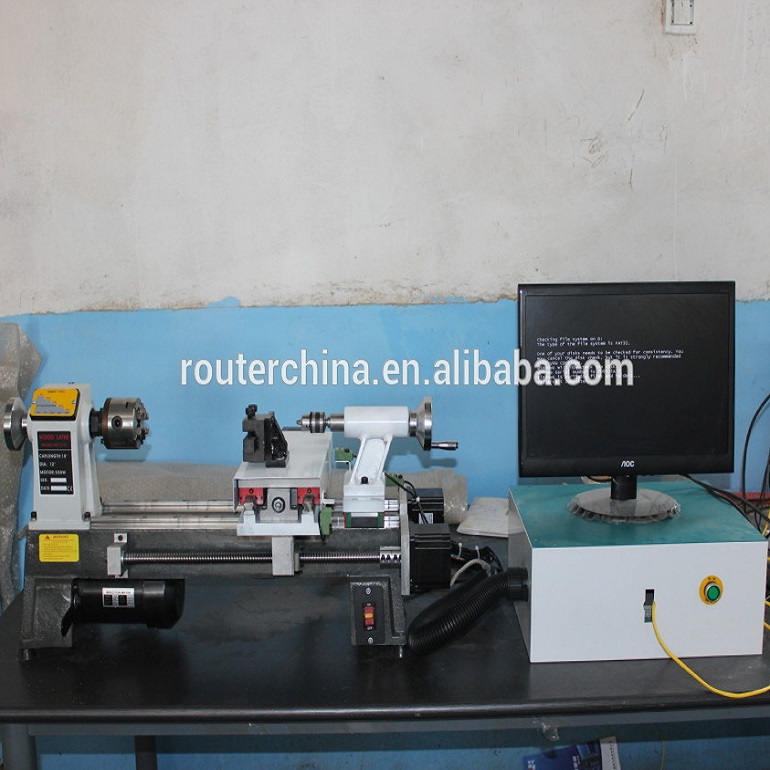

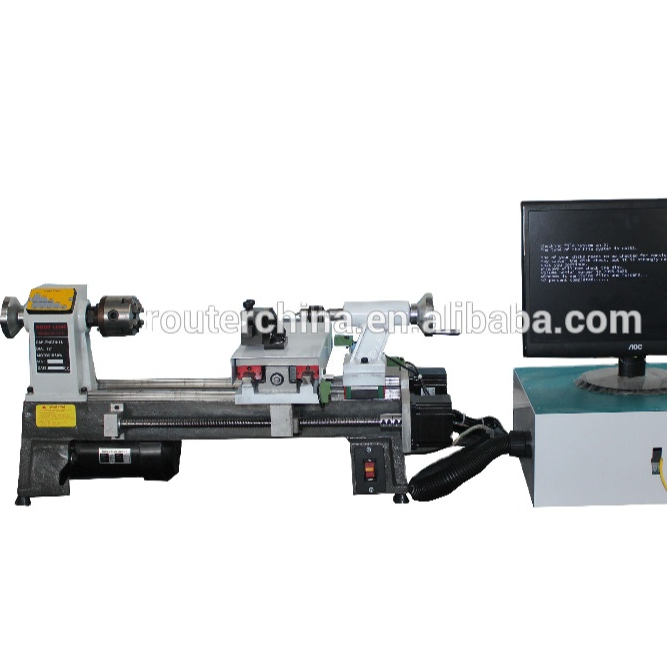

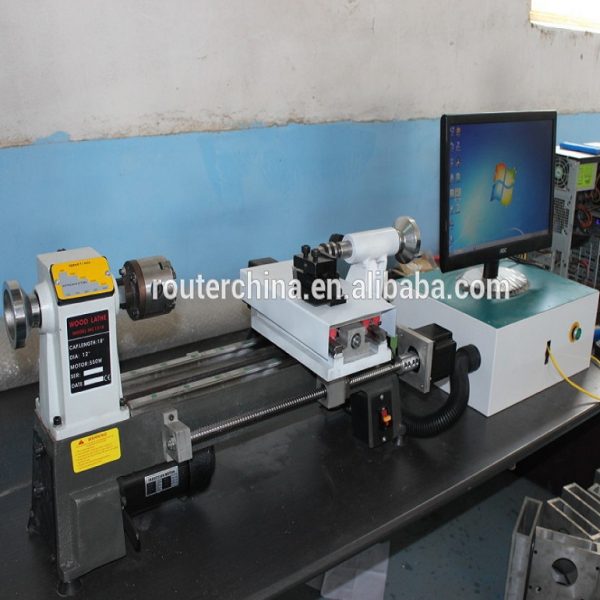

  mini bead making lathe machine

min wood lathe.jpg

Model

TJ 3080

Max. swing over bed

80mm

Distance between centers

300mm

Spindle bore

21mm

Taper of Spindle bore

MT3

Range of Spindle speeds

50-2500rpm

Taper of tailstock quill

MT2

Metric threads can be cut

0.5-3mm

Inch threads can be cut

10-44TPI

Max travel of cross slide

75mm

Bed of width

100mm

Travel of Tailstock sleeve

60mm

Motor power

650W

GW/NW

75/60KG

Package size( L*W*H )

780*480*420mm



Company Information

Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.

With many years’ hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.

We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.

cnc lathe

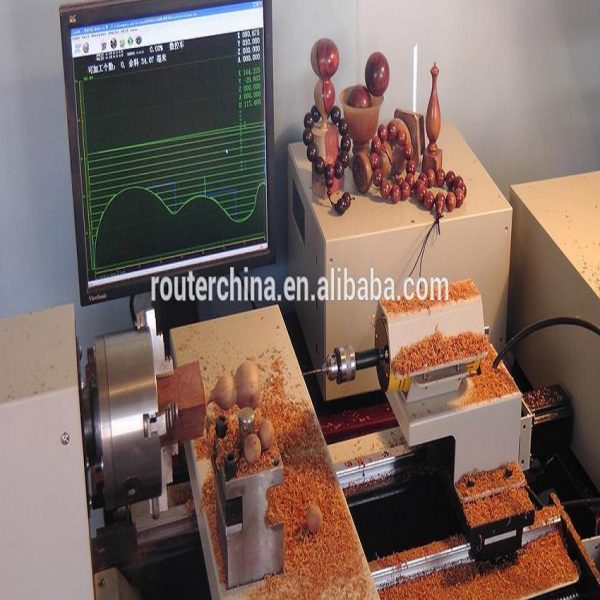

sample





mini cnc wood lathe 111.jpg

FAQ

Q1: How to choose a suitable machine?
       You can tell us the working piece material, size, and the request of machine function. We can
       recommend the most suitable machine according to our experience.

Q2: This is the first time I buy the machine, is it easy to operate?
       We can provide the operation manual or video for guiding. If it is hard for you learning, we can
       also help you by “Team viewer”online, with telephone or Skype explain.

Q3: Can you customize the machine for me?
       Yes, we provide customized solution, but considering the cost, we will recommend the
       standard configuration to you first.

Q4: What is the guarantee? In case the machine break down?
       The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
       “ normal operation”.

Q5: How about the documents after shipment?
       We will send all the documents by air after shipment. Including packing list, commercial
       invoice, B/L, and other certificates required by clients.

Q6: Delivery time?
       For standard machine, it would be 7-10 working days; for non-standard machine, it would be
       20 – 30 working days.

Q7: How is the payment?
       Normally we accept T/T or L/C, if you like other terms, tell us in advance.

Q8: Do you arrange the shipment for me?
       For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
       the shipment by yourself.

Q9: How is the packing?
       Step1: water proof wrapping film with foam protection in each corner.
       Step2: Solid seaworthy wood box package with steel belt.
       Step3: Save space as much as possible for container loading.

Our Services

–  One year machine warranty ,during the warranty period , if any parts broken,
   we change a new part for you freely.
–  All machines are debugged before shipment.
–  Lifetime technical support  and service.
–  24 hours on line or phone or by email technical support.
–  We offer detailed machine manual, software manual, controller manual.
–  Our factory make a vivid traing CD.
–  Maintenance  free of charge during lifespan.
–  Free training course at our plant.
–  Welcome to visit our factory, learn machine face to face.

 mini wood lathe mini wood router , mini cnc router , beading making machine
