Milling Machine cnc 6040 wood router machine with VFD USB port 3axis 800W router Milling Machine

ر.س7,729.51

Clear
Qty:
Compare

Request quotation for: Milling Machine cnc 6040 wood router machine with VFD USB port 3axis 800W router Milling Machine

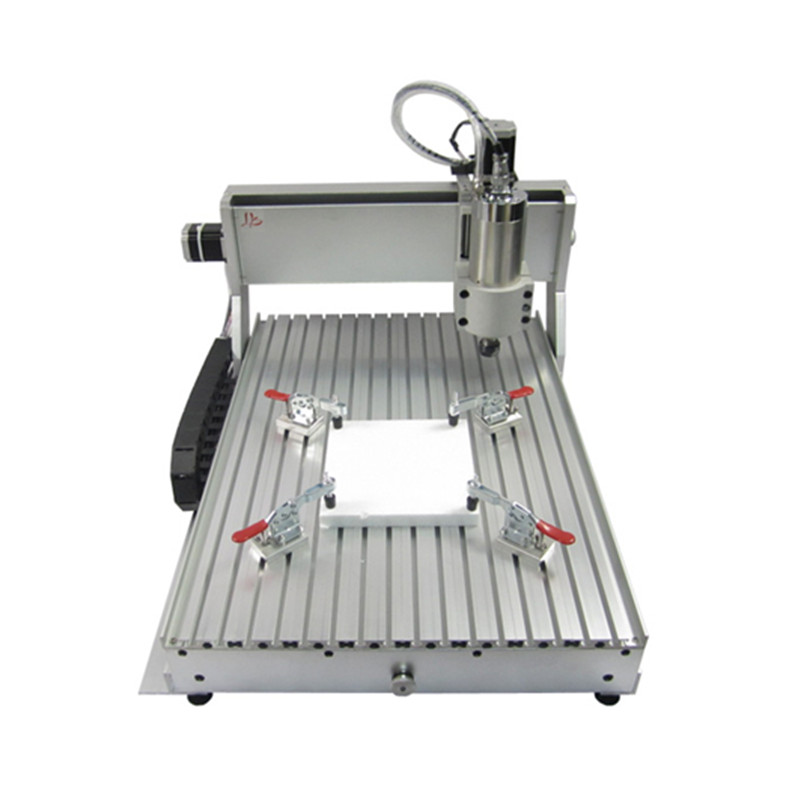

CNC 6040Z-VFD 800w Drilling Carving and Milling Machine  USB port 3axis





Product Description

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

Model and Technical Parameters

MODEL

6040Z-VFD800W

Attribute

3axis-LPT

3axis-USB

4axis-LPT

4axis-USB

Axis

3axis

3axis

4axis

4axis

Interface

LPT port

USB port

LPT port

USB port

Limit switch

Yes

yes

Yes

Yes

Tool auto-checking

Yes

yes

Yes

Yes

Spindle Motor:

800W

800W

800W

800W

Type of screw

Ball screw

Ball screw

Ball screw

Ball screw

Weigh

60

60

66

66

Machine Dimensions:

810X640X480mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

600X400mm

Z-Axis Stroke:

80mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤100mm

Rail type:

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

Ball screw 1605, Pitch 4mm

Spindle motor:

800W VFD water cooling spindle , 0-24000r/min

Collet type:

ER11,1/8″(3.175mm) Collet

Stepper motor and drive:

two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

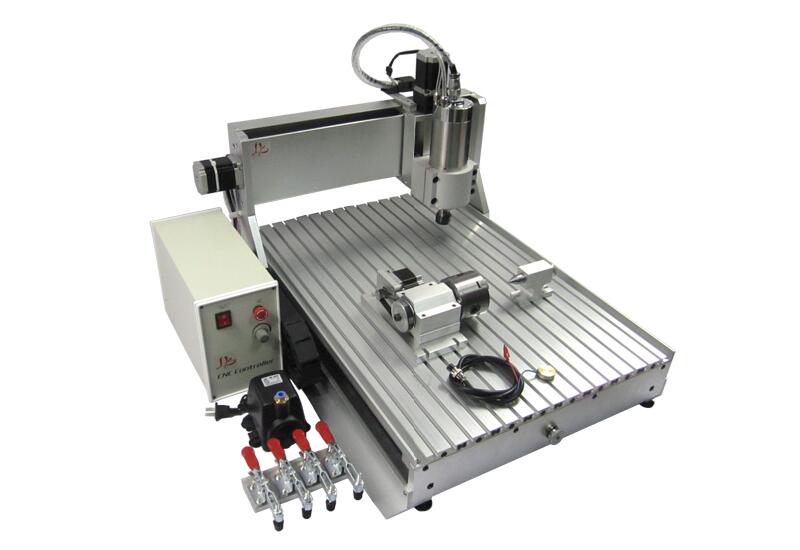

Rotation Axis (4th Axis)

Description:

Chuck Size: 80mm self-centering chuck

Center height: H = 49mm

Clamping diameter: 80mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 3:1

Stepper motor: 57 type  two phase 4 line

Positioning accuracy: 0.075 °









Packaging & Shipping

Packaging:

Packaging material: Carton/Wooden case with foam inside.

Shipping:

A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)

B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.

C. 25-30 workdays shippng from China to Russian customers. No need to pay for customs duties and VAT.

D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM

Our Services

1.We provide you the friendly English User manual or operating videos for free.

 2.24 hours technical support by email or calling.

 3.Warranty: 1 year free, 2-3 years cost price and free technical support always.

 4.Free training to make sure you master the operating of our products.

 5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.

Company Information

USBearth business group is located in Shenzhen, China.

Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .

We has 10 years experiences in manufacturing and foreigh trade

Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …

CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.



FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
