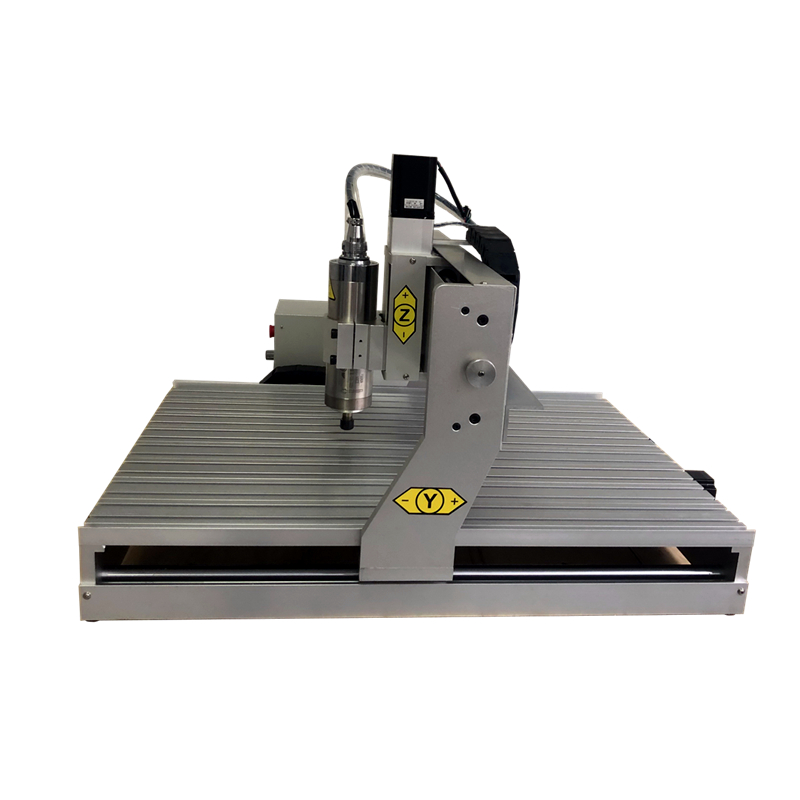

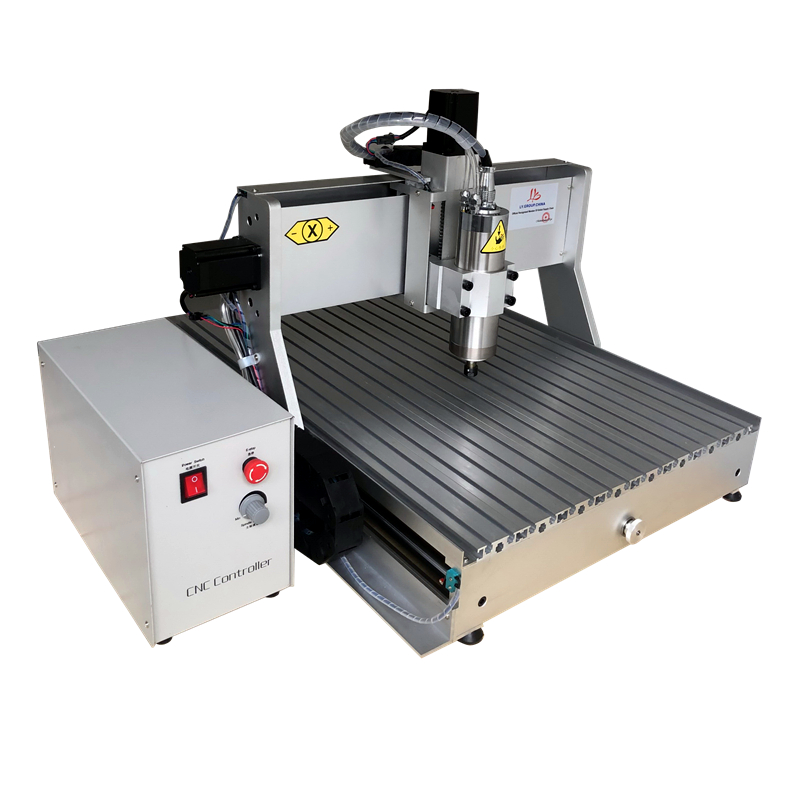

CNC 6040Z-VFD 800w Drilling Carving and Milling Machine USB port 3axis
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
|
MODEL |
6040Z-VFD800W |
|||
|
Attribute |
3axis-LPT |
3axis-USB |
4axis-LPT |
4axis-USB |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Interface |
LPT port |
USB port |
LPT port |
USB port |
|
Limit switch |
Yes |
yes |
Yes |
Yes |
|
Tool auto-checking |
Yes |
yes |
Yes |
Yes |
|
Spindle Motor: |
800W |
800W |
800W |
800W |
|
Type of screw |
Ball screw |
Ball screw |
Ball screw |
Ball screw |
|
Weigh |
60 |
60 |
66 |
66 |
|
Machine Dimensions: |
810X640X480mm |
|||
|
Rack material: |
6061 and 6063 Hard aluminum alloy |
|||
|
Engraving area: |
600X400mm |
|||
|
Z-Axis Stroke: |
80mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness: |
≤100mm |
|||
|
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||
|
Type of screw: |
Ball screw 1605, Pitch 4mm |
|||
|
Spindle motor: |
800W VFD water cooling spindle , 0-24000r/min |
|||
|
Collet type: |
ER11,1/8″(3.175mm) Collet |
|||
|
Stepper motor and drive: |
two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. |
|||
|
Maximum operating speed: |
4000mm/min (Engraving speed : 300-3000mm/min) |
|||
|
Repeat positioning Accuracy: |
0.03mm |
|||
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||
|
Rotation Axis (4th Axis) Description: |
Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type two phase 4 line Positioning accuracy: 0.075 ° |
|||
|
|
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shippng from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
