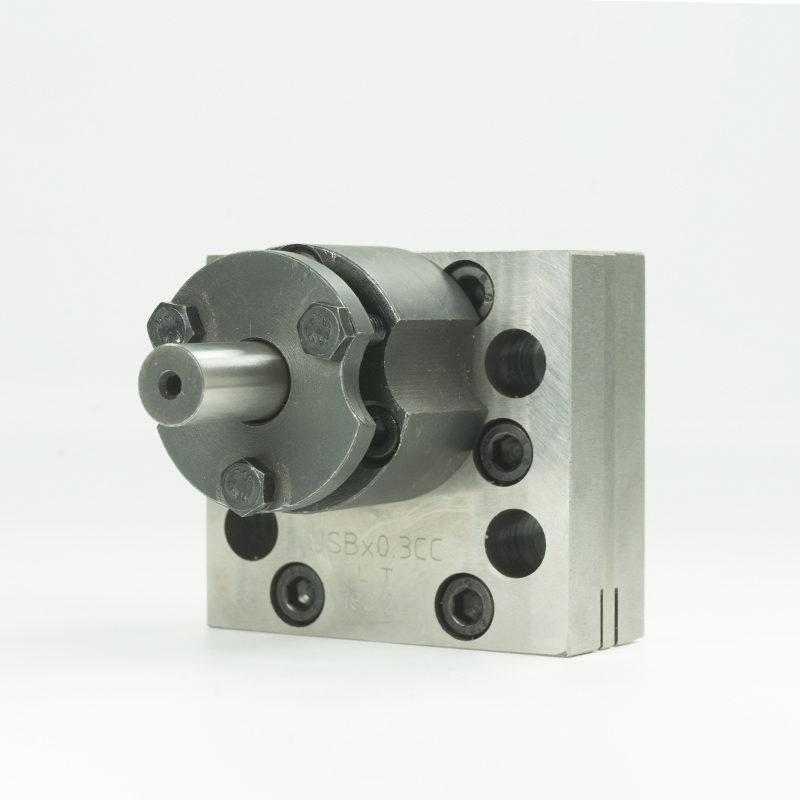

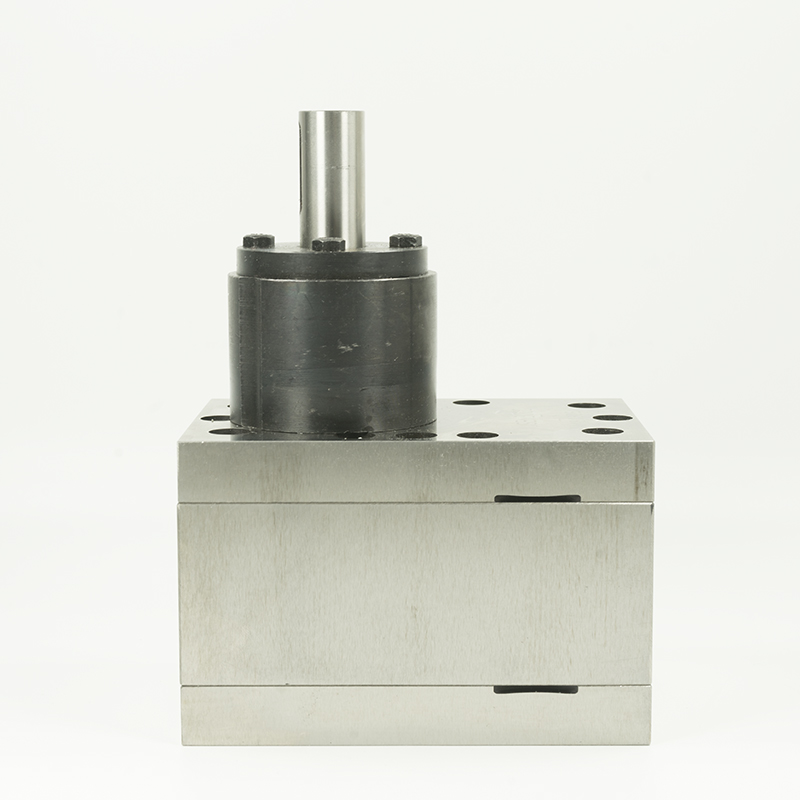

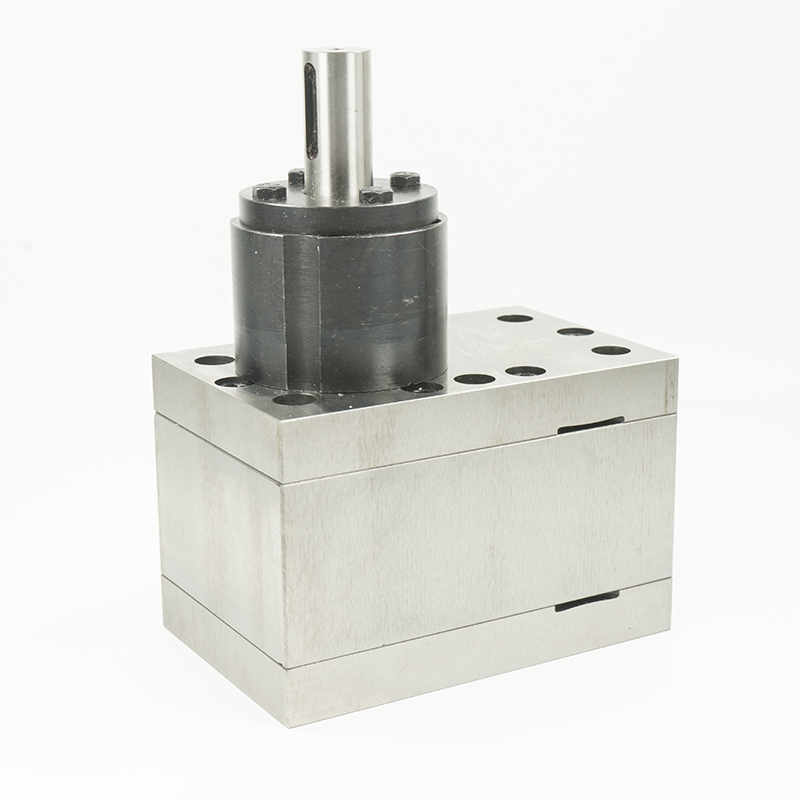

Metering Gear Pumps for dosing solvent water and UV paints

Metering Gear Pumps for dosing solvent water and UV paints

[Features of Metering Gear Pumps for dosing solvent water and UV paints ]

High precision

The Cixi  Metering Gear Pumps for dosing solvent water and UV paints accuracy is (+-)0.3%

Unique design
Using a sturdy gear drive coupling Reduced product accuracy error;

Long lasting

The gear metering pump usually can be used 5-10 years.

cixi  Metering Gear Pumps for dosing solvent water and UV paints working principle of the gear metering pump is that the gear metering pump passes through a pair of mutually meshing gears, one of which is a driving gear and the other is a driven gear, which is driven to rotate by the driving gear. The gears have a small gap directly in the housing of the pump. When the gear rotates, in the liquid suction chamber where the gear teeth gradually disengage, the sealed volume between the teeth increases, forming a partial vacuum, and the liquid is sucked into the liquid suction chamber under the pressure difference. As the gear rotates, the liquid is divided into two paths. The casing is pushed forward by the gear and sent to the draining chamber. In the draining chamber, the two gears are gradually meshed, the volume is reduced, and the liquid between the gears is squeezed to the draining port.

[Parameters]

 [Company Info]

• Our Company is Top 10 Manufacture on Alibaba;
• We have about 30 years of experience in Manufacture;
• Our products have been exported to more 100 coutries and area;
• ISO,SGS,CE and more ceterficates for you reference;
• Patent technology and more than 3 years working life
