Metal Pipe Corrugated Duct Making Machine Post Tension Duct Forming Machine

J110 series corrugated pipe machine a kind of equipment for producing pre-stressed concrete reserved tunnel metal bellows makes the galvanized steel strip coil into double wave shape then undercuts and swages to apply the bellows, Which With high efficiency and Small volume, Easy operation and maintenance, convenient and speed adjustable. It is suitable for centralized use at construction sites and factories.

Performance and advantages:

1.Easy to learn, easy to understand.

Three to five days to learn; factory a professional system technician.

2.Save material.

(0.27×35.6) of the steel, it could produce more duct; other models machine, such as: (Pin machine type YJG110, type 135, etc.) ,distance of two corrugation is generally between 24 ~ 26mm, the per meter of duct is about 40 laps; and the machine [LCB-7A type] is 26.5 ~ 28.5mm, about 35 laps per meter duct.

3.Fast, with stepless speed motor.

Main motor model YCT180-4A;

Power: N = 4kw (5.5kw)

Cutting machine power: N = 2.2kw

Pump power: N = 40w

Water tank capacity: 22 L

(All-round worker:   Dia 70: 2000 m / 12h   Dia 50: 3000 m / 12 h)

4.Power saving.

Dia 70: 0.7kwh / 100m

5.Durable

Make 200,000 meters needn’t extensive repair.

6.Quality

In line with JG / T225-2007 standard(Corrugated Metal Ducts for Prestressed Concrete) “Industrial standards of People’s Republic of China”

A.Radial rigidity≤ 0.2;

B.Tensile load≥4500N;

C.Concentrated load resistance 800N deformation is not greater than 0.2d.

7.Inner diameter of pipe:

(A type) Dia 35mm – Dia 135mm

(B type) Dia 35mm – Dia 300mm

8.Steel strip thickness: 0.22 ~ 0.32mm

9.weight: 400kg

10.Dimensions: 1100mm×800mm×1400mm (L×W×H)

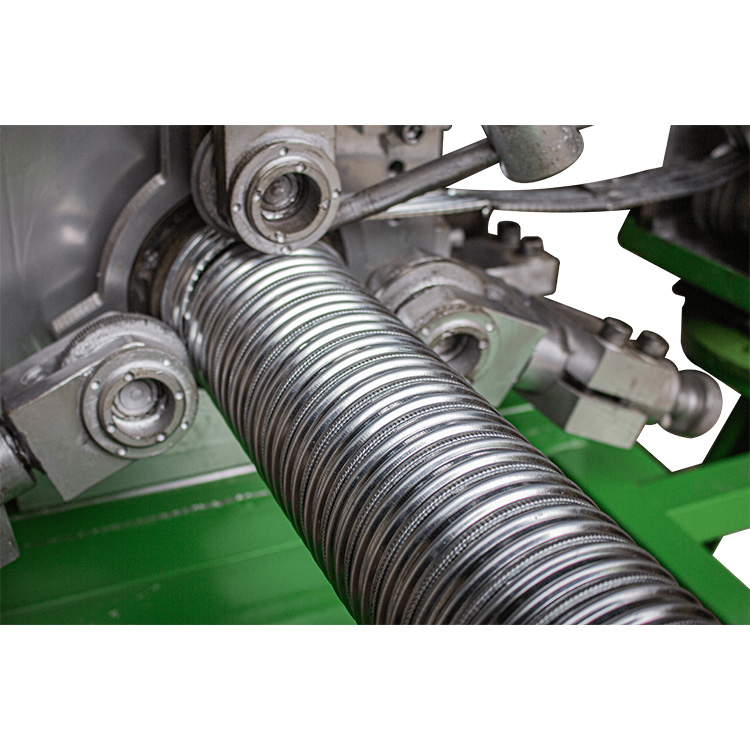

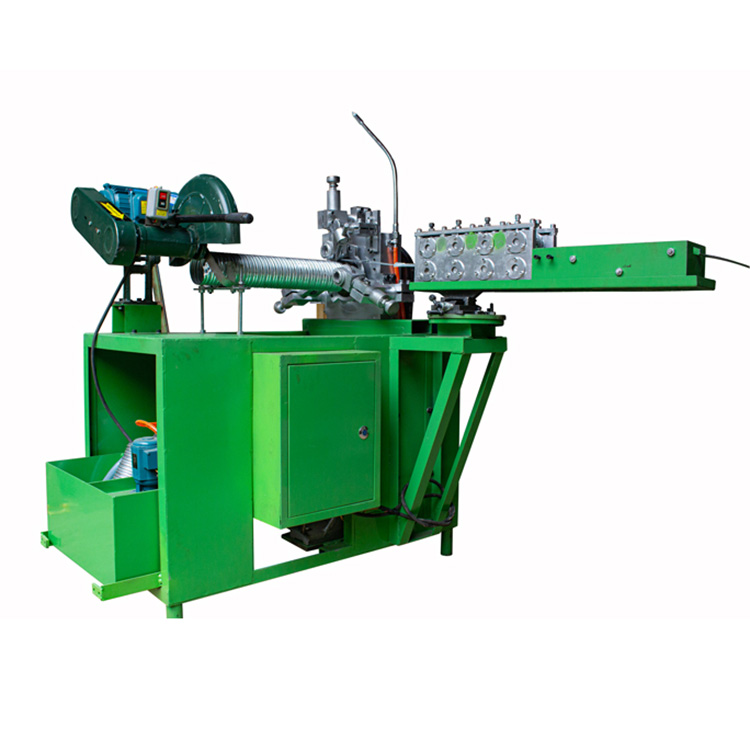

Detail pictures :
