Mechanical Digital Schmidt Concrete Rebound Hammer Hardness Tester
HT225 fully automatic integrated rebound hammer tester is used for non-damage detection and assessment of compressive strength of hardened concrete in building structures.It can detect and record the parameters such as rebound value, carbonization depth value, Angle and test surface.The strength estimation results of the component can be given immediately after testing.
| mos image sensor | ||
|
Automatically record the rebound value |
||
|
Automatic data correction, calculation and statistical analysis according to the specification |
||
| LCD | ||
|
Two hundred thousand observation points |
||
| Rechargeable large capacity lithium battery | ||
|
123mm×55mm×25mm |
||
|
200g |
||
|
-10℃~45℃ |
||
|
Mechanical resilience |
Scope of strength |
10-60Mpa |
|
The kinetic energy of the nominal |
2.207J |
|
|
Spring stiffness |
7.84N/cm |
|
|
Impact hammer stroke |
||
|
Consistency error |
≤±0.5(The difference between the reading of the pointer of the mechanical resilience meter and the reading of the instrument screen) |
|
|
Steel anvil rate set rebound value |
80±2 |
|
|
55×55×270 |
||
|
|
1.0kg |
|
|
-10℃~40℃ |
||
|
Material: engineering plastic svolume:420*140*335mm weight:6kg |
||
 |
Integrated design. Small size.
|
1 |
| 2 |
The test results can be checked according to the chart, and the data is accurate and reliable.
|
 |
 |

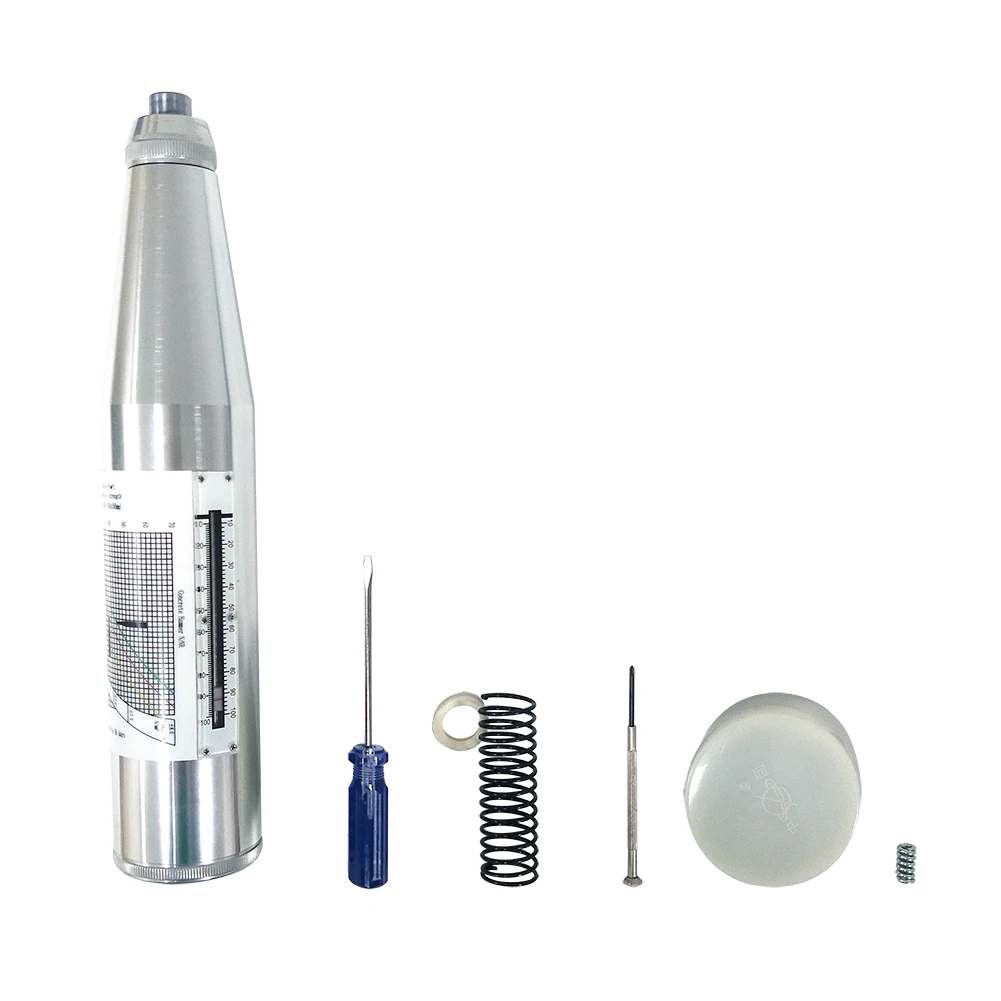

We have more accessories than our competitors
|
3 |
| 4 |

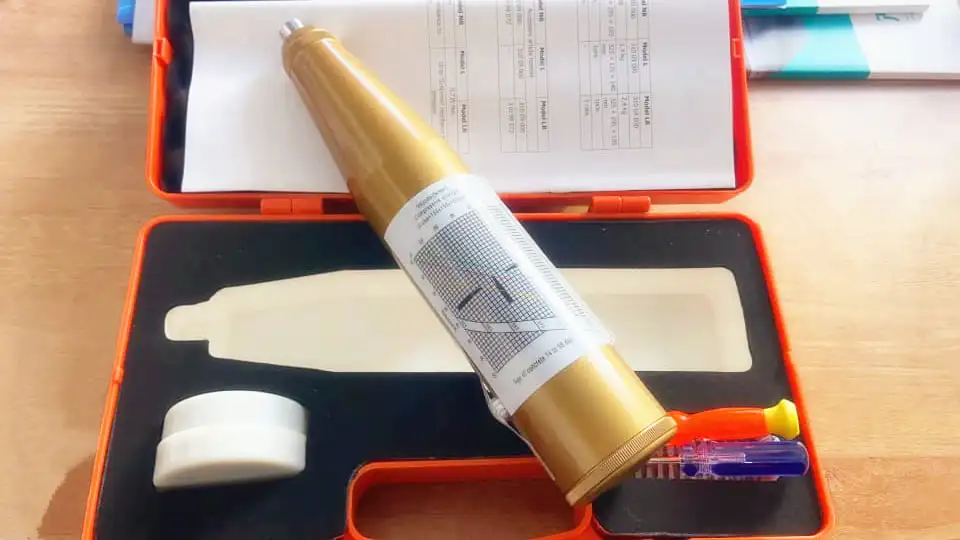

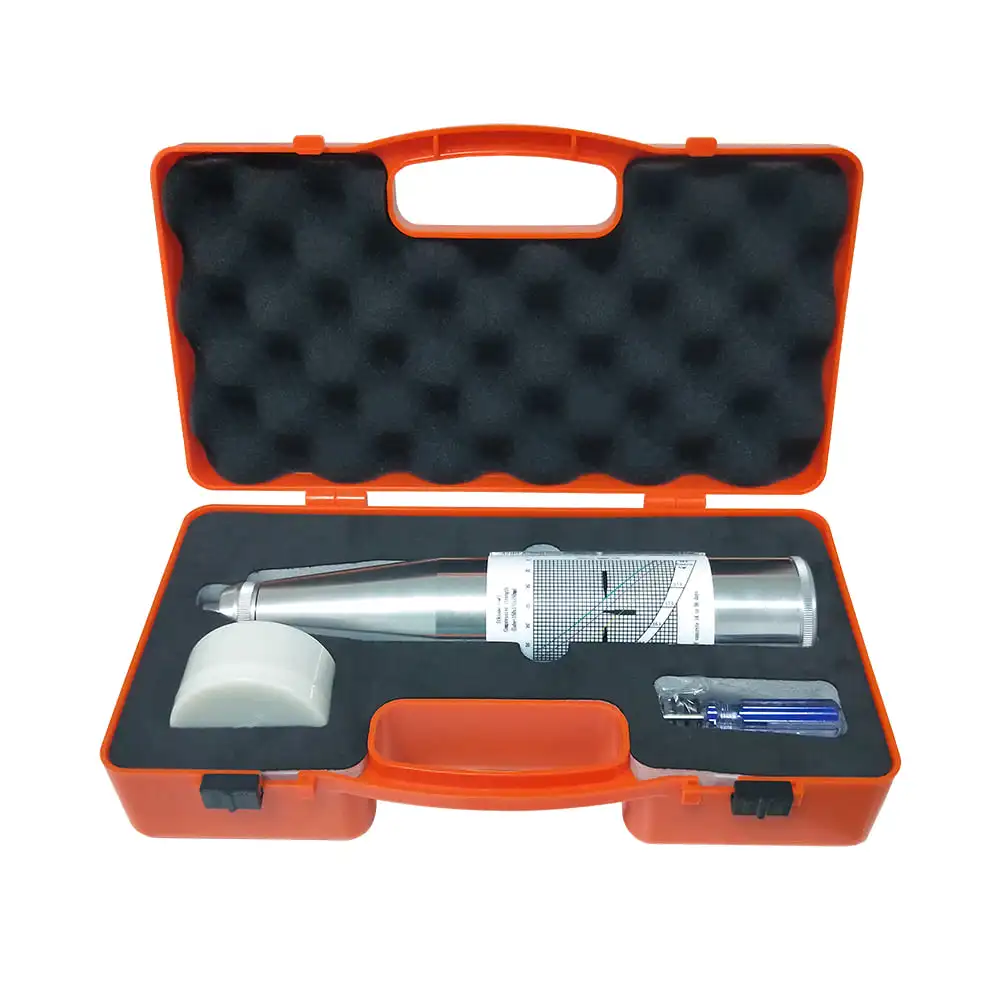

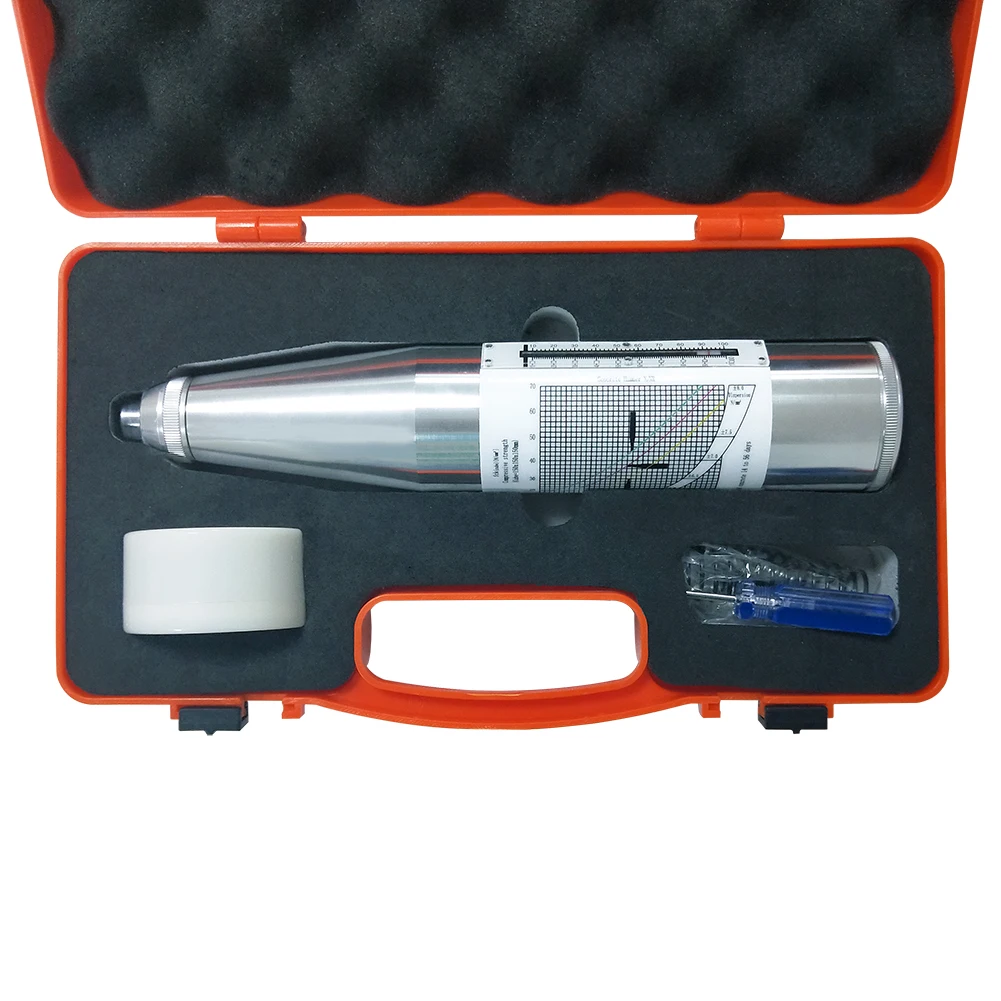

Package
Rugged engineering box
|
|
|
|
||
