MASTECH MY6013A Capacitor Tester Tecrep Portable Digital Capacitance Meter 200pF-20mF Electrical Test Diagnostic tool
Introduction

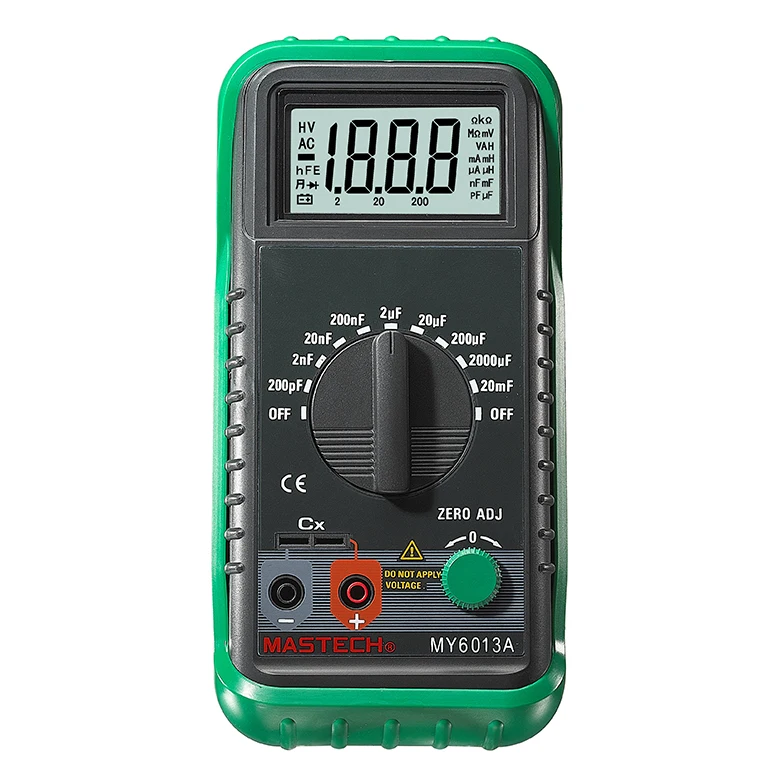

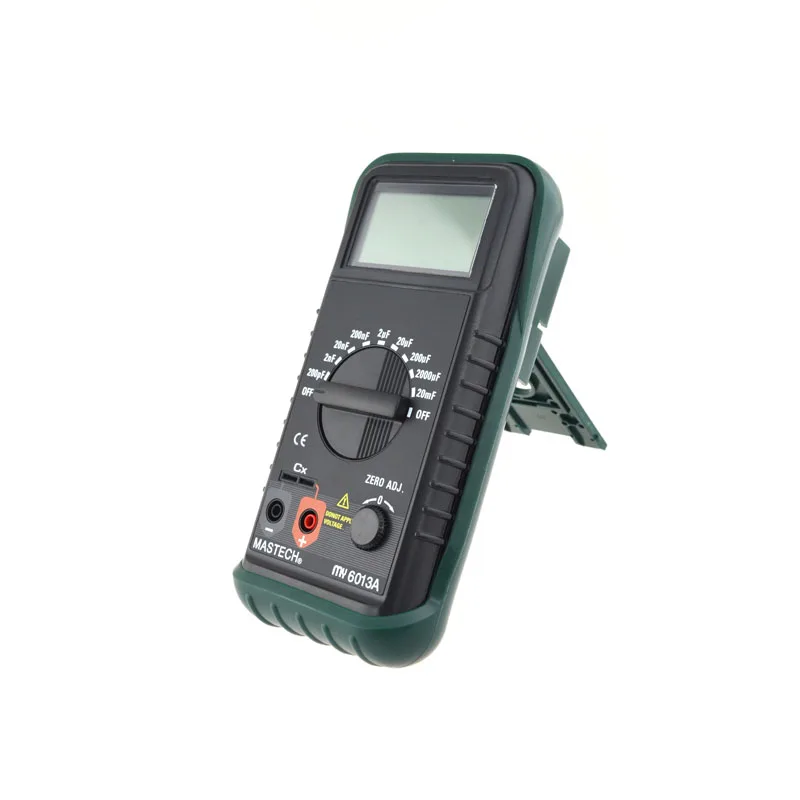

This Digital Capacitance Meter gives a direct reading of capacitance on a 3 1/2 digits LCD display. Nine ranges give precision readings from 0.1pF to 20mF, which includes virtually all capacitors used in electronic engineering laboratory, production,service shops and schools. Its battery operation, light weight, and small size make it a truly portable instrument.
* 21mm LCD display provided. MAX indication 1999.
* 9 Ranges form 200pF to 20mF.
* High accuracy in measuring.
* External knob adjustment of the zero value of the display, approx ± 20pf.
* Dual ¾ Slope integration A/D converter.
* Overload indication of “ 1 ”.
* Safety designed test probe.
* Size: 31.5mm ´ 91mm ´ 189mm ( H ´ W ´ L).
* Weight: 240g
Accuracy is specified for a period of one year after calibration and at 18°C to 28°C (64°F to 82°F) with relative humidity to 80%.
Power Supply 9V battery NEDA 1604 or 6F22 006P
Low Battery Indication “ ” appears on the display
Fuse Protection 100mA/250V
Excitation Vol Tage 2.8V peak,MAX
Operating Temperature 0°C to 40°C ( 32°F to 104°F)
Storage Temperature – 10°C to 50°C ( 14°F to 122°F)
Package Includes:
1 x Set test leads
1 x User manual
