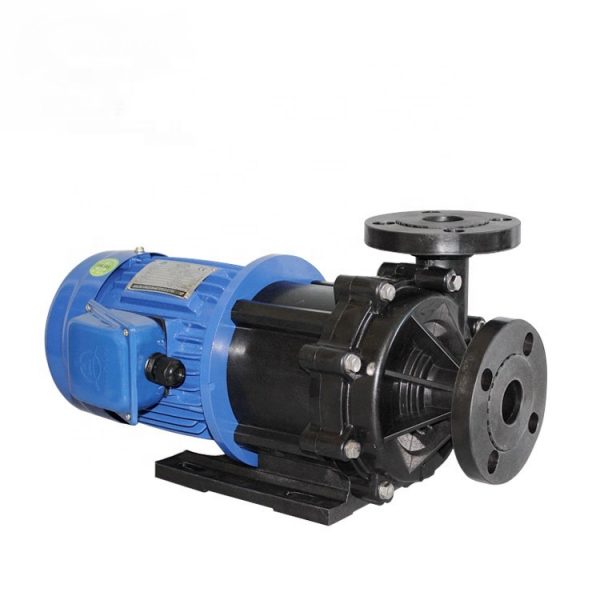

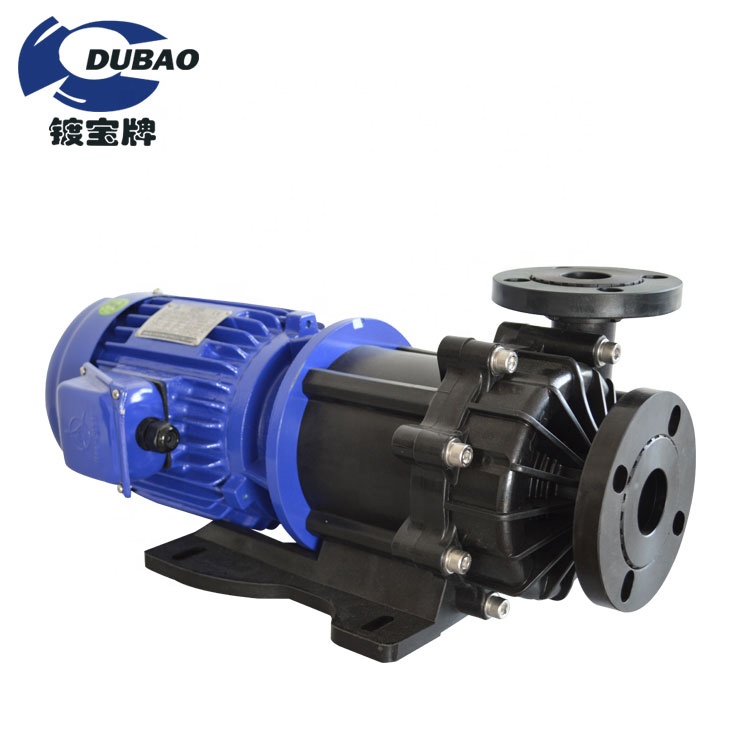

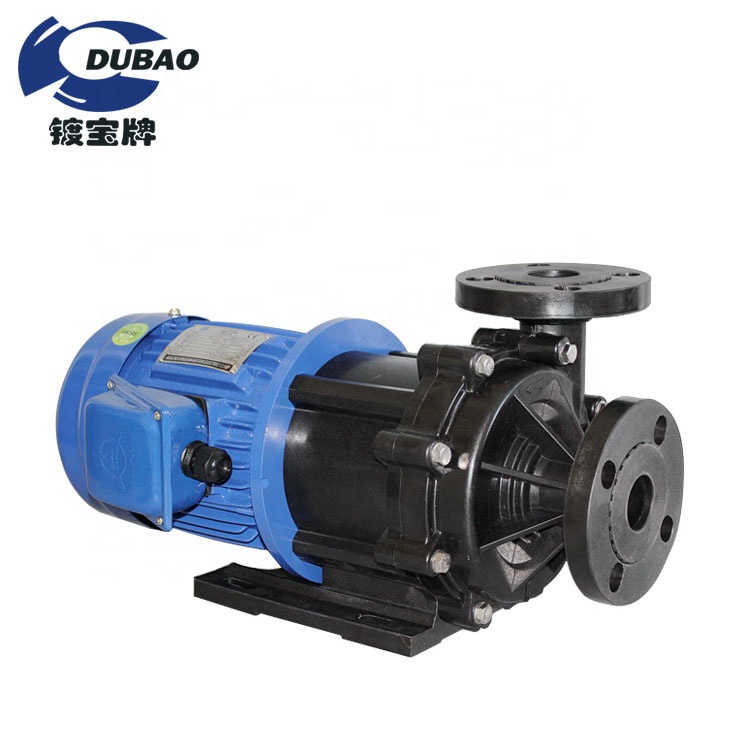

Manufactures Electric Magnetic Mag Centrifugal Drive Water Pumps For Chemical Using
• use magnetic drive, no shaft seal design, pump body fully sealed.• use FRPP and PVDF material injection molding, suitable for most chemical acid base liquid delivery.
• impeller and magnet integrated injection molding, in high-speed operation and high temperature is not easy to damage.
• this series of pumps because of its innovative design of resistance to idling, the magnetic pump running without water for a long time without damage, improve product durability. Pump bearings are made of silicon carbide, ceramic and titanium materials, which can meet the needs of different workplaces.
|
Model |
Caliber |
Horse Power(HP) |
Power(W) |
Pole |
S.G |
Min Capacity L/min-m |
Standard Capacity-Head L/min-m |
Max capacity L/min |
|
|
Inlet |
outlet |
||||||||
|
MDH-400 |
G1 1/2XG1 1/2 (40X40) |
1/2 |
0.37 |
2P |
1.05 |
10-12.5 |
150-8.5 |
280 |
|
|
MDH-401 |
1 |
0.75 |
2P |
1.05 |
10-18.0 |
200-12.0 |
330 |
||
|
MDH-422 |
G2XG1 1/2 (50X40) |
2 |
1.5 |
2P |
1.2 |
20-23.0 |
200-18.5 |
400 |
|
|
MDH-423 |
3 |
2.2 |
2P |
1.2 |
20-24.0 |
300-20.5 |
500 |
||
|
MDH-425 |
5 |
3.7 |
2P |
1.0 |
50-29.0 |
400-25.5 |
600 |
||
|
MDH-525 |
65*65 |
5 |
3.7 |
2P |
1 |
60-32.0 |
500-18.5 |
700 |
|
1. suitable for all kinds of acid and alkali liquid cooling, spraying and washing equipment, waste gas tower, carving machine, waste water treatment and so on
2. controllable operation, never by air instead of damage
3. dry seal design, can protect the motor to prevent acid gas into the damaged bearing
4. it is suitable for the cyclic transportation of electroless nickel, electroless copper and various s pecial electroplating liquid
5.explosion-proof motor can be used according to the environment
