Name: LYCNC Router Engraver YOOCNC Engraving Drilling and Milling Machine 8060Z 1.5KW Spindle Mach3 USB Port
SKU: 212464905019181
Availability: InStock

LYCNC Router Engraver YOOCNC Engraving Drilling and Milling Machine 8060Z 1.5KW Spindle Mach3 USB Port

ر.س7,932.36 – ر.س9,288.77

Product Description

4 axis 1.5KW 8060 milling lathe machine cnc router diy

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

Model and Technical Parameters

MODEL	8060Z-1500W USB
Attribute	3axis	3axis+H	4axis	4axis+H
Axis	3axis	3axis	4axis	4axis
Interface	USB port	USB port	USB port	USB port
Limit switch	Yes	yes	Yes	Yes
Tool auto-checking	Yes	Yes	Yes	Yes

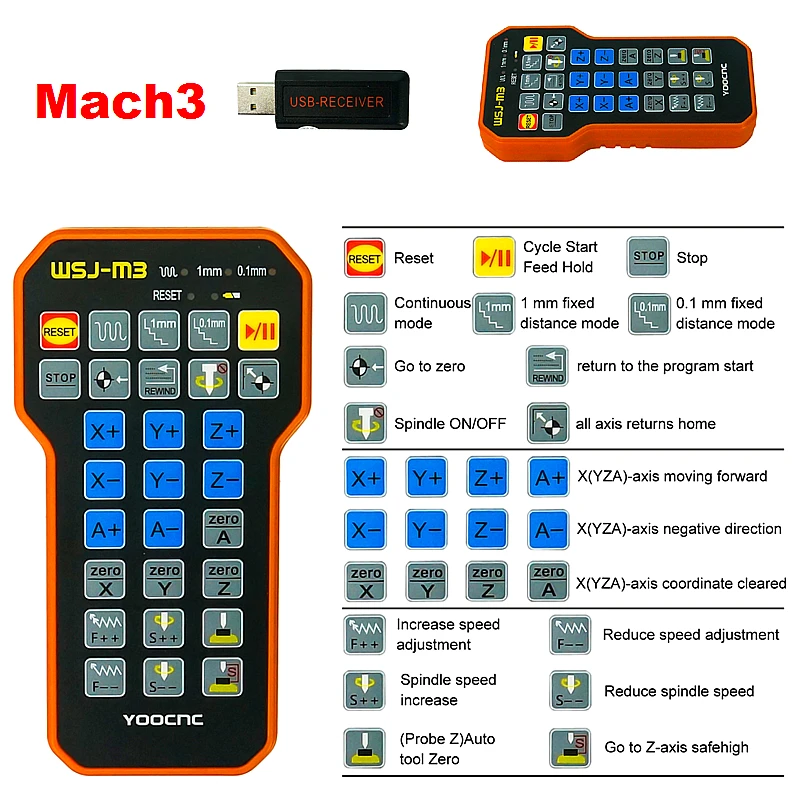

With control handle	No	Yes	No	yes
Spindle Motor:	1500W	1500W	1500W	1500W
Type of screw	Ball screw	Ball screw	Ball screw	Ball screw
Weigh	84	84	90	90
Machine Dimensions:	1120X880X520mm
Rack material:	6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area:	790X585mm
Z-Axis Stroke:	65mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness:	≤ 90mm
Rail type:	Chromeplate shaft + Linear Bearings, Surface hardening 61HRC
Type of screw:	Ball screw 1605, Pitch 5mm

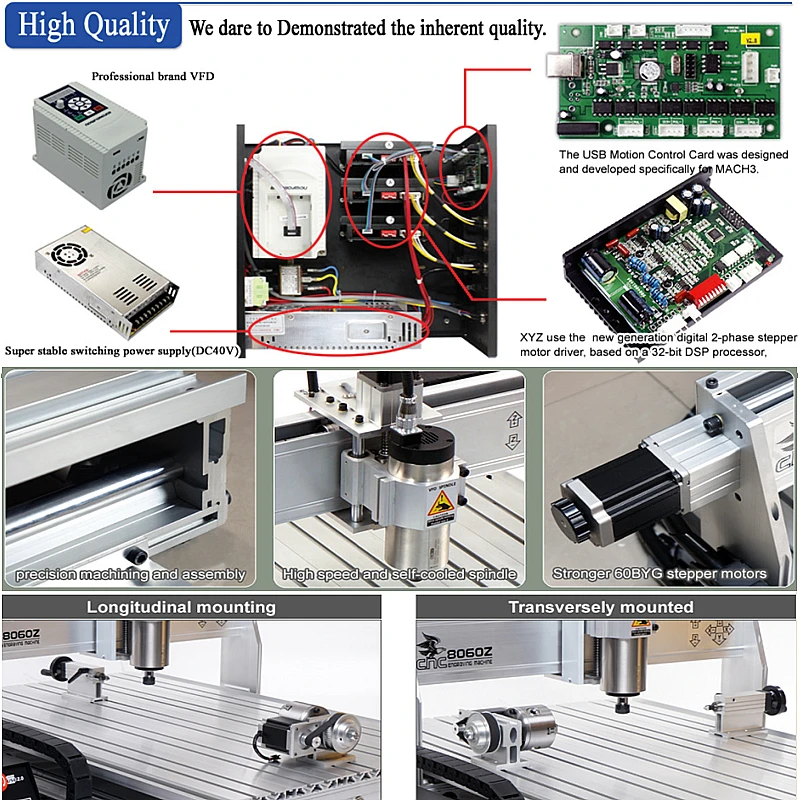

Spindle motor:	1.5KW Powerful Brushless frequency spindle , (2.2KW optional)
Collet type:	ER11,1/8″(3.175mm) Collet

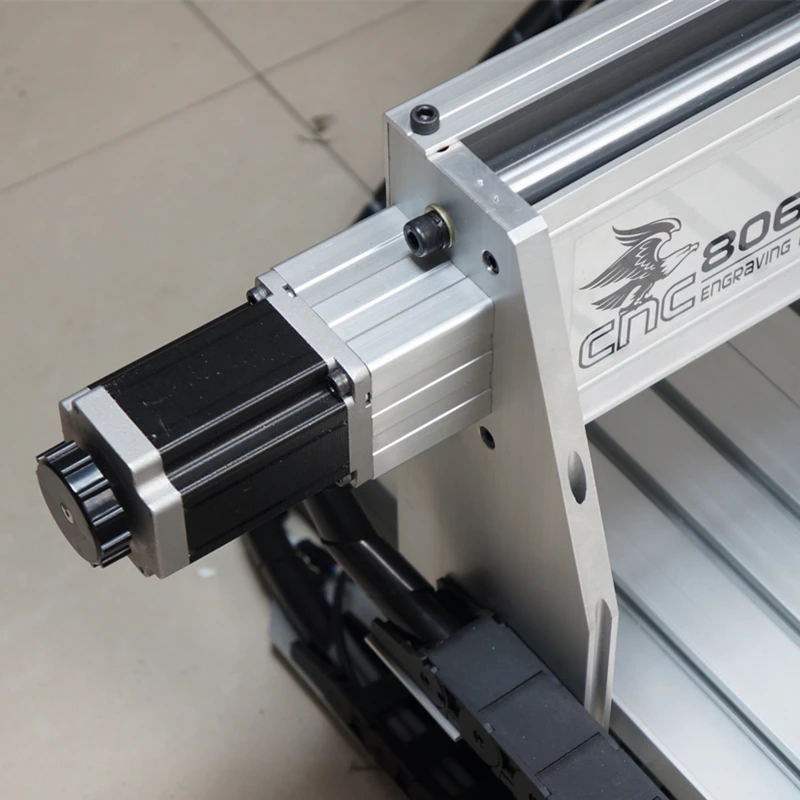

Stepper motor and drive:	60BYGH-4.2A, Each axis independently driven
Maximum operating speed:	4000mm/min (Engraving speed: 300-3000mm/min)
Repeat positioning Accuracy:	0.03mm
Software Compatability:	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt
Rotation Axis (4^th Axis) Description:	Center height: H = 60mm Maximum turning diameter: ≤ 110mm Deceleration ratio: 3:1 Stepper motor: NEMA23BHH76-3A Weight: 6KG
