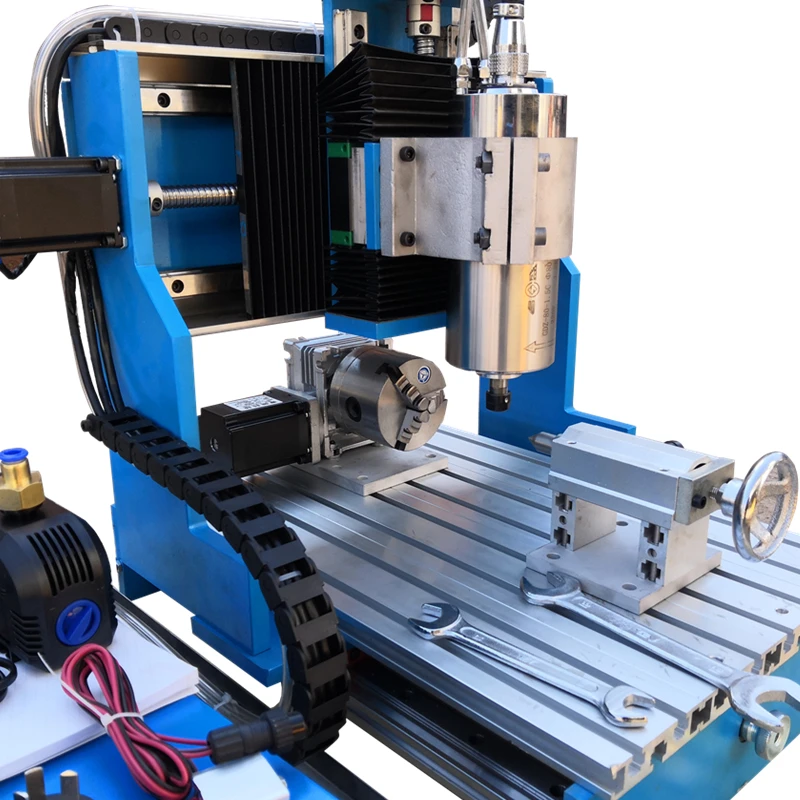

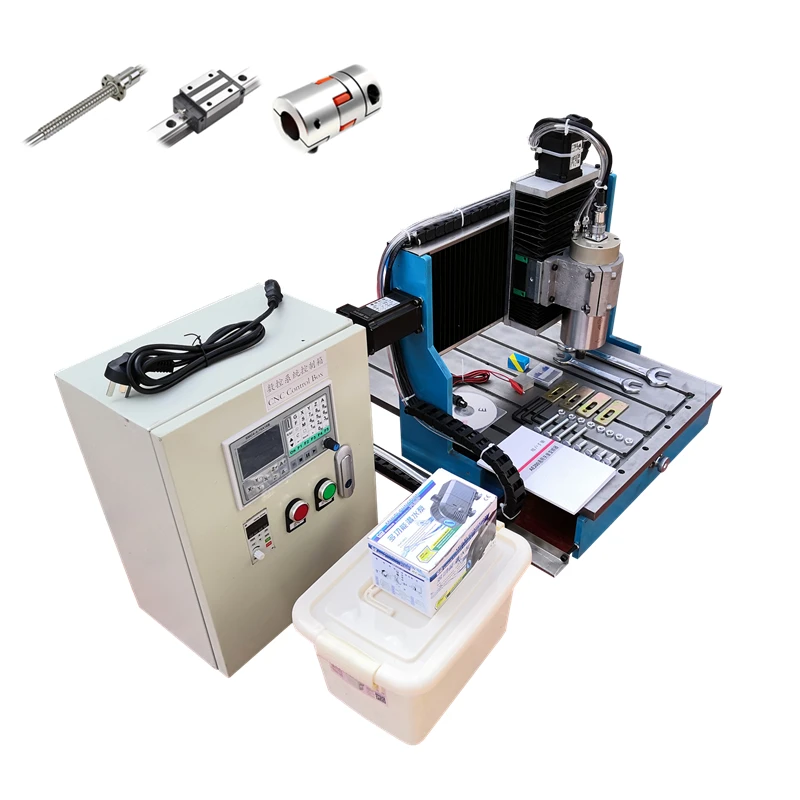

LY Linear Guideway CNC Router 6040L 2.2KW VFD Water Cooling Spindle USB 3Axis 4Axis Metal Engraving Machine Steel Table

MODEL

6040L-2.2KW

Attribute

3axis-LPT

3axis-USB

4axis-LPT

4axis-USB

Axis

3axis

3axis

4axis

4axis

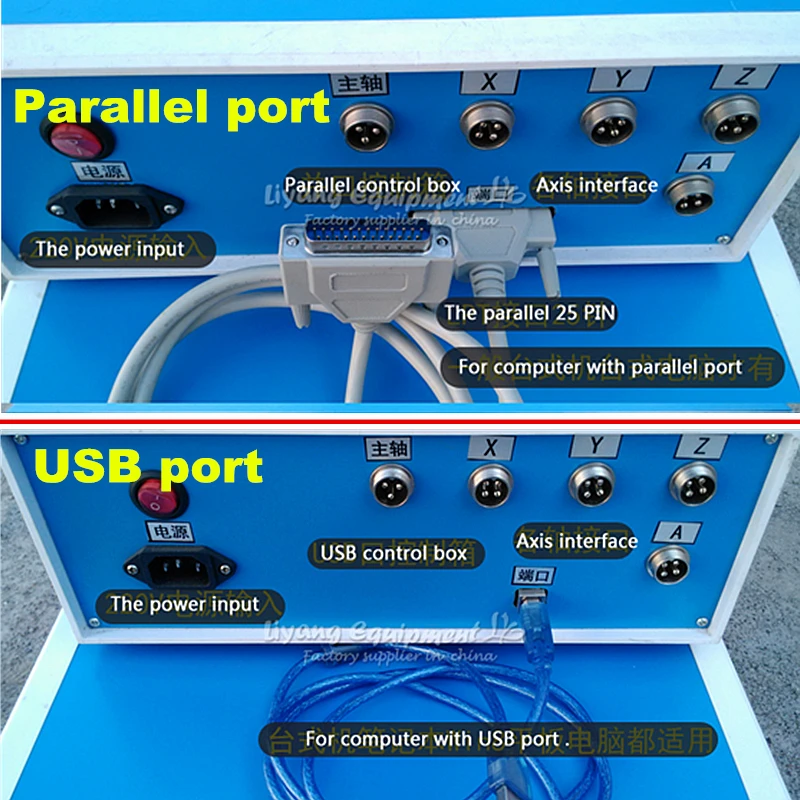

Interface

LPT port

USB port

LPT port

USB port

Toolauto-checking

Yes

Yes

Yes

Yes

Weigh

140

140

150

150

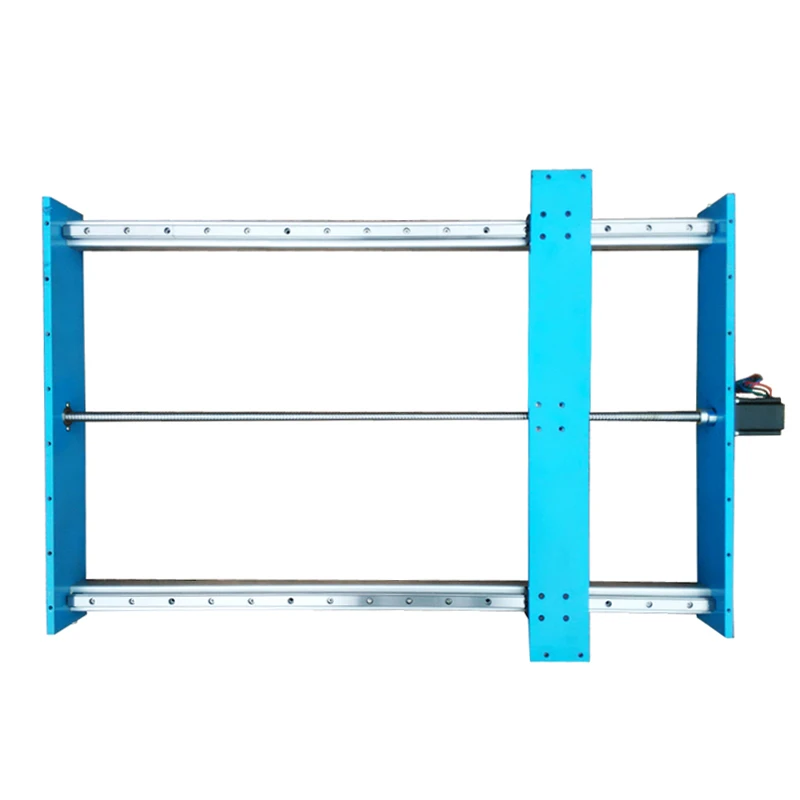

Rack material:

45# steel (14mm and 12mm)

Table material:

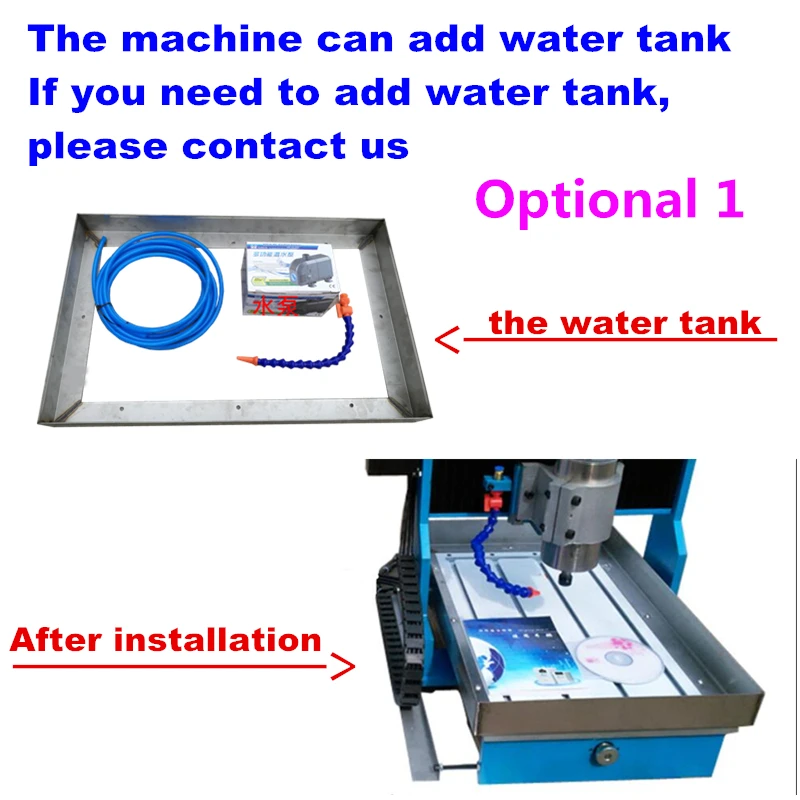

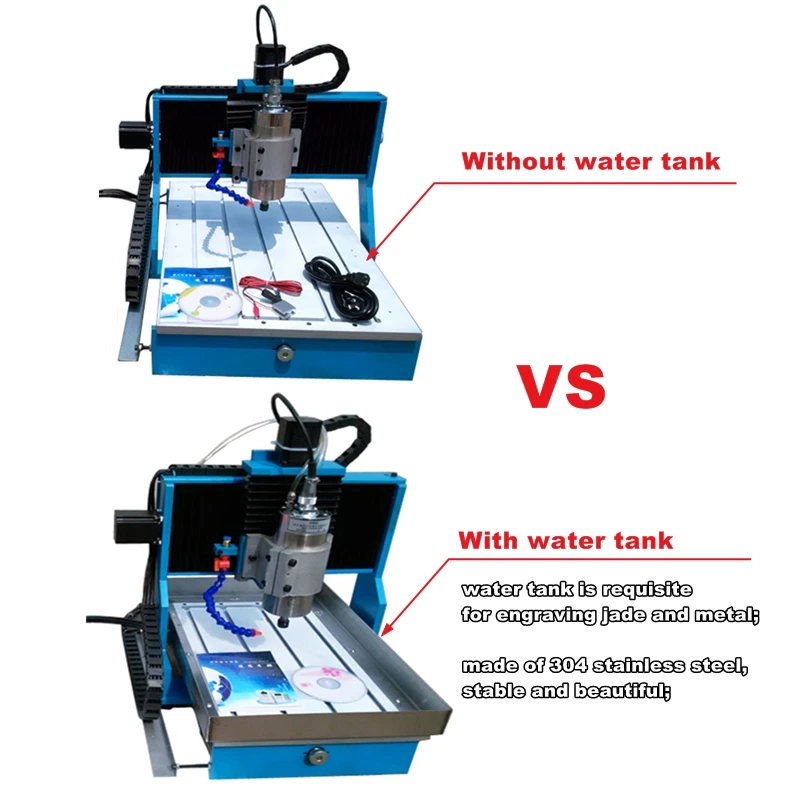

18 mm t-slot table, 45th steel six-sided flat grinding, one table, water holes, the water cycle, t-slot for M8 screws, t-slot width of 80 mm.

Machine Dimensions:

620*830*600mm

Engraving area:

XYZ=360*570*120mm

Z-Axis Stroke:

120mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤ 140mm

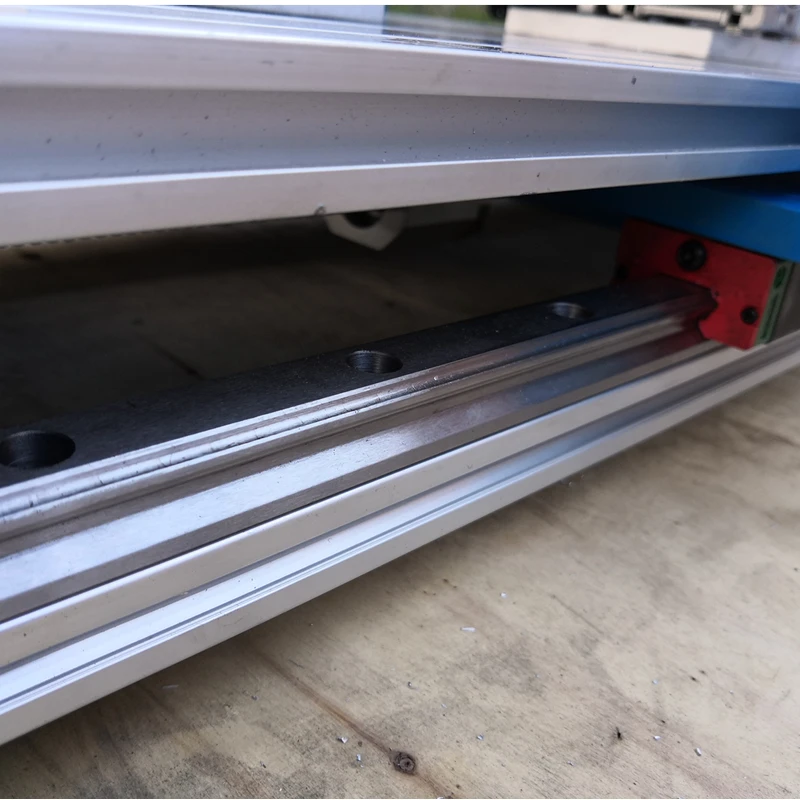

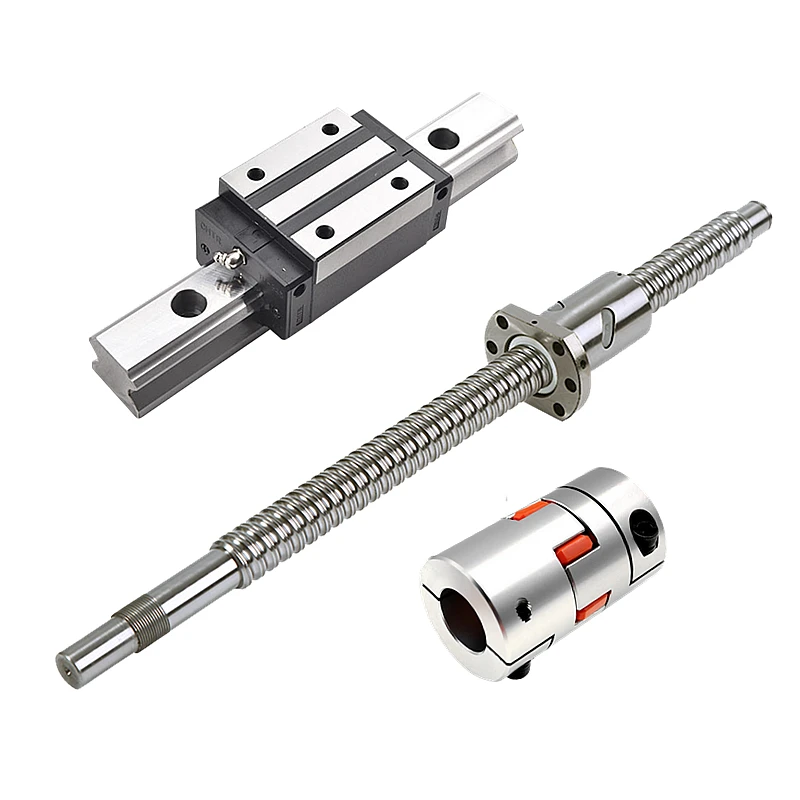

Rail type:

Square line rail track, three-axis is TRH20 mm square wire track,

high precision, high strength, top configuration.

Type of screw:

Ball screw 1605

Spindle motor:

2.2KW VFD water cooling spindle ,0-24000r/min

Collet type:

ER20 Collet

Stepper motor and drive:

two-phase 57/3A/M542

Maximum operating speed:

4000mm/min (Engraving speed: 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

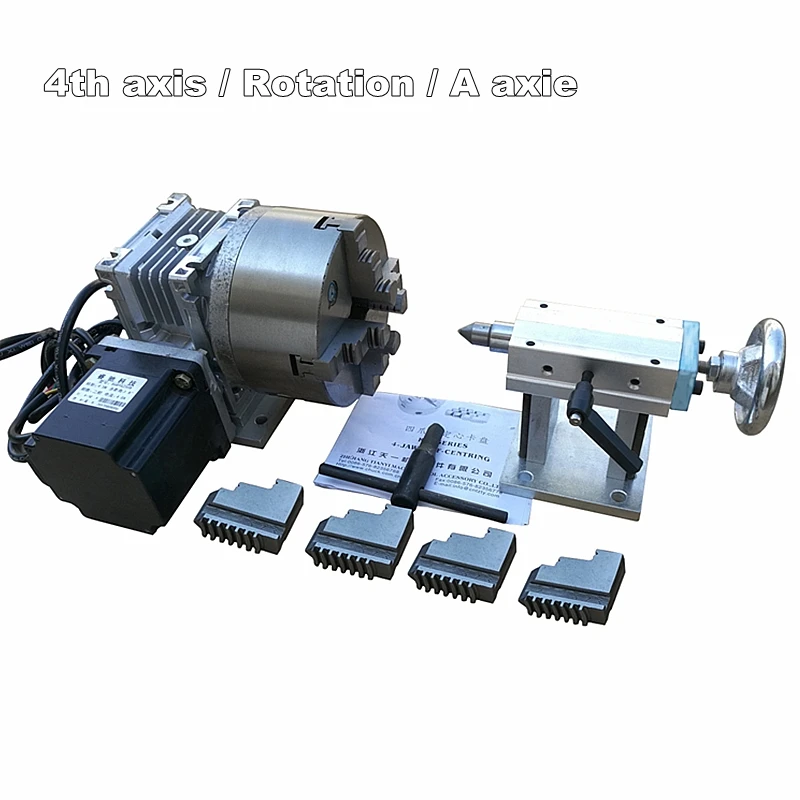

Rotation Axis (4^th Axis)

Description:

Chuck Size: 80mm self-centering chuck

Center height: H = 70mm

Clamping diameter: 63mm or less

Deceleration mode: Gear box

Deceleration ratio: 20:1

Stepper motor: 57 type / 3A two phase 4 line

Positioning accuracy: 0.075 °
