Name: LY CNC Router 6040 4Axis LPT Engraving Drilling and Milling Machine 1.5KW Spindle with Water Tank Metal Wood Working
SKU: 212184744019181
Availability: InStock

LY CNC Router 6040 4Axis LPT Engraving Drilling and Milling Machine 1.5KW Spindle with Water Tank Metal Wood Working

ر.س5,977.84 – ر.س6,636.27

Product Description

LY CNC Router 6040 4Axis LPT Engraving Drilling and Milling Machine 1.5KW Spindle with Water Tank Metal Wood Working

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

Model and Technical Parameters

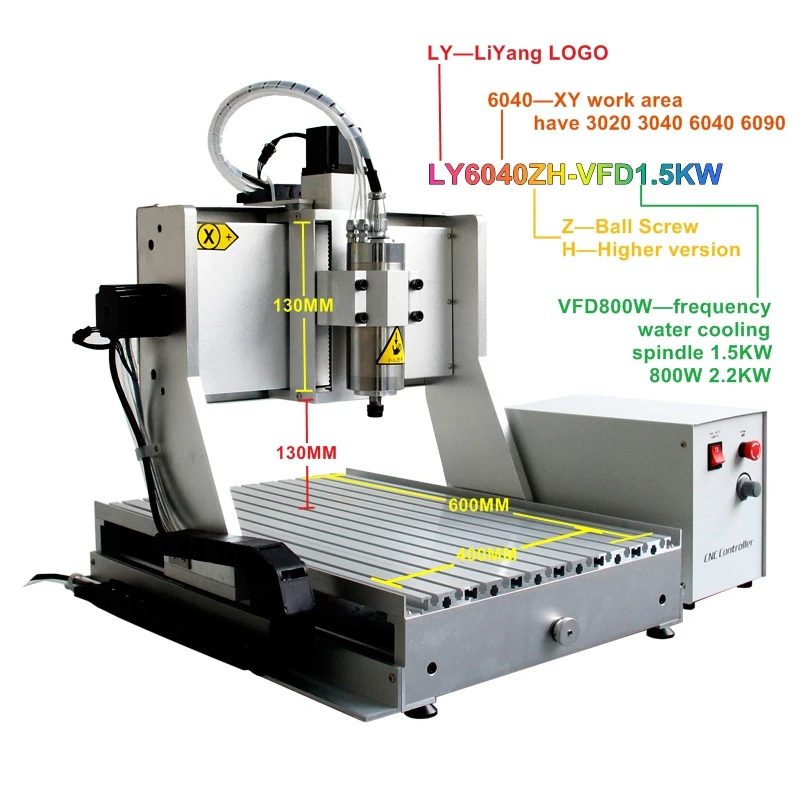

MODEL	6040ZH (Higher Version)
Attribute 1	0.8KW		1.5KW		2.2KW
Attribute 2	3axis-LPT	3axis-USB		4axis-LPT		4axis-USB
Axis	3axis	3axis		4axis		4axis
Interface	LPT port	USB port		LPT port		USB port
Limit switch	Yes	yes		Yes		Yes
Tool auto-checking	Yes	yes		Yes		Yes
Type of screw	Ball screw	Ball screw		Ball screw		Ball screw
Weigh	88	88		92		92
Machine Dimensions:	810X640X480mm

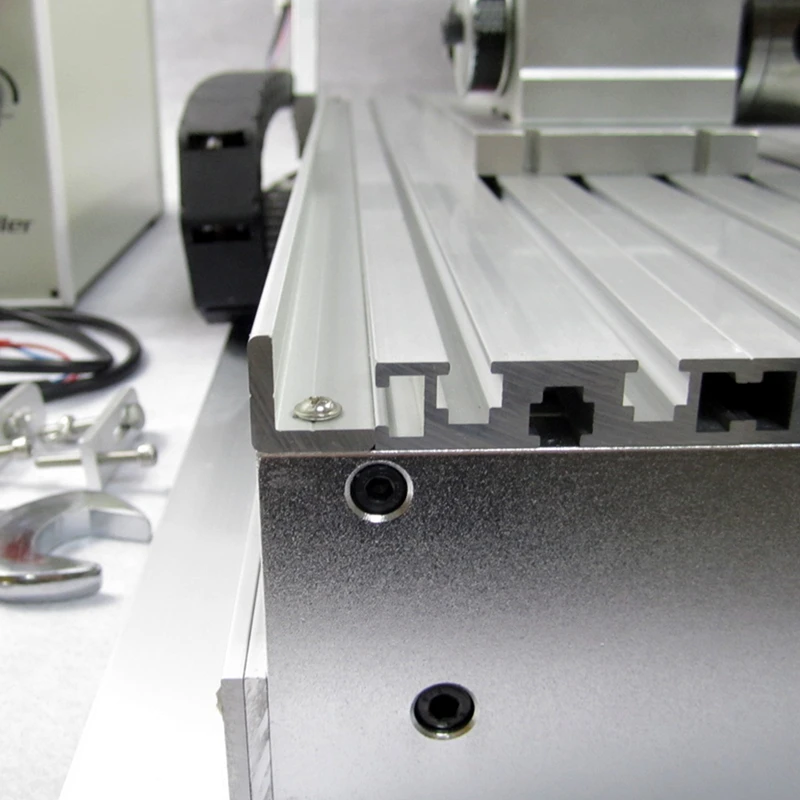

Rack material:	6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area:	600X400mm

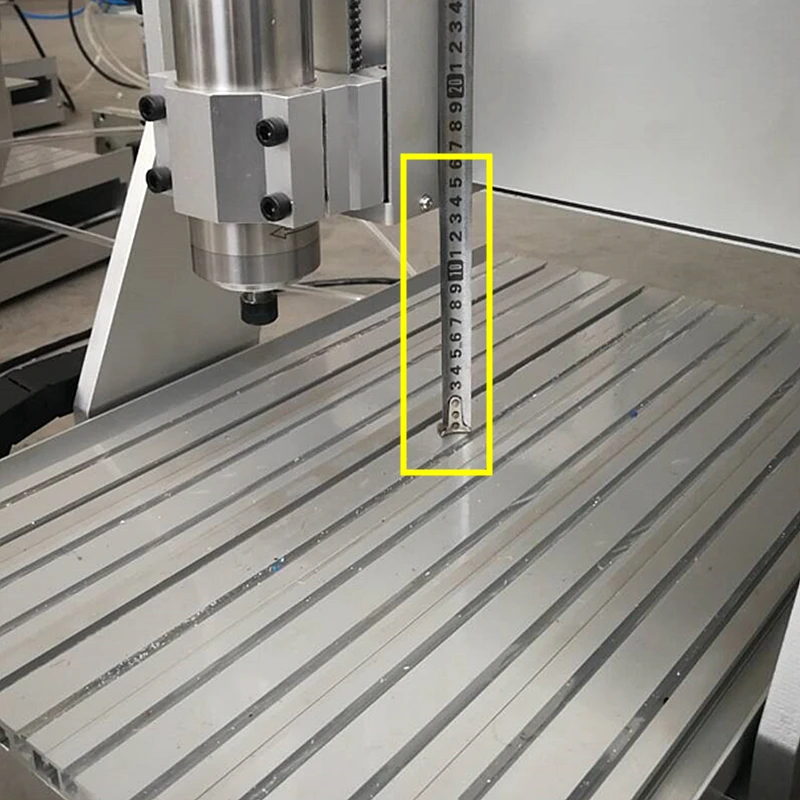

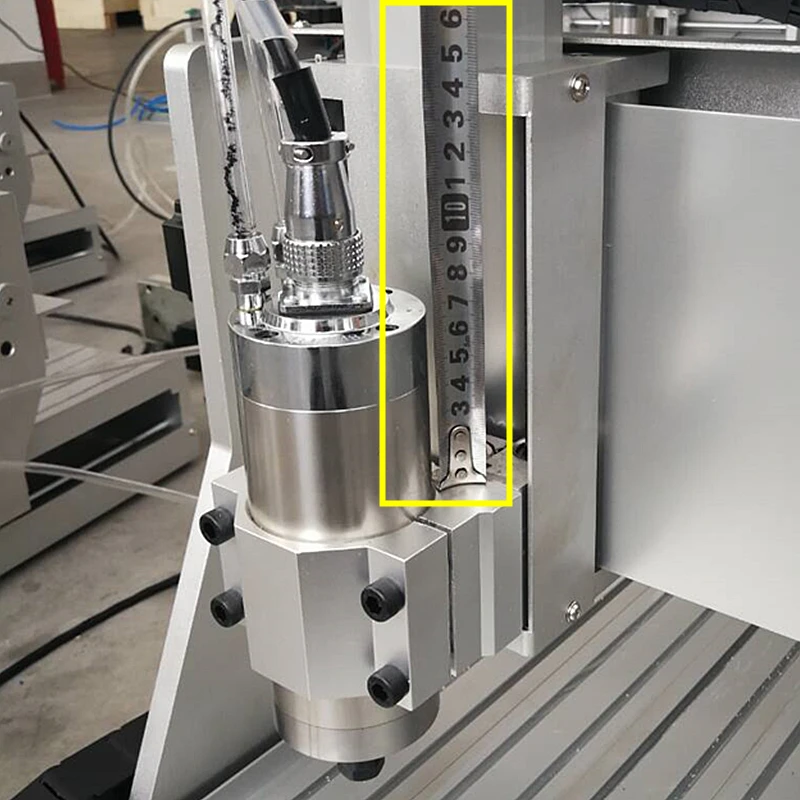

Z-Axis Stroke:	130mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness:	≤130mm
Rail type:	Chromeplate shaft + Linear Bearings, Surface hardening 61HRC
Type of screw:	Ball screw 1605, Pitch 5mm
Spindle motor:	VFD water cooling spindle , 0-24000r/min
Collet type:	ER11(0.8KW 1.5KW) 3.175mm Collet & ER20(2.2KW), 6mm Collet
Stepper motor and drive:	two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.
Maximum operating speed:	4000mm/min (Engraving speed : 300-3000mm/min)
Repeat positioning Accuracy:	0.03mm
Software Compatability:	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt

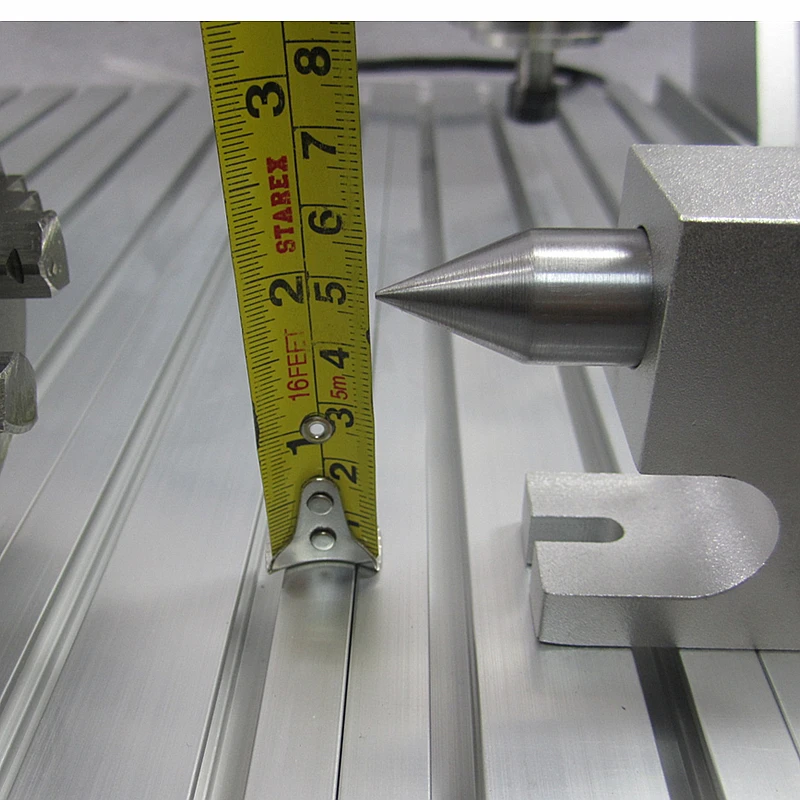

Rotation Axis (4^th Axis) Description:	Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type two phase 4 line Positioning accuracy: 0.075 °
