LS-B5L Custom Manual 5L Plastic PET Jar Bottle Making Machine Big Mouth PET Jar Can Blow Moulding Machine Factory 100ML to 7L

ر.س25,894.13

Qty:
Product Description

LONES MACHINERY was established in 2014. It is a professional manufacturer and exporter specializing in the design, manufacture and sales of semi automatic pet blow molding machine, full automatic pet bottle making machine and pet bottle molds; and provides PET One-stop solutions for a series of products such as PET preform moulds and plastic cap molds; in order to meet the needs of customers in different countries and regions, we continue to update processing equipment, improve processing accuracy and optimize machine design; the factory runs synchronously with production and management, greatly Improves the timeliness of manufacturing equipment; all our equipment meets international quality standards and is greatly appreciated all over the world.

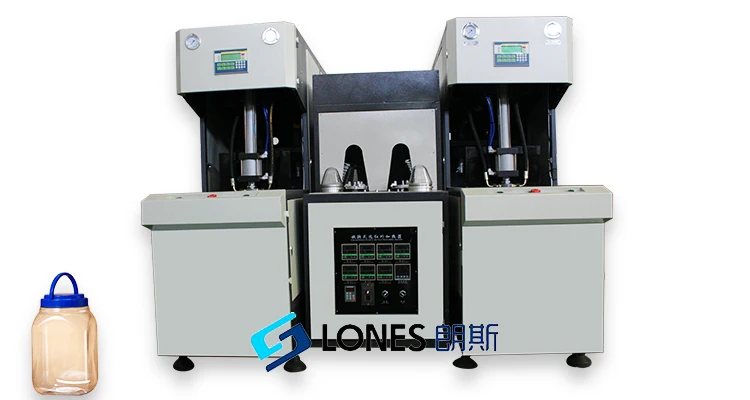

LS-B5L 1oven 2 blower PET jar MACHINE
THEORETICAL OUTPUT
600BPH
HEATING CAPACITY
10KW
MAX NECKSIZE
150MM
MAX BOTTLE VOLUME
5L  1+1-CAVITY
BLOWING PRESSURE
≦3.0MPA
MOTION PRESSURE
≦1.0MPA
MAX D*H
Φ260*H430mm
MOULD THINKNESS
120-500MM

Main Features

1.The machine has high stability, low noise and simple operation, requiring only one person to operate
2.Adopting double crank mold locking structure with high -hardness cast iron,the clamping force is large and durable
3.Infrared rotary oven to heat the preform ,independent temperature control and adjustable lamp for heating evenly and efficiently
4.Small size, low energy consumption and modular design makes maintenance and mold replacement easy
5.Suitable for blowing various shapes of oil bottles, wide-mouth bottles, medicine bottles, daily chemical bottles, special-shaped bottles etc

Detailed Images

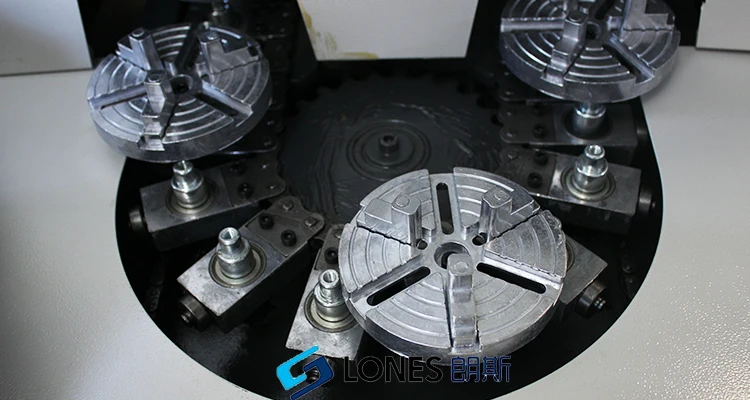

custom oven and holders for big mouth jar Famous PLC

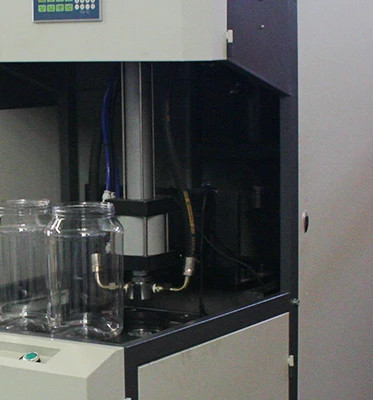

famous air cylinder ,quality reliable
Customized bottle molds available in a variety of materials
