LS-B3L -4 Cavity 1800BPH Semi Auto Pet Bottle Blowing Machine 10ML to 3L Water Juice Beverage Manual Pet Bottle Making Machine

ر.س21,306.50

Qty:
Product Description

LONES MACHINERY  was established in 2014. It is a professional manufacturer and exporter specializing in the design, manufacture and sales of semi automatic pet blow molding machine, full automatic pet bottle making machine and pet bottle molds; and provides PET One-stop solutions for a series of products such as PET preform moulds and plastic cap molds; in order to meet the needs of customers in different countries and regions, we continue to update processing equipment, improve processing accuracy and optimize machine design; the factory runs synchronously with production and management, greatly Improves the timeliness of manufacturing equipment;all our equipment meets international quality standards and is greatly appreciated all over the world.


LS-B3L 1oven 2 blowers pet bottle machine
THEORETICAL OUTPUT
1800BPH ( 500ml )
HEATING CAPACITY
13KW
MAX NECKSIZE
50MM
MAX BOTTLE VOLUME
3L  -4CAVITY
OPEN MOLD STROKE
220MM
BLOWING PRESSURE
≦3.0MPA
MOTION PRESSURE
≦1.0MPA
MAX D*H
Φ100×H340mm
MOULD THINKNESS
120-250MM
MACHINE SIZE
1.67×0.65×1.7M/1.75×0.75×1.5M
MACHINE WEIGHT
1.5T

Main Features

1.Micro PLC controller is used to ensure stable and accurate machine operation
2.Adopting double crank mold locking system enables faster and stable mould locking
3.Infrared rotary oven to heat the preform ,independent temperature control for heating evenly and efficiently
4.Sturdy and durable structure, small size with economic investment
5.Sturdy and durable structure, small size, low energy consumption, economic investment and low maintenance costs

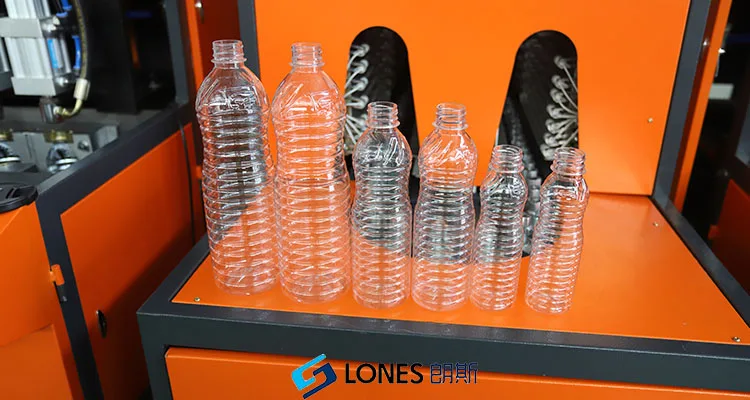

6.Suitable for blowing various shapes of water bottles, wine bottles, oil bottles, hot filling juice bottles, special-shaped bottles etc

Detailed Images
Customizable language Precision temperature controller, constant temperature

English French Russian Spanish etc.

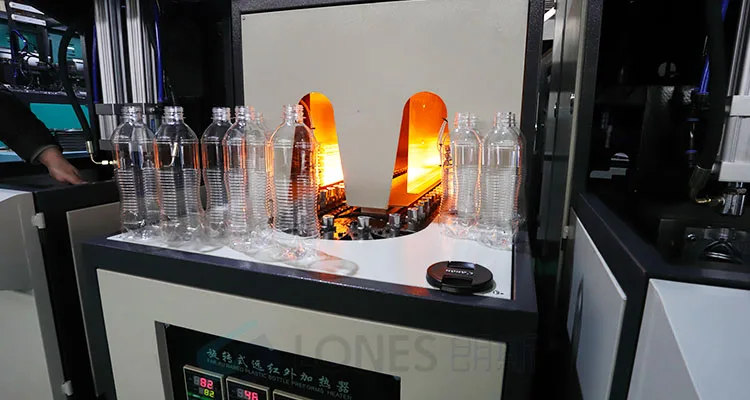

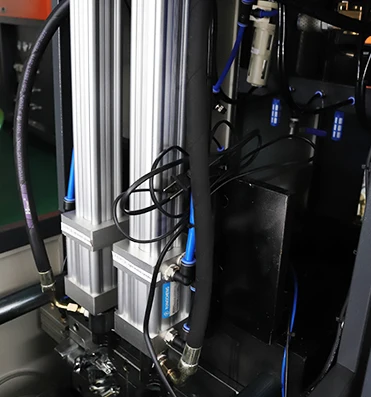

Famous brand cylinder, reliable quality Rotary oven, high heating efficiency
