LONES MACHINERY was established in 2014. It is a professional manufacturer and exporter specializing in the design, manufacture and sales of semi automatic pet blow molding machine, full automatic pet bottle making machine and pet bottle molds; and provides PET One-stop solutions for a series of products such as PET preform moulds and plastic cap molds; in order to meet the needs of customers in
different countries and regions, we continue to update processing equipment, improve processing accuracy and optimize machine design; the factory runs synchronously with production and management, greatly Improves the timeliness of manufacturing equipment; all our equipment meets international quality standards and is greatly appreciated all over the world.

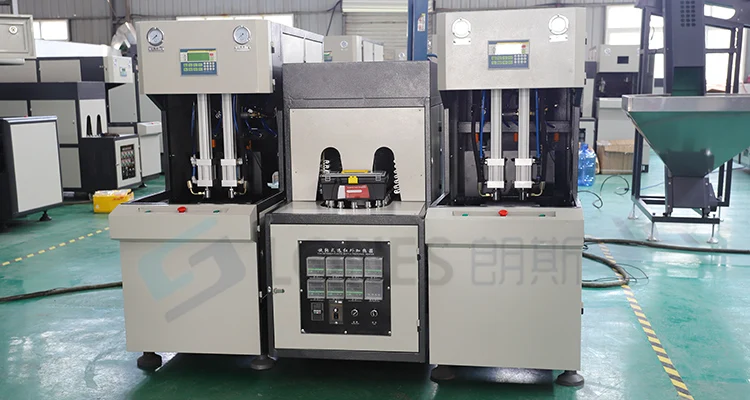

LS-B3L PET BOTTLE MACHINE AND AUXILIARY MACHINE PARAMETER |
||||||
THEORETICAL OUTPUT
|
1000BPH ( 500ml )
|
|||||
HEATING CAPACITY
|
8KW
|
|||||
MAX BOTTLE VOLUME
|
3L 2-CAVITY
|
|||||
BLOWING PRESSURE
|
≦3.0MPA
|
|||||
MOTION PRESSURE
|
≦1.0MPA
|
|||||
MAX D*H
|
Φ95*H320MM
|
|||||
MOULD THINKNESS
|
120-250MM
|


Main Features
1)Especially used to make PET bottle volume from 0.1L to 3L (2cavity).
2)Production of 500ML bottles with 2cavity mould ,the output is 800BPH.
3) Infrared lamp heater with independent temperature controller to ensure the preform heated well.
4) The oven with water cooling and air cooling system.

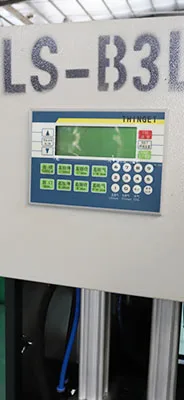

5) Advanced PLC control system, the accuracy up to 0.01 seconds.
6)Easy to adjustment, replacement, maintenance ,just need 1 person to operate.

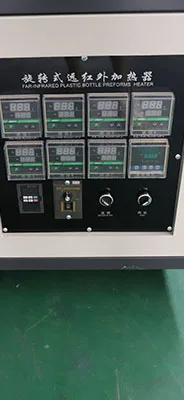

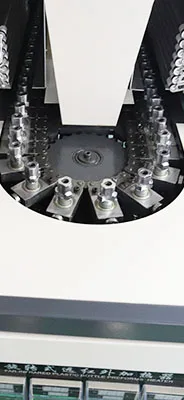

Rotary oven Precision temperature controller
