LS-B3L 1000BPH 2 Cavity Semi Automatic PET Bottle Blowing Machine for Big Mouth PET Candy Jar 10Ml to 3L PET Bottle Machine

ر.س21,312.20

Qty:
Product Description

LONES MACHINERY was established in 2014. It is a professional manufacturer and exporter specializing in the design, manufacture and sales of semi automatic pet blow molding machine, full automatic pet bottle making machine and pet bottle molds; and provides PET One-stop solutions for a series of products such as PET preform moulds and plastic cap molds; in order to meet the needs of customers in different countries and regions, we continue to update processing equipment, improve processing accuracy and optimize machine design; the factory runs synchronously with production and management, greatly Improves the timeliness of manufacturing equipment; all our equipment meets international quality standards and is greatly appreciated all over the world.


LS-B3L PET jar BLOWING MACHINE AND AUXILIARY MACHINE PARAMETER
THEORETICAL OUTPUT
800BPH ( 500 PET jar )
HEATING CAPACITY
9KW
MAX BOTTLE VOLUME
3L  1+1-CAVITY
BLOWING PRESSURE
≦3.0MPA
MOTION PRESSURE
≦1.0MPA
MAX D*H
Φ100*H340mm
MOULD THINKNESS
120-450MM

Main Features

1.Micro PLC controller is used to ensure stable and accurate machine operation
2.Adopting double crank mold locking system enables faster and stable mould locking
3.Infrared rotary oven to heat the preform ,independent temperature control for heating evenly and efficiently
4.Sturdy and durable structure, small size with economic investment
5.Suitable for blowing various shapes of water bottles, wine bottles, big mouth bottles, hot filling juice bottles, special-shaped bottles etc

Detailed Images

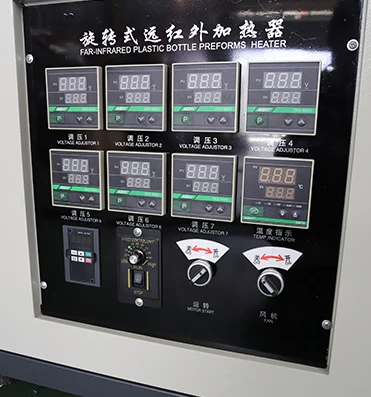

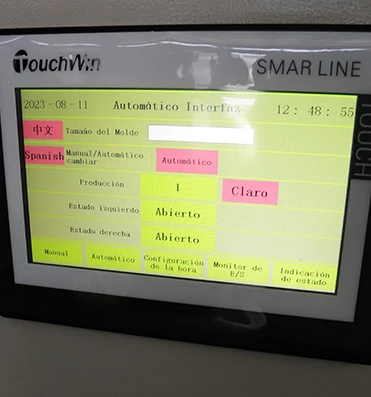

Famous temperature controller, Micro PLC & touch screen, customized language

precise temperature control and constant temperature

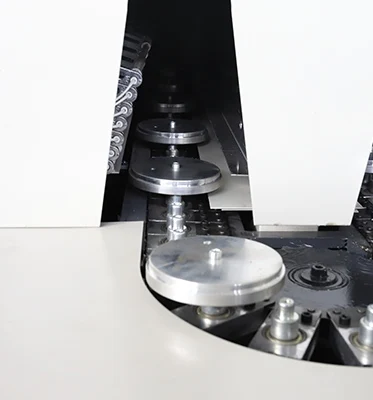

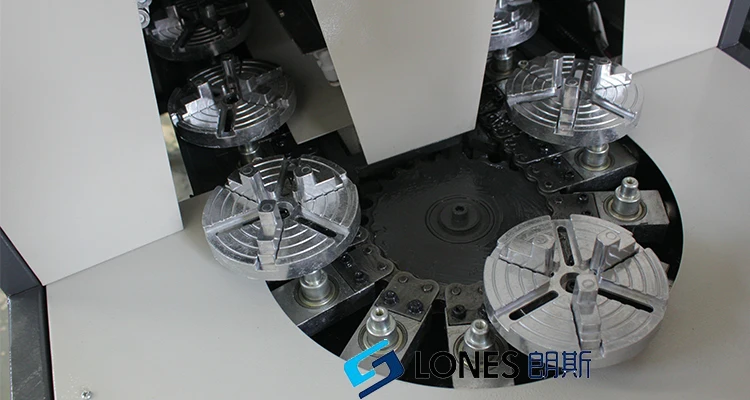

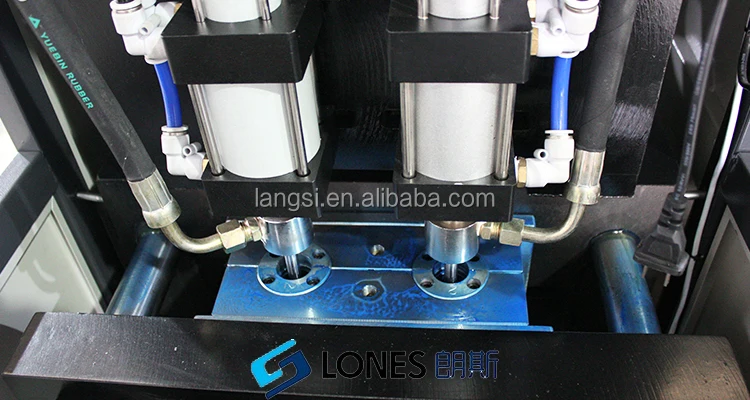

Customized preform holder according to bottle neckszie Famous brand cylinder, reliable quality
