LS-B10L Manual Plastic PET Bottle Making Machine Semi Automatic 5L to 12L Oil PET Bottle Blowing Machine Blower Factory 352BPH
LS-B10L Manual Plastic PET Bottle Making Machine Semi Automatic 5L to 12L Oil PET Bottle Blowing Machine Blower Factory 352BPH - Image 2
LS-B10L Manual Plastic PET Bottle Making Machine Semi Automatic 5L to 12L Oil PET Bottle Blowing Machine Blower Factory 352BPH - Image 3
LS-B10L Manual Plastic PET Bottle Making Machine Semi Automatic 5L to 12L Oil PET Bottle Blowing Machine Blower Factory 352BPH - Image 4
LS-B10L Manual Plastic PET Bottle Making Machine Semi Automatic 5L to 12L Oil PET Bottle Blowing Machine Blower Factory 352BPH - Image 5
LS-B10L Manual Plastic PET Bottle Making Machine Semi Automatic 5L to 12L Oil PET Bottle Blowing Machine Blower Factory 352BPH - Image 6

LS-B10L Manual Plastic PET Bottle Making Machine Semi Automatic 5L to 12L Oil PET Bottle Blowing Machine Blower Factory 352BPH

ر.س23,603.14

Qty:
Print Send to a friend
SKU: 212102514019181 Categories: ,
Product Description


LONES MACHINERY was established in 2014. It is a professional manufacturer and exporter specializing in the design, manufacture and sales of semi automatic pet blow molding machine, full automatic pet bottle making machine and pet bottle molds; and provides PET One-stop solutions for a series of products such as PET preform moulds and plastic cap molds; in order to meet the needs of customers in different countries and regions, we continue to update processing equipment, improve processing accuracy and optimize machine
design; the factory runs synchronously with production and management, greatly Improves the timeliness of manufacturing equipment;all our equipment meets international quality standards and is greatly appreciated all over the world.


LS-B10L semi automatic plastic bottle blowing machine
THEORETICAL OUTPUT
350bph for 10L bottle
HEATING CAPACITY
12KW
MAX BOTTLE VOLUME
10L  1-cavity
BLOWING PRESSURE
≦3.0MPA
MOTION PRESSURE
≦1.0MPA
MAX D*H
Φ280*H430mm
MOULD THINKNESS
260-400mm

Main Features

1.The machine has high stability, low noise and simple operation, requiring only one person to operate
2.Adopting double crank mold locking structure with high -hardness cast iron,the clamping force is large and durable
3.Infrared rotary oven to heat the preform ,independent temperature control and adjustable lamp for heating evenly and efficiently
4.Small size, low energy consumption and modular design makes maintenance and mold replacement easy
5.The air circuit is divided into two parts: action and blowing, which can provide stable high pressure blowing of large volume and thick-walled bottles
6..Suitable for blowing various shapes of water bottles, wide-mouth bottles, PMMA lamps, oil bottles and large volume thick walled bottles etc

Detailed Images

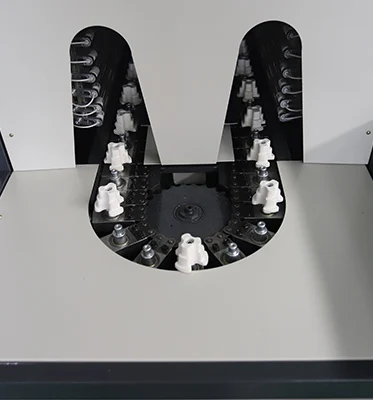

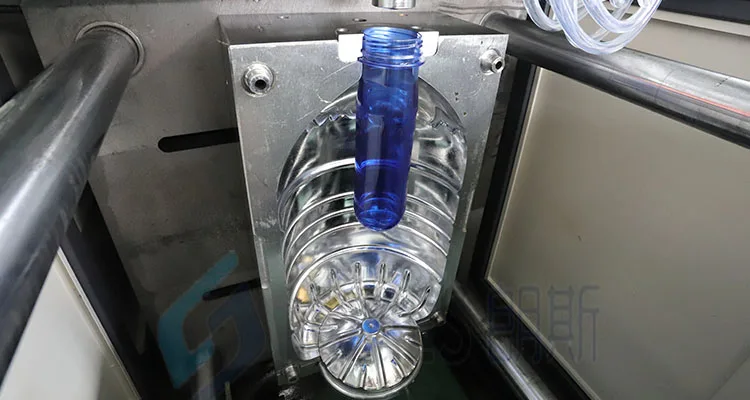

Infrared rotary oven to heat the preform ,independent Customize bottle blowing molds according to

temperature control and adjustable lamp for
pictures or samples
heating evenly and efficiently
Mirror polishing
Famous brand temperature controller and speed regulator, Touch screen available, customizable operating language

reliable quality
