LS-B10L Manual Pet Bottle Blow Molding Machine 7L to 12L Disposable Water Bottle Semi Automatic PET Bottle Machine Factory 352BP
LS-B10L Manual Pet Bottle Blow Molding Machine 7L to 12L Disposable Water Bottle Semi Automatic PET Bottle Machine Factory 352BP - Image 2
LS-B10L Manual Pet Bottle Blow Molding Machine 7L to 12L Disposable Water Bottle Semi Automatic PET Bottle Machine Factory 352BP - Image 3
LS-B10L Manual Pet Bottle Blow Molding Machine 7L to 12L Disposable Water Bottle Semi Automatic PET Bottle Machine Factory 352BP - Image 4
LS-B10L Manual Pet Bottle Blow Molding Machine 7L to 12L Disposable Water Bottle Semi Automatic PET Bottle Machine Factory 352BP - Image 5
LS-B10L Manual Pet Bottle Blow Molding Machine 7L to 12L Disposable Water Bottle Semi Automatic PET Bottle Machine Factory 352BP - Image 6

LS-B10L Manual Pet Bottle Blow Molding Machine 7L to 12L Disposable Water Bottle Semi Automatic PET Bottle Machine Factory 352BP

ر.س23,603.14

Qty:
Print Send to a friend
SKU: 212102508019181 Categories: ,
Product Description


LONES MACHINERY was established in 2014. It is a professional manufacturer and exporter specializing in the design, manufacture and sales of semi automatic pet blow molding machine, full automatic pet bottle making machine and pet bottle molds; and provides PET One-stop solutions for a series of products such as PET preform moulds and plastic cap molds; in order to meet the needs of customers in different countries and regions, we continue to update processing equipment, improve processing accuracy and optimize machine design; the factory runs synchronously with production and management, greatly Improves the timeliness of manufacturing equipment; all our equipment meets international quality standards and is greatly appreciated all over the world.

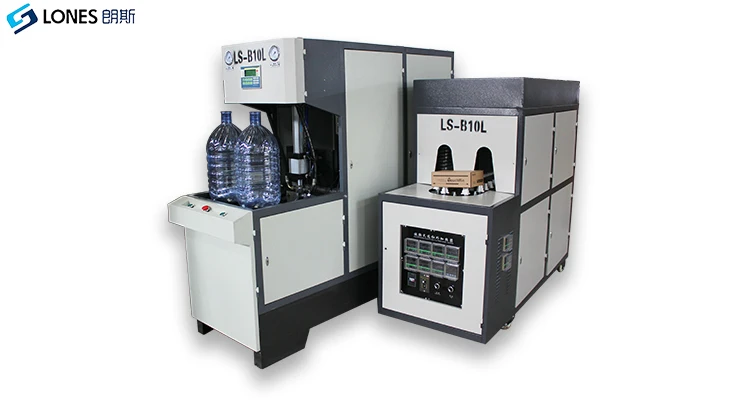

 LS-B10L semi automatic pet blowing machine
THEORETICAL OUTPUT
352bph for 10L bottle
HEATING CAPACITY
12KW
MAX BOTTLE VOLUME
12L  1-cavity
BLOWING PRESSURE
≦3.0MPA
MOTION PRESSURE
≦1.0MPA
MAX D*H
Φ260*H430mm
MOULD THINKNESS
260-450mm

Main Features

1.The machine has high stability, low noise and simple operation, requiring only one person to operate
2.Adopting double crank mold locking structure with high -hardness cast iron,the clamping force is large and durable
3.Infrared rotary oven to heat the preform ,independent temperature control and adjustable lamp for heating evenly and efficiently
4.Small size, low energy consumption and modular design makes maintenance and mold replacement easy
5.Suitable for blowing various shapes of oil bottles, wide-mouth bottles, medicine bottles, daily chemical bottles, special-shaped thick wall bottles etc

Detailed Images
colorful Touch screen customizable language Famous brand temperature controller,

precise temperature control and constant temperature

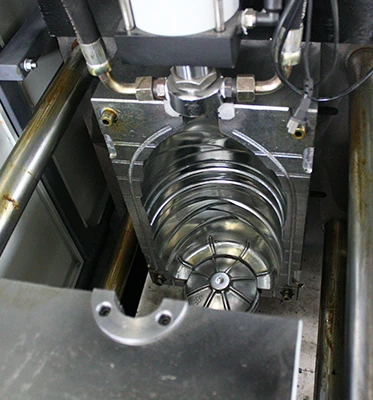

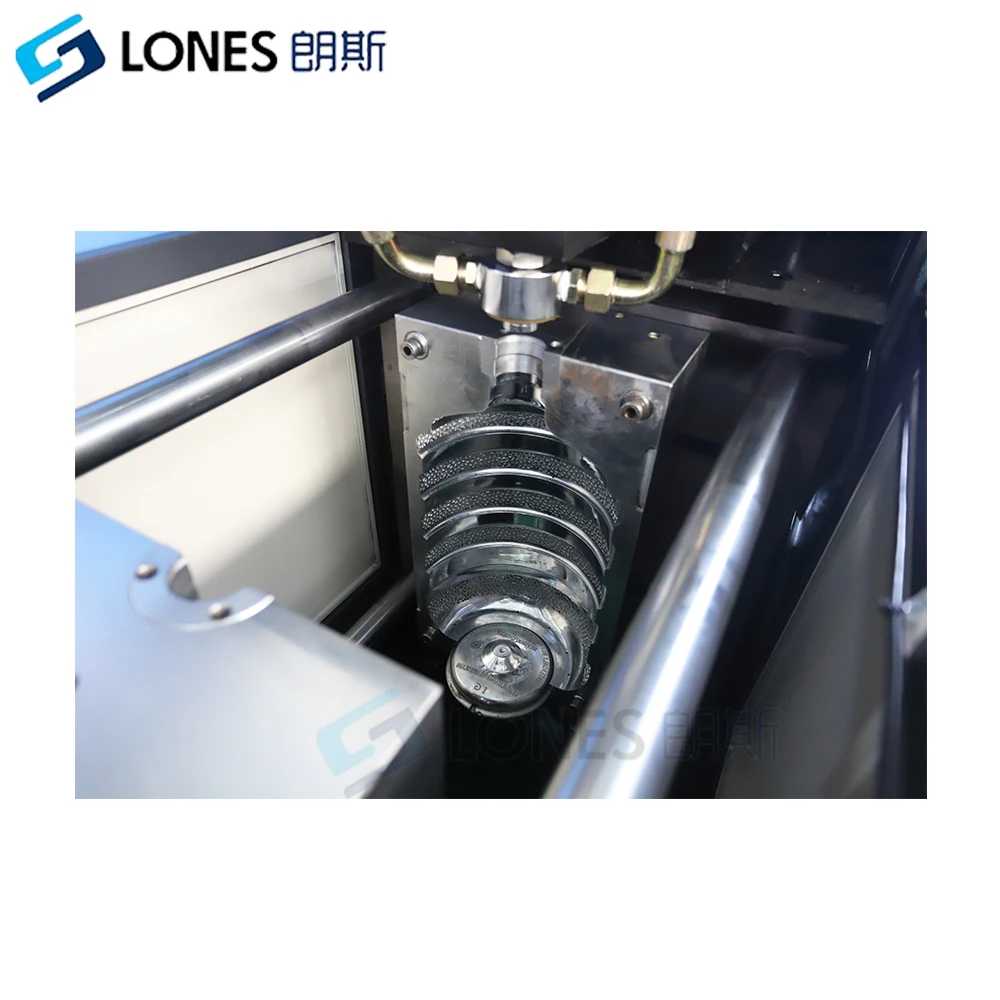

Rotary constant oven with adjustable lamp to heat preform Customized bottle molds

high efficiency and save energy available in various materials
