LS-A6 High Quality Fully Automatic PET Stretch Blow Moulding Machine 100ML to 2L Juice/tea/detergent/alcoholic Bottle 7000BPH

ر.س391,095.81

Qty:
Product Description

LONES MACHINERY was established in 2014. It is a professional manufacturer and exporter

specializing in the design, manufacture and sales of semi automatic pet blow molding machine, full automatic pet bottle making machine and pet bottle molds; and provides PET One-stop solutions for a series of products such as PET preform moulds and plastic cap molds; in order to meet the needs of customers in different countries and regions, we continue to update processing equipment,improve processing accuracy and optimize machine design; the factory runs synchronously with production and management, greatly Improves the timeliness of manufacturing equipment; all our equipment meets international quality standards and is greatly appreciated all over the world.

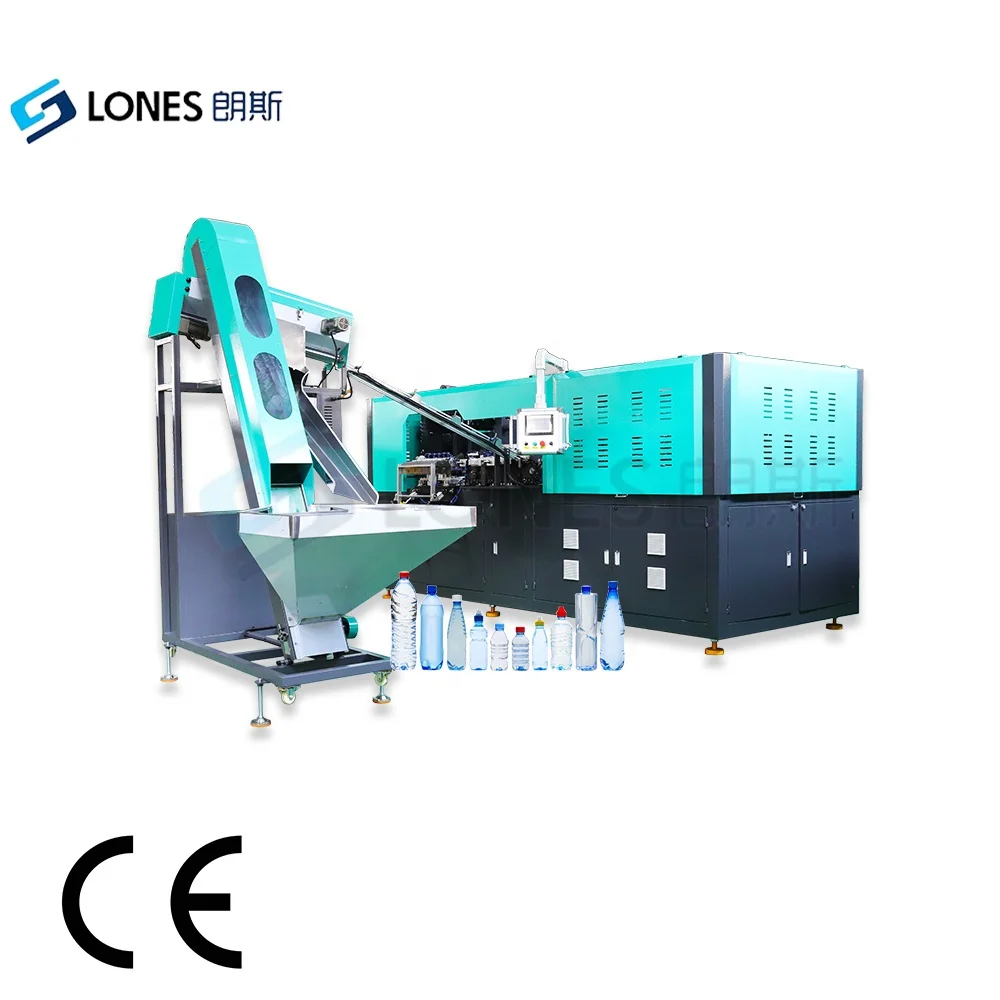

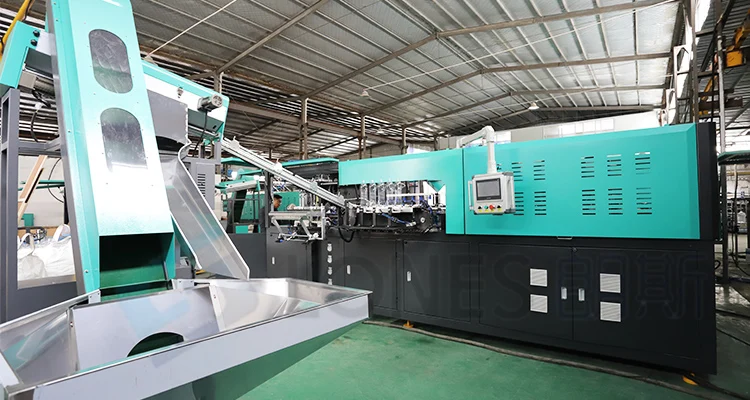

                                                   LS-A6 FULL AUTOMATIC PET BLOW MOULDING MACHINE
THEORETICAL OUTPUT
6500-8500BPH for 500ml bottle

Actual output depends on bottle shape and preform quality.

Above technical parameters are subject to continual update,please take the real machine as the base.
MAX.  CONTAINER VOLUME
2L
MAX.NECK DIAMETER
45MM
MAX.CONTAINER DIAMETER
100MM
MAX.CONTAINER HEIGHT
340MM
NUMBER OF CAVITY
6CAVITY
TOTAL POWER
55KW
USE POWER
45KW
WORKING PRESSURE
1.0MPA
LOW  PRESSURE CONSUMING
1600L/MIN
BLOWING  PRESSURE
≤3.5MPA
HIGH PRESSURE CONSUMING
3600L/MIN
MACHINE WEIGHT
5500KGS

Main Features for full-automatic PET blow moulding machine

1.The intelligent microcomputer control system is used to ensure the accuracy and stability of the equipment operation and can be customized in French, Russian, Spanish and other operating languages


2.The preform quickly rotation during the revolution inside the oven,making the PET/PP preform heating more uniform

stable in final bottle quality


3. Non-pause rotation and constant temperature control oven to heat preforms, saving more than 30% energy


4.Servo motor drive ensures stable running, precision, energy saving and low maintenance cost


5.The machine is equipped with automatic alarm (show the cause of the alarm) and intelligent protection devices to easy maintenance and ensure safe operation

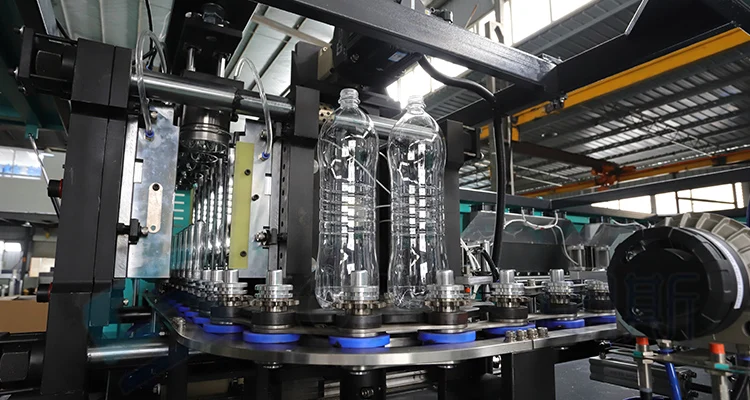

6. Special blowing 100ML to 2000ML detergent bottles, sparkling water bottles, alcoholic beverage bottles, milk bottles, cosmetic bottles etc

Detailed Images

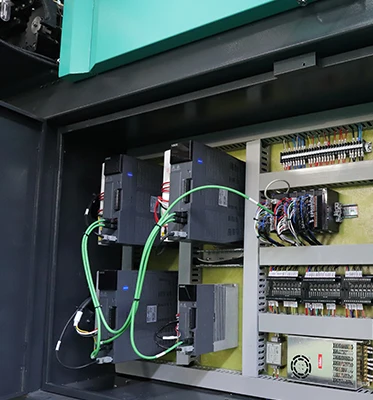

Servo positioning servo drive, stable and reliable operation

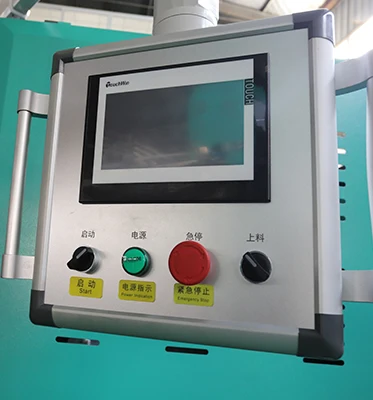

touch type color PLC control system easy to operate
Modular design saves space and effectively reduces maintenance and parts replacement costs

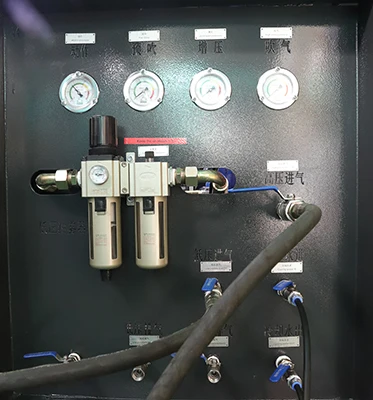

The machine comes with a pressure reducing device save costs

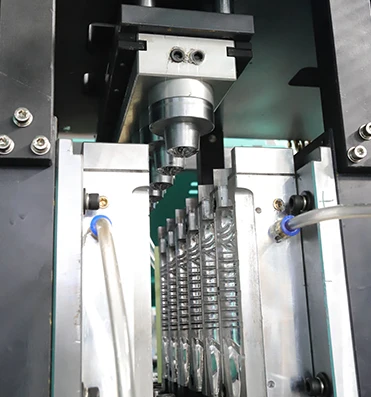

Customized bottle molds, we can provide P20 steel,7075# aluminum,S136steel,45#steel and Stainless steel
World-class CNC machining parts
