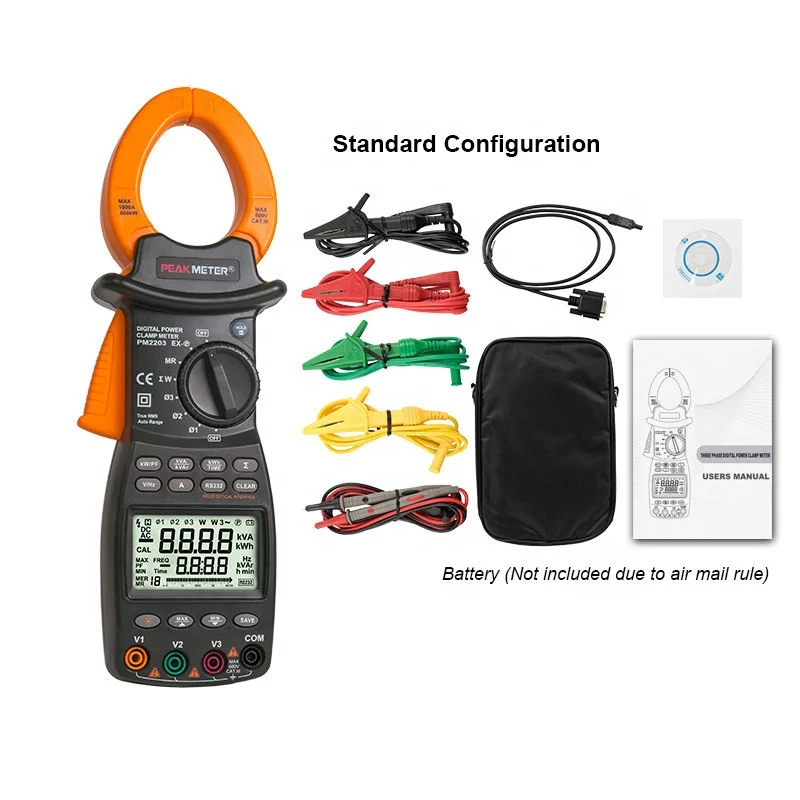

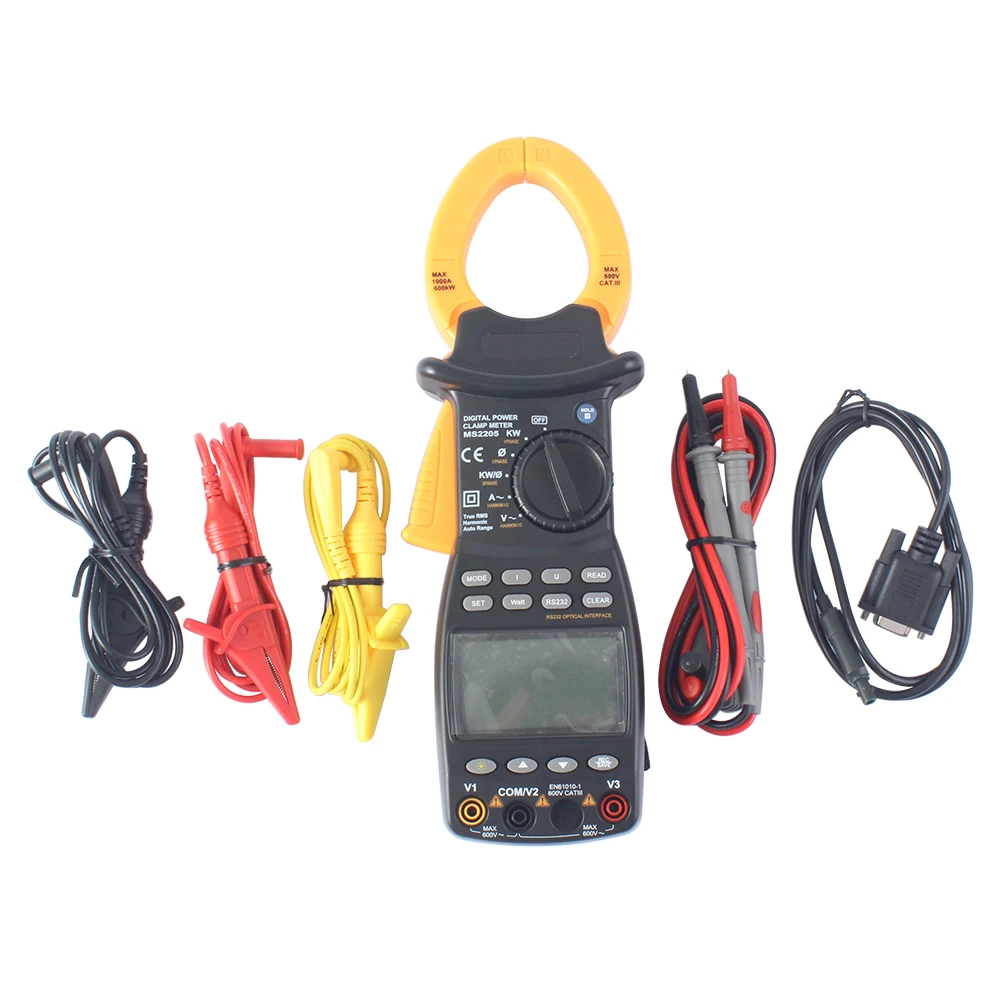

low price three phase true RMS harmonic power factor clamp meter PM2205 with data logging
|
AC Voltage |
0.1~600V |
±(1.2%+5) |
|
AC Current |
0.1A~1000A |
±(2.0%+5) |
|
Active Power |
0.1kW~600kW |
±(3.0%+5) |
|
Apparent power |
0.1kVA~600kVA |
±(3.0%+5) |
|
Reactive power |
0.1kVAr~600kVAr |
±(3.0%+5) |
|
Power Factor |
0.3~1 |
±(2.0%+2) |
|
Harmonic Measurement 45Hz~65Hz (fundamental frequence) |
Harmonic NO.1 |
±(3.0%+10) |
|
Harmonic NO.2-6 |
±(3.5%+10) |
|
|
Harmonic NO.7-8 |
±(4.5%+10) |
|
|
Harmonic NO.9-10 |
±(5.0%+10) |
|
|
Harmonic NO.11-15 |
±(7.0%+10) |
|
|
Harmonic NO.16-20 |
±(10%+10) |
1.Auto power off,auto-range,data hold, back light
2.100 groups data logging and recall
3. Low batter indication
4. True RMS with RS232
PACKAGE:
For small items, we will fully pack with Yellow Tape to protect water.For standard carton we will pack with stretch film and psate with client’s shipping mark mentioning company name,carton number.
DELIVERY TIME:
We have all items in stock, for sample we can send out within 3 working days, for OEM we can send within 35 working days,mosty depends on the quantity and our sales season!
